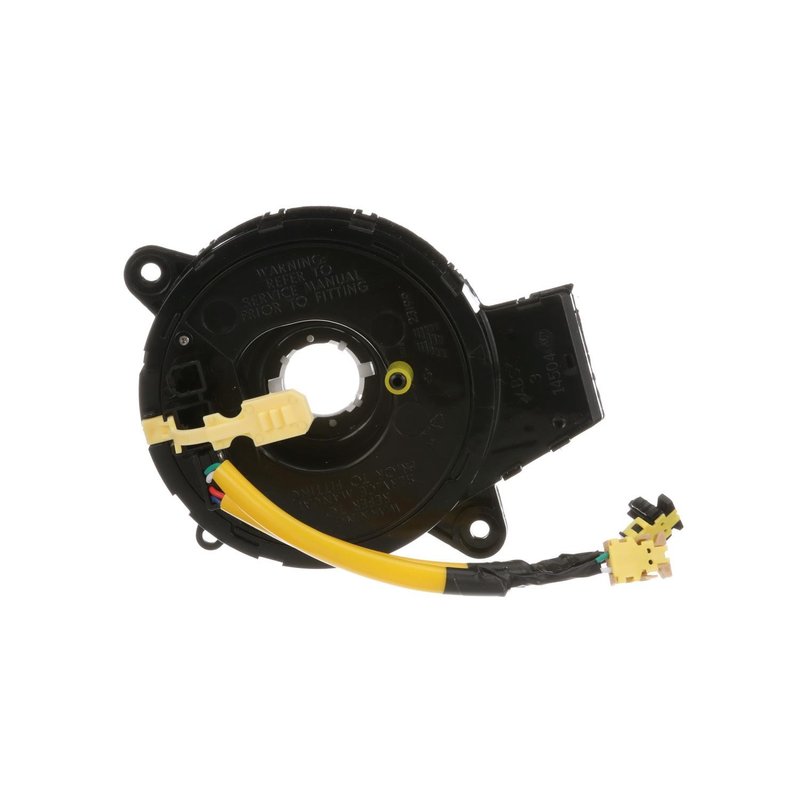

Standard Ignition CSP126 Steering Angle Sensor

Reliable Steering Angle Sensor for Chrysler and Dodge Vehicles

The Standard Ignition CSP126 Steering Angle Sensor is designed to provide accurate steering input data for Chrysler and Dodge models including Caravan, Grand Caravan, Town & Country, and Voyager. This sensor ensures proper communication with your vehicle’s stability control and safety systems.

• Compatible with Chrysler Caravan, Grand Caravan, Town & Country, and Dodge Voyager
• Part number CSP126 for precise identification
• Black color housing with durable construction
• Three rectangular plug-in connectors with mixed female and male terminals
• 20 blade and pin terminals for secure electrical connections
• Operates on 12-volt electrical systems
• Includes four wires with 5-inch (127 mm) length for flexible installation

Detailed Product Description

The Standard Ignition CSP126 Steering Angle Sensor is engineered to deliver accurate steering angle measurements critical for vehicle stability control and anti-lock braking systems. Featuring a black housing and three rectangular plug-in connectors, this sensor includes both female and male connector genders to ensure compatibility with factory wiring harnesses. The sensor’s 20 blade and pin terminals provide reliable electrical contact, supporting a 12-volt system common in Chrysler and Dodge vehicles. With four wires measuring 5 inches in length, installation flexibility is enhanced without the need for additional hardware, which is not included.

Common Applications and Problem Resolution

• Restores proper steering angle input for electronic stability control systems
• Resolves issues with ABS warning lights related to faulty steering sensors
• Corrects erratic or unresponsive steering angle readings
• Eliminates traction control malfunctions caused by sensor failure
• Supports accurate vehicle dynamics for improved safety features

Installation Notes and Tips

Installation of the Standard Ignition CSP126 requires careful handling of the plug-in connectors to avoid damage. Ensure the vehicle’s battery is disconnected before beginning installation to prevent electrical shorts. The sensor’s wire length of 5 inches allows for straightforward connection to the existing wiring harness without modification. No additional hardware is included, so retain original mounting components or source compatible fasteners as needed. Verify connector orientation and terminal engagement to maintain signal integrity.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and fitment. The CSP126 Steering Angle Sensor undergoes rigorous quality control testing to maintain consistency and durability. Warranty coverage details should be confirmed at the point of purchase, as Standard Ignition typically offers limited warranties against defects in material and workmanship.
