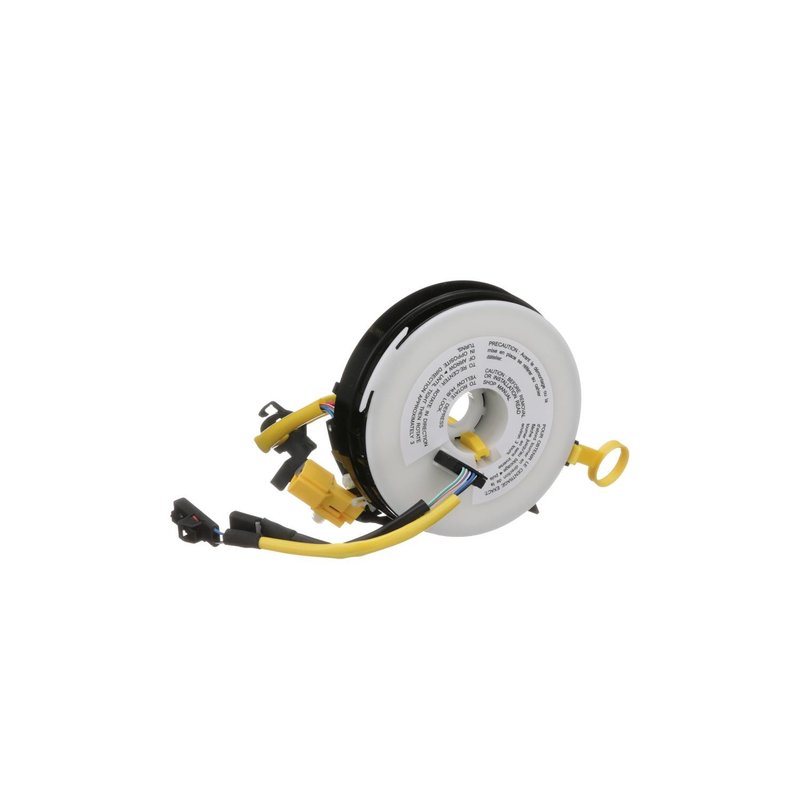

Standard Ignition CSP130 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford Vehicles

The Standard Ignition CSP130 air bag clockspring is designed to maintain a secure electrical connection between the steering wheel and the vehicle’s airbag system. Engineered for select Ford models, this clockspring ensures consistent performance and safety in your vehicle’s air bag system.

• Compatible with Ford Aerostar, Bronco, F-150, F-250, and F-350 models
• Black color housing for durability and corrosion resistance
• Five rectangular connectors with mixed female and male genders for precise fitment
• Ten blade and pin terminals with male and female configurations
• 12-volt electrical rating suitable for standard vehicle systems
• Wire length of 13.25 inches (336.55 mm) with 12 wires for comprehensive connectivity

Detailed Product Description

The Standard Ignition CSP130 air bag clockspring is a critical component in the electrical and air bag system of various Ford trucks and SUVs. Its black housing encases a complex assembly of 12 wires and 10 terminals, including blade and pin types, designed to maintain uninterrupted electrical signals while allowing the steering wheel to turn freely. The clockspring features five rectangular connectors with a combination of female and male genders, ensuring compatibility with the vehicle’s wiring harness. Rated for 12 volts, this clockspring supports the air bag system’s electrical requirements, contributing to reliable airbag deployment and steering wheel control functions.

Common Applications and Issues Addressed

• Restores electrical connection for airbag deployment in Ford F-150 and F-250 models
• Resolves steering wheel control malfunctions in Ford Bronco and Aerostar vehicles
• Eliminates intermittent airbag warning lights caused by faulty clockspring wiring
• Prevents loss of horn and steering wheel button functionality
• Addresses wiring wear and tear from steering wheel rotation

Installation Notes and Tips

When installing the Standard Ignition CSP130 clockspring, ensure the steering wheel is centered and the wheels are straight to avoid damaging the internal ribbon cable. Disconnect the vehicle battery before beginning installation to prevent accidental airbag deployment. Carefully match the connector genders and terminal types to the vehicle’s wiring harness for proper fitment. Avoid forcing connectors to prevent damage to terminals or connectors.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and safety. The CSP130 clockspring undergoes rigorous quality control to maintain electrical integrity and durability. Please refer to Standard Ignition’s warranty policy for specific coverage details.
