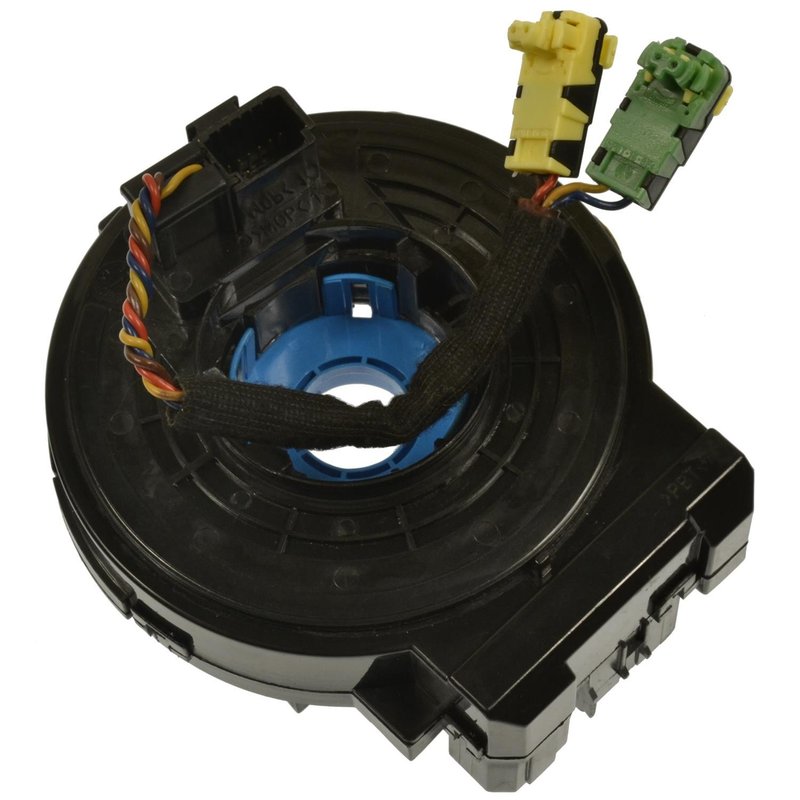

Standard Ignition CSP137 Air Bag Clockspring

Air Bag Clockspring for Hyundai Santa Fe

Standard Ignition CSP137 is an air bag clockspring for select Hyundai Santa Fe models from 2006 through 2012. It maintains the electrical connection between the steering wheel and the vehicle’s air bag system while allowing normal steering wheel rotation.

Key Features

• Black housing for a clean OE-style appearance
• Female and male connectors with rectangular connector shapes
• Blade and pin terminal design for secure electrical contact
• 12-volt electrical component for air bag system service
• Wire length: 5.5 in. (139.7 mm)
• Fits 2007-2012 Hyundai Santa Fe, N/A
• Fits 2006 Hyundai Santa Fe, N/A, from 2/16/06

Detailed Description

Standard Ignition CSP137 is an air bag clockspring built for steering wheel electrical continuity in the Hyundai Santa Fe. This part number, CSP137, is used in air bag system service where the steering wheel must retain a stable electrical path for the supplemental restraint system and related steering wheel functions. The connector layout includes five connectors with female and male terminals, plus blade and pin terminal types for direct integration with the vehicle harness. This part cross-references 8G1100 and 18-2433 for the same application.

For Hyundai Santa Fe repair work, CSP137 supports vehicles built for 2007-2012, plus 2006 models from 2/16/06. Use this clockspring when replacing a worn or damaged steering wheel contact assembly on a Hyundai Santa Fe with air bag system concerns.

Common Issues This Part May Resolve

• Air bag warning light caused by a failed steering wheel contact assembly
• Intermittent steering wheel electrical connection
• Horn or steering wheel control signal loss tied to the clockspring circuit
• Broken internal ribbon or contact path inside the steering column assembly
• Fault codes related to steering wheel air bag circuit continuity

Installation Notes and Tips

Before installation, center the steering wheel and follow the vehicle service procedure for air bag system disconnection and reassembly. Verify connector orientation, terminal engagement, and steering wheel alignment after replacement. Because this is an air bag system component, installation should be performed with proper safety precautions and the battery disconnected according to factory service instructions.

Quality Assurance

Standard Ignition supplies electrical and air bag system components for service replacement applications. CSP137 is built to match the listed Hyundai Santa Fe fitment and connector configuration for direct replacement use.
