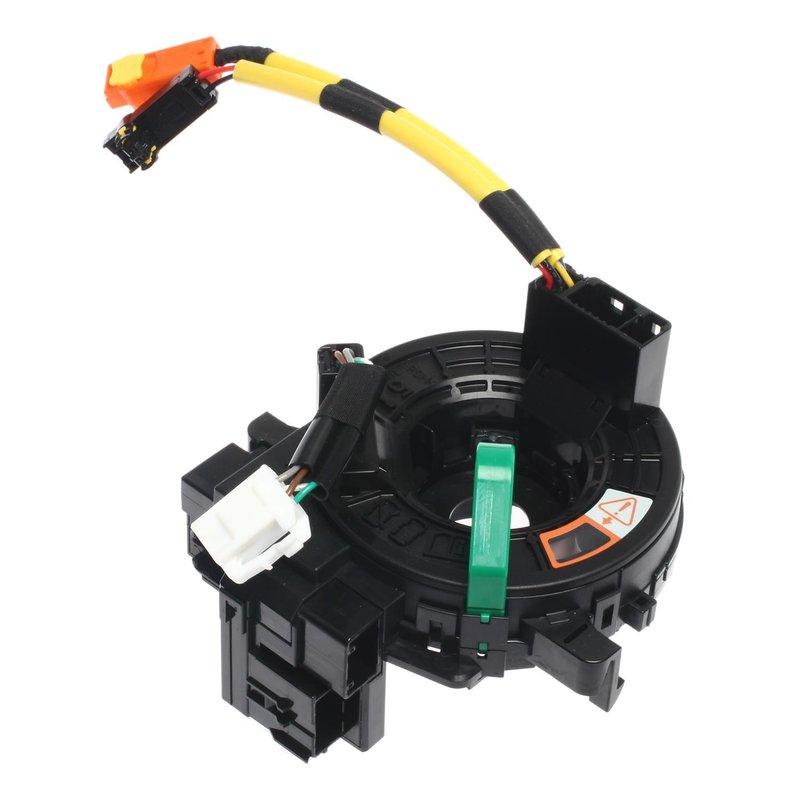

Standard Ignition CSP156 Air Bag Clockspring

Reliable Air Bag Clockspring for Lexus LS460, LS600h, and LX570

The Standard Ignition CSP156 air bag clockspring is designed to maintain a secure electrical connection between the steering wheel and vehicle systems. Engineered for Lexus LS460, LS600h, and LX570 models, this clockspring ensures consistent communication for air bag deployment and steering wheel controls.

• Color/Finish: Black for durability and corrosion resistance
• Connector Gender: Female and male connectors for versatile installation
• Connector Quantity: 7 connectors to support multiple wiring paths
• Connector Shape: Rectangular connectors for secure fitment
• Terminal Gender: Female and male terminals included
• Terminal Quantity: 50 terminals for reliable electrical contact
• Terminal Type: Combination of blade and pin terminals
• Voltage: 12 volts, compatible with standard automotive electrical systems
• Wire Length: 5.25 inches (133.35 mm) for optimal routing
• Wire Quantity: 8 wires to support multiple circuits

Detailed Product Description

The Standard Ignition CSP156 air bag clockspring is a critical component in the air bag system of select Lexus vehicles, including the LS460, LS600h, and LX570. This clockspring facilitates continuous electrical connectivity between the steering wheel and the vehicle’s air bag and control systems, even while the wheel is turning. Featuring both female and male connectors and terminals, it supports a total of seven connectors and fifty terminals, combining blade and pin types for secure and reliable connections. The black finish enhances durability and resistance to wear, while the 5.25-inch wire length allows for proper installation without excess slack.

Common Applications and Issues Addressed

• Restores air bag system communication in Lexus LS460, LS600h, and LX570
• Resolves steering wheel control malfunctions related to wiring faults
• Eliminates intermittent air bag warning lights caused by faulty clockspring
• Prevents loss of horn and cruise control functions linked to steering wheel wiring
• Addresses electrical shorts or open circuits within the air bag system wiring

Installation Notes and Tips

• Ensure battery is disconnected before beginning installation to prevent accidental air bag deployment
• Handle the clockspring carefully to avoid damaging internal wiring
• Align the clockspring properly according to manufacturer specifications to maintain steering wheel centering
• Verify connector and terminal compatibility with vehicle wiring harness before installation
• Test air bag system and steering wheel controls after installation to confirm proper function

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The CSP156 air bag clockspring undergoes rigorous quality control to ensure reliable performance in Lexus LS460, LS600h, and LX570 models. Please refer to Standard Ignition’s warranty policy for specific coverage details.
