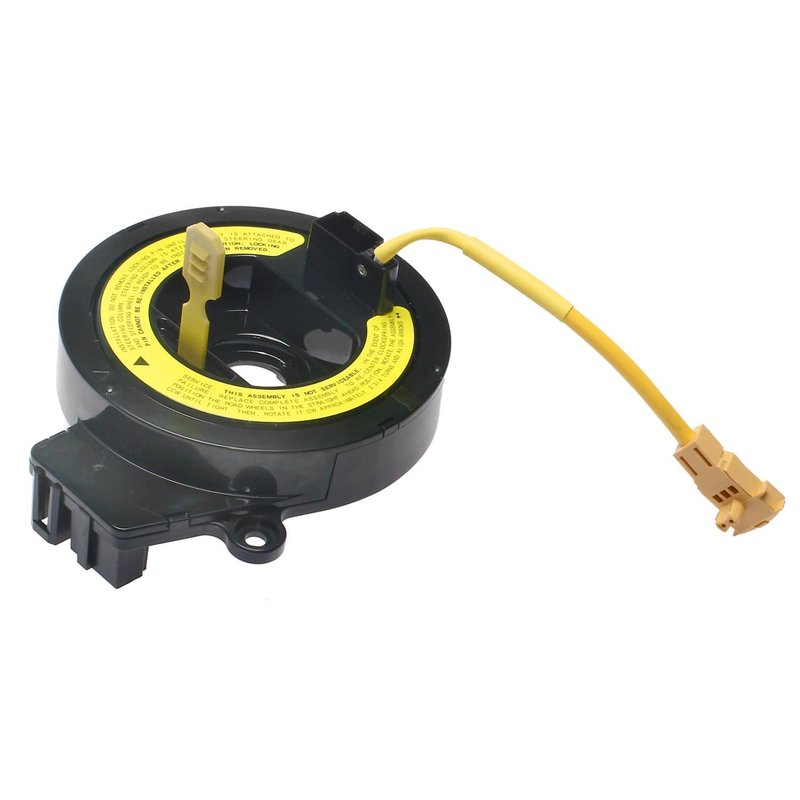

Standard Ignition CSP176 Air Bag Clockspring

Reliable Air Bag Clockspring for Jeep Grand Cherokee

The Standard Ignition CSP176 air bag clockspring is designed specifically for Jeep Grand Cherokee models, ensuring precise electrical connectivity for your vehicle's air bag system. This essential component maintains the connection between the steering wheel and the air bag, allowing for safe and effective deployment.

• Color: Black for easy identification and compatibility
• Connector Gender: Female with 3 rectangular connectors
• Terminal Gender: Female and male terminals included
• Terminal Quantity: 16 blade and pin terminals for secure connections
• Voltage: 12 volts, suitable for standard automotive electrical systems
• Wire Length: 4.25 inches (107.95 mm) with 2 wires for optimal routing
• Contents: Includes the clockspring component only, no additional hardware

Detailed Product Description

The Standard Ignition CSP176 air bag clockspring is engineered to maintain continuous electrical contact between the vehicle’s steering wheel and the air bag system, even while the wheel is turning. Featuring a black housing and a combination of female and male blade and pin terminals, this clockspring supports 12-volt systems typical in Jeep Grand Cherokee vehicles. The three rectangular female connectors and 16 terminals ensure reliable signal transmission for air bag deployment and other steering wheel-mounted controls. With a wire length of 4.25 inches, the wiring is designed for efficient installation and integration within the steering column assembly.

Common Applications and Issues Resolved

• Restores air bag system functionality after clockspring failure
• Eliminates steering wheel control malfunctions related to wiring faults
• Resolves air bag warning light issues caused by broken or damaged clockspring
• Ensures proper electrical connection for horn and other steering wheel electronics
• Prevents intermittent air bag deployment problems due to wiring disconnections

Installation Notes and Tips

When installing the Standard Ignition CSP176 clockspring, ensure the steering wheel is centered and the wheels are straight to avoid damage during assembly. Handle the clockspring carefully to prevent wire damage or pin misalignment. This part does not include installation hardware, so retain original mounting components or acquire compatible hardware separately. Verify connector orientation and terminal seating to maintain secure electrical connections.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The CSP176 clockspring undergoes rigorous quality control to ensure durability and reliable performance in Jeep Grand Cherokee vehicles. Warranty coverage details should be confirmed with the product documentation or supplier.
