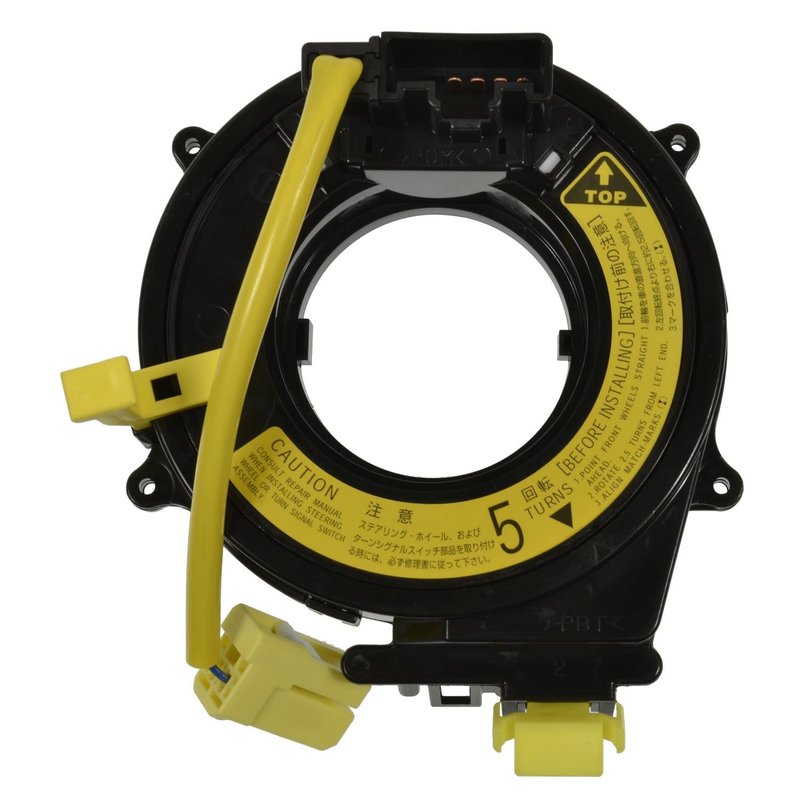

Standard Ignition CSP194 Air Bag Clockspring

Reliable Air Bag Clockspring for Lexus and Toyota Vehicles

The Standard Ignition CSP194 air bag clockspring is designed to maintain a secure electrical connection between the steering wheel and the vehicle’s airbag system. Engineered for select Lexus and Toyota models, this clockspring ensures consistent performance and safety in critical airbag deployment functions.

• Compatible with Lexus and Toyota models including 4Runner, Camry, Celica, IS300, Prius, and RAV4
• Black finish for durability and corrosion resistance
• Features both female and male connectors with a rectangular shape for precise fitment
• Includes 3 connectors and 8 blade-type terminals (male and female)
• Operates on 12-volt electrical systems with 2 wires measuring 4.75 inches (120.65 mm) in length

Detailed Product Features and Specifications

The CSP194 clockspring from Standard Ignition is a critical component in the air bag system, providing a continuous electrical path to the driver’s airbag and steering wheel controls while allowing the wheel to turn freely. Its black color finish offers resistance to wear and environmental factors. The part includes three rectangular connectors with both male and female genders, ensuring compatibility with the vehicle’s wiring harness. The eight blade terminals provide secure and reliable electrical contact. Designed for 12-volt systems, the clockspring includes two wires each measuring approximately 4.75 inches, facilitating proper connection without excess slack.

Compatible Vehicle Applications

• Lexus 4Runner
• Toyota Camry
• Toyota Celica
• Lexus IS300
• Toyota Prius
• Toyota RAV4

Common Issues Addressed by the CSP194 Air Bag Clockspring

• Intermittent or non-functioning driver airbag warning lights
• Loss of electrical connection to steering wheel controls
• Faulty horn operation due to wiring failure
• Steering wheel noise or resistance during rotation
• Airbag system faults related to wiring continuity

Installation Notes and Tips

When installing the Standard Ignition CSP194 clockspring, ensure the steering wheel is centered and the wheels are aligned straight ahead to prevent damage to the clockspring ribbon cable. Handle the part carefully to avoid bending or twisting the internal wiring. Verify connector orientation matches the vehicle’s harness and confirm all terminals are securely seated. This clockspring does not include installation hardware, so retain original fasteners or source appropriate replacements as needed.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The CSP194 clockspring undergoes rigorous quality control to ensure reliable performance in air bag systems. Please refer to Standard Ignition’s warranty policy for coverage details, typically including protection against defects in material and workmanship.
