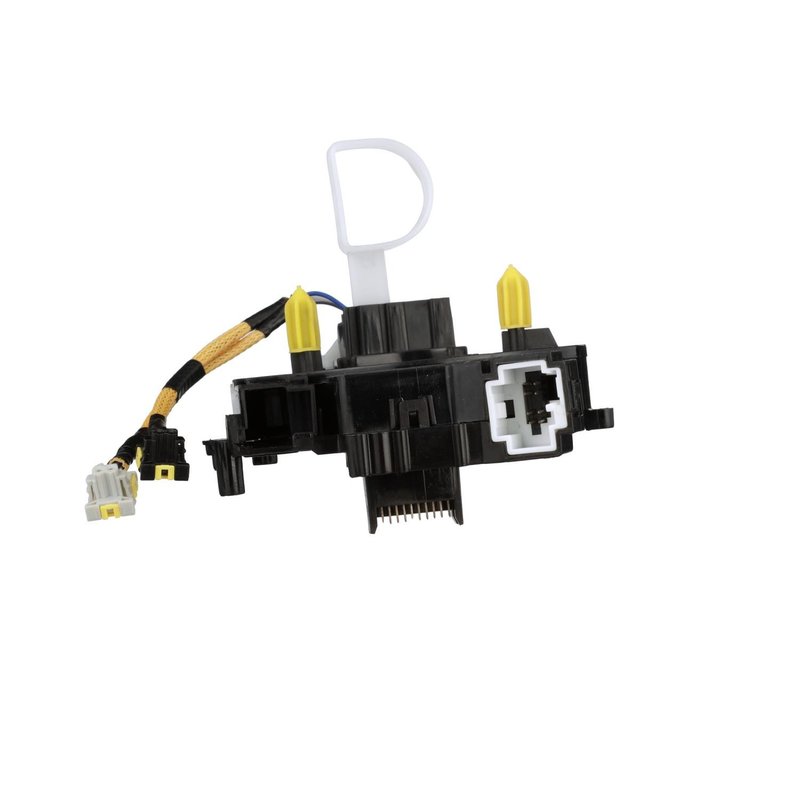

Standard Ignition CSP196 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford F-150 and Lincoln Mark LT

The Standard Ignition CSP196 air bag clockspring is designed to maintain a secure electrical connection between the steering wheel and the vehicle’s airbag system. Engineered for select Ford and Lincoln models, this clockspring ensures consistent performance and safety in your vehicle’s air bag system.

Key Features of Standard Ignition CSP196 Air Bag Clockspring

• Color: Black for easy identification and compatibility
• Connector Gender: Female with 5 rectangular connectors
• Terminal Gender: Both male and female terminals included
• Terminal Quantity: 18 pin-type terminals for reliable electrical contact
• Voltage Rating: 12 volts, suitable for standard automotive electrical systems
• Wire Length: 5.25 inches (133.35 mm) with 4 wires for optimal routing
• Compatible with Ford F-150 and Lincoln Mark LT models

Detailed Description of the CSP196 Air Bag Clockspring

The Standard Ignition CSP196 clockspring is a critical component in the air bag system, providing a continuous electrical connection while allowing the steering wheel to turn. Its black housing and rectangular female connectors are designed to match factory specifications, ensuring seamless integration. With 18 pin-type terminals, this clockspring supports multiple electrical pathways necessary for airbag deployment and steering wheel controls. The 12-volt rating aligns with typical vehicle electrical systems, and the 5.25-inch wire length offers sufficient flexibility for installation within the steering column.

Common Applications and Issues Addressed

• Restores air bag electrical connectivity after steering column repairs
• Resolves air bag warning light issues related to faulty clocksprings
• Ensures proper function of steering wheel-mounted controls and horn
• Prevents intermittent air bag deployment failures due to damaged wiring
• Compatible replacement for worn or damaged clocksprings in Ford F-150 and Lincoln Mark LT

Installation Notes and Tips

When installing the Standard Ignition CSP196 clockspring, ensure the steering wheel is centered and the clockspring is aligned according to manufacturer specifications to avoid damage. Handle the unit carefully to prevent wire or terminal damage. Verify connector orientation and secure connections to maintain proper electrical continuity. This clockspring does not include installation hardware, so retain original mounting components during replacement.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit and function. The CSP196 clockspring undergoes rigorous quality control to ensure reliable performance in Ford F-150 and Lincoln Mark LT vehicles. Please refer to Standard Ignition’s warranty policy for specific coverage details.
