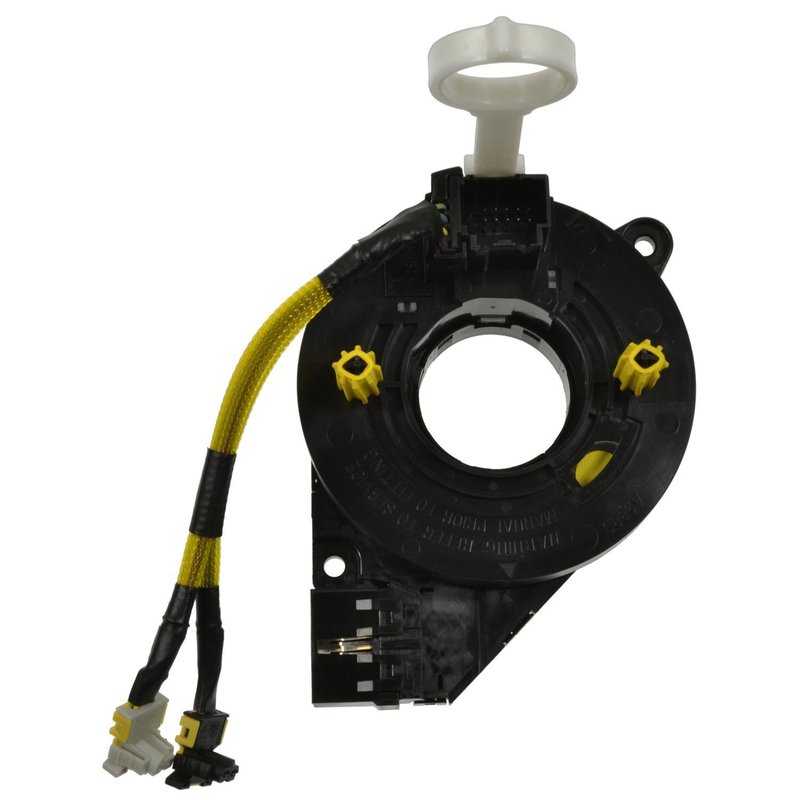

Standard Ignition CSP200 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford F-150

The Standard Ignition CSP200 air bag clockspring is designed to maintain a secure electrical connection between the steering wheel and the vehicle’s airbag system. Engineered specifically for Ford F-150 models, this clockspring ensures consistent performance and safety in your vehicle’s airbag deployment system.

• Compatible with Ford F-150 models
• Part number CSP200 for precise identification
• Black color housing for durability and corrosion resistance
• Three rectangular connectors with both female and male genders
• Four wires with 5.25 inches (133.35 mm) length for optimal fit
• Fourteen pin-type terminals including male and female genders
• Operates at 12 volts, matching vehicle electrical systems

Detailed Product Description

The Standard Ignition CSP200 air bag clockspring is a critical component in the Ford F-150’s airbag system, providing a continuous electrical connection while allowing the steering wheel to turn. This clockspring features a black housing and includes three rectangular connectors with both female and male genders, ensuring compatibility with the vehicle’s wiring harness. It contains fourteen pin-type terminals, split between male and female, to maintain secure and reliable electrical contacts. The four wires, each measuring 5.25 inches (133.35 mm), are designed to fit precisely within the steering column assembly. Operating at 12 volts, this clockspring meets the electrical requirements of the Ford F-150 airbag system.

Common Issues Addressed by This Clockspring

• Intermittent or non-functioning airbag warning lights
• Loss of electrical connection to steering wheel controls
• Faulty horn or steering wheel button operation
• Airbag system faults related to wiring or connector damage
• Steering wheel rotation causing wire breakage or shorts

Installation Notes and Tips

When installing the Standard Ignition CSP200 clockspring, ensure the steering wheel is centered and the wheels are pointed straight ahead to avoid damage. Handle the connectors carefully to prevent bending the pin terminals. Verify that the connector genders and shapes match the vehicle’s wiring harness before installation. Since hardware is not included, retain original mounting components for reassembly. Follow all safety precautions related to airbag system servicing, including disconnecting the battery and waiting the recommended time before installation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The CSP200 air bag clockspring undergoes rigorous quality control to ensure reliable performance in Ford F-150 vehicles. While specific warranty details are not provided here, Standard Ignition typically offers limited warranties covering defects in material and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
