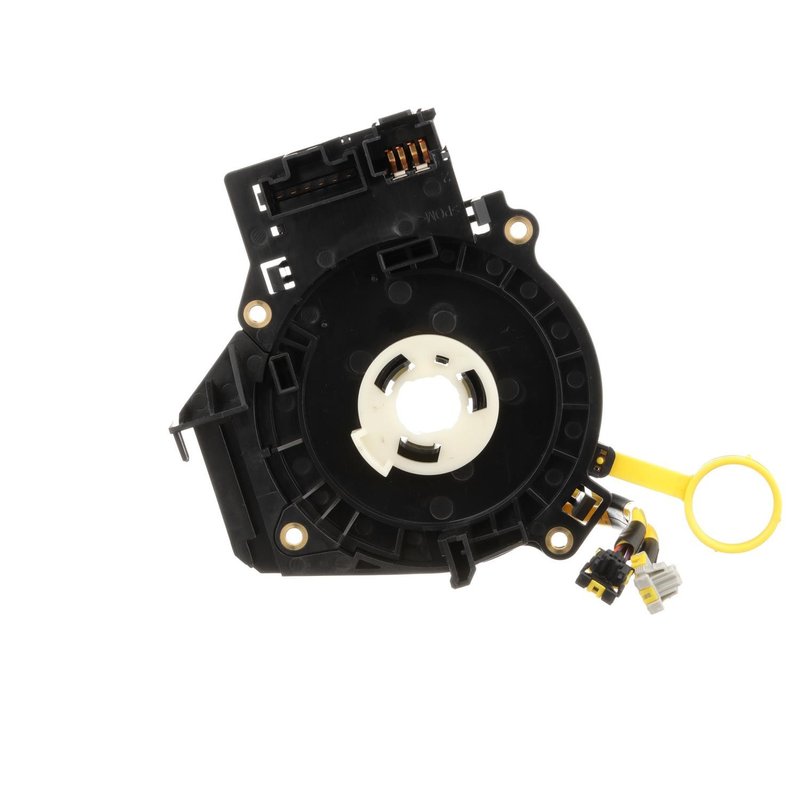

Standard Ignition CSP201 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford F-150

The Standard Ignition CSP201 air bag clockspring is designed specifically for Ford F-150 models, ensuring precise electrical connectivity for your vehicle's air bag system. This essential component maintains the connection between the steering wheel and the air bag module, supporting safe and effective air bag deployment.

• Color: Black for easy identification and compatibility
• Connector Gender: Female with 4 rectangular connectors
• Terminal Gender: Both female and male terminals included
• Terminal Quantity: 6 blade terminals and 4 pin terminals for secure connections
• Voltage: 12 volts, suitable for standard automotive electrical systems
• Wire Length: 5.25 inches (133.35 mm) with 4 wires for optimal routing

Detailed Product Description

The Standard Ignition CSP201 air bag clockspring is engineered to maintain continuous electrical contact between the vehicle’s steering wheel and the air bag system, even while the wheel is turning. Featuring a black housing and multiple connector options, this clockspring includes four female rectangular connectors and a combination of six blade and four pin terminals, both female and male, to ensure compatibility with the Ford F-150’s electrical system. The 12-volt rating aligns with the vehicle’s standard power supply, and the 5.25-inch wire length provides sufficient reach for installation without excess slack.

Common Applications and Issues Resolved

• Restores air bag system communication after steering wheel repairs or replacements
• Resolves air bag warning lights caused by faulty clockspring connections
• Eliminates intermittent horn or steering wheel control malfunctions
• Prevents loss of electrical signals to steering wheel-mounted controls
• Supports safe air bag deployment by maintaining circuit integrity

Installation Notes and Tips

When installing the CSP201 clockspring on a Ford F-150, ensure the steering wheel is centered and the clockspring is aligned according to manufacturer specifications to avoid damage. Handle the wiring carefully to prevent pin or blade terminal damage. Verify all female and male connectors are securely attached before reassembling the steering column components.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit and function. The CSP201 clockspring undergoes rigorous quality control to ensure reliable performance in the Ford F-150 air bag system. Please refer to Standard Ignition’s warranty policy for specific coverage details.
