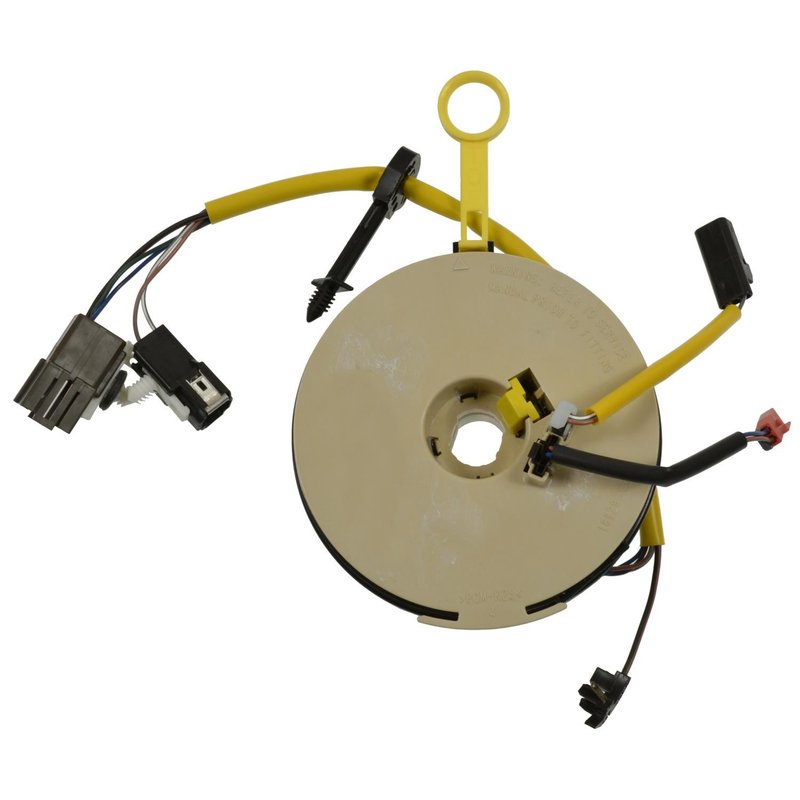

Standard Ignition CSP204 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford F-Series Trucks

The Standard Ignition CSP204 air bag clockspring is designed specifically for select Ford trucks, including the F-150, F-150 Heritage, F-250, F-250 Super Duty, and F-350 Super Duty models. This essential electrical component ensures proper communication between the steering wheel and the vehicle’s air bag system, maintaining safety and functionality.

• Compatible with Ford F-150, F-150 Heritage, F-250, F-250 Super Duty, and F-350 Super Duty
• Part Number: CSP204
• Black color with rectangular connectors
• Includes 5 connectors with both female and male genders
• Features 9 terminals (blade and bullet types) with male and female genders
• Wire length of 12.75 inches (323.85 mm) and 9 wires total
• Operates at 12 volts
• Hardware not included

Detailed Product Description

The Standard Ignition CSP204 air bag clockspring is engineered to maintain continuous electrical connections for the air bag system while allowing the steering wheel to turn freely. Its black housing contains 5 rectangular connectors with both male and female genders, ensuring secure and precise connections. The clockspring includes 9 terminals of blade and bullet types, also with male and female genders, to support the complex wiring needs of the air bag system. With a wire length of 12.75 inches, this clockspring fits the specified Ford truck models without modification. Operating at 12 volts, it integrates seamlessly with the vehicle’s electrical system.

Common Applications and Issues Resolved

• Restores air bag system communication after steering wheel repairs or replacements
• Fixes air bag warning lights caused by faulty clockspring connections
• Resolves intermittent horn or steering wheel control malfunctions
• Addresses issues with air bag deployment signals in Ford F-150 and Super Duty trucks
• Eliminates electrical faults related to damaged or worn clockspring wiring

Installation Notes and Tips

• Ensure battery is disconnected before installation to prevent accidental air bag deployment
• Handle the clockspring carefully to avoid damaging the internal ribbon cable
• Align the clockspring properly according to manufacturer instructions to maintain steering wheel centering
• Verify connector genders and terminal types match vehicle wiring harness before installation
• Hardware is not included; retain original mounting components for reinstallation

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The CSP204 air bag clockspring undergoes rigorous testing to ensure reliable performance in Ford F-150, F-150 Heritage, F-250, F-250 Super Duty, and F-350 Super Duty trucks. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship to support long-term vehicle safety and operation.
