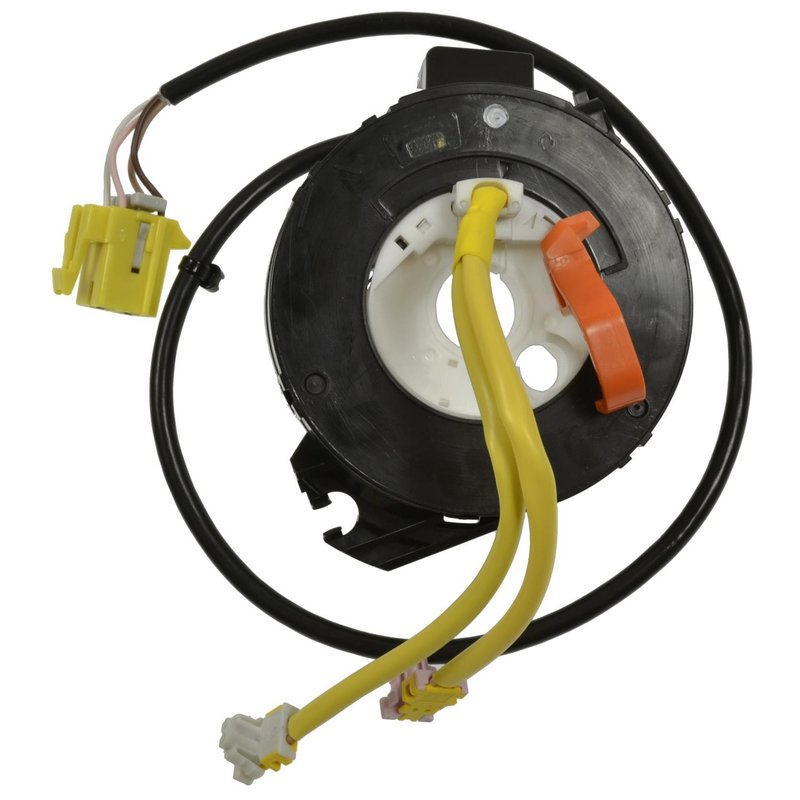

Standard Ignition CSP209 Air Bag Clockspring

Reliable Air Bag Clockspring for Chevrolet and GMC Vehicles

The Standard Ignition CSP209 air bag clockspring is designed to maintain a secure electrical connection between the steering wheel and the vehicle’s airbag system. Engineered for select Chevrolet and GMC models, this clockspring ensures consistent performance and safety in your vehicle’s air bag system.

• Compatible with Chevrolet Express 1500, GMC Savana 1500, Chevrolet Tahoe, and GMC Yukon
• Black color for discreet integration
• Four rectangular connectors with both female and male genders
• Eight blade and bullet type terminals, all female
• 12-volt electrical system compatibility
• Wire length of 20.75 inches (527.05 mm) with eight wires

Product Details and Specifications

The Standard Ignition CSP209 clockspring features a robust design with four rectangular connectors, combining female and male genders to ensure proper fit and connection within the air bag system. It includes eight female terminals of blade and bullet types, supporting a 12-volt electrical system common in Chevrolet and GMC vehicles. The wire length of 20.75 inches (527.05 mm) provides sufficient reach for installation without excess slack. The black color housing blends seamlessly with the vehicle’s interior components.

Compatible Vehicles and Applications

This air bag clockspring is specifically compatible with the following models:

• Chevrolet Express 1500
• GMC Savana 1500
• Chevrolet Tahoe
• GMC Yukon

It is designed to maintain the electrical connection for the airbag system, steering wheel controls, and horn, ensuring safety and functionality in these vehicles.

Common Issues Addressed by the CSP209 Clockspring

• Intermittent or non-functioning airbag warning lights
• Loss of steering wheel control functions such as horn or audio controls
• Faulty electrical connections within the air bag system
• Steering wheel noise or resistance during turns
• Airbag system faults related to wiring or connector damage

Installation Notes and Tips

When installing the Standard Ignition CSP209 clockspring, ensure the steering wheel is centered and the battery is disconnected to prevent accidental airbag deployment. Handle the clockspring carefully to avoid damaging the internal wiring. Verify connector orientation and terminal alignment before securing the unit. Professional installation is recommended to maintain airbag system integrity and safety compliance.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance for your Chevrolet or GMC vehicle. While specific warranty details for the CSP209 clockspring are not provided here, Standard Ignition typically offers coverage against defects in materials and workmanship. Consult the product documentation or manufacturer for exact warranty terms.
