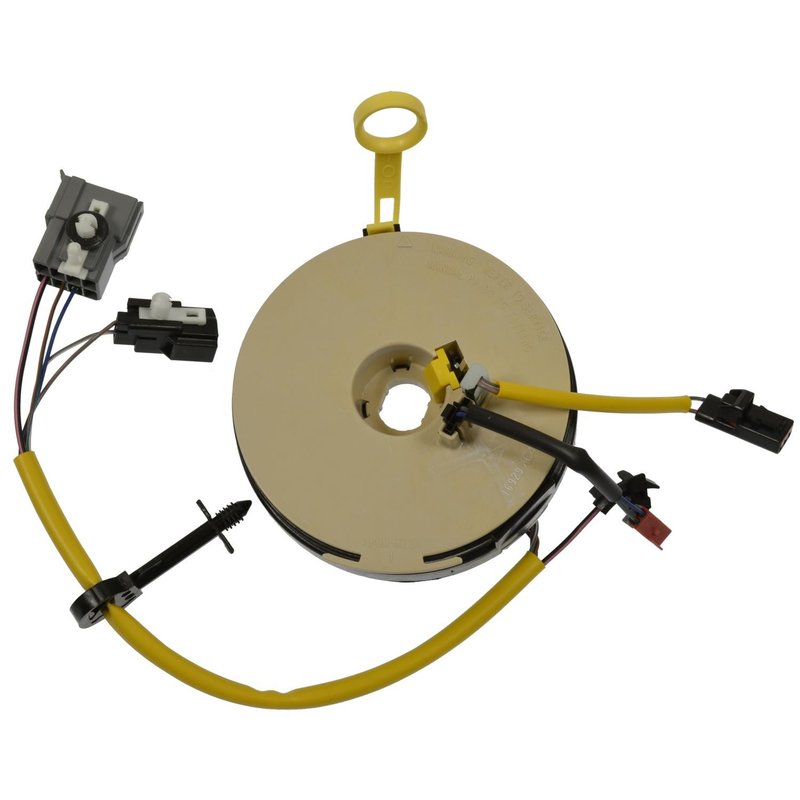

Standard Ignition CSP233 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford Super Duty Trucks

The Standard Ignition CSP233 air bag clockspring is designed specifically for Ford F-250 Super Duty and F-350 Super Duty models. This essential electrical component ensures proper connectivity for your vehicle's air bag system, maintaining safety and functionality.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty
• Connector gender: female and male for versatile connections
• Includes 5 rectangular connectors and 11 pin-type terminals
• Wire length of 13 inches (330.2 mm) with 9 wires for reliable signal transmission
• Operates at 12 volts, matching vehicle electrical systems
• Available in black and tan colors to match OEM specifications

Detailed Product Description

The Standard Ignition CSP233 clockspring is a critical component in the air bag system of Ford Super Duty trucks. It features a combination of female and male connectors and terminals, allowing seamless integration with the vehicle's wiring harness. The clockspring contains 9 wires, each 13 inches long, ensuring consistent electrical contact while the steering wheel is in motion. Its rectangular connector shape and pin-type terminals provide secure and stable connections, essential for air bag deployment signals. The black and tan color options align with factory standards, facilitating easier identification and installation.

Common Applications and Issues Addressed

• Restores air bag system communication after steering wheel repairs or replacements
• Resolves air bag warning lights caused by faulty clockspring connections
• Eliminates intermittent horn or steering wheel control malfunctions
• Prevents loss of electrical contact during steering wheel rotation
• Ensures proper function of steering wheel-mounted controls and safety features

Installation Notes and Tips

When installing the Standard Ignition CSP233 clockspring, ensure the steering wheel is centered and the wheels are pointed straight ahead. Handle the clockspring carefully to avoid damaging the delicate wiring and connectors. Verify connector orientation matches the vehicle harness to prevent misalignment. Since no installation hardware is included, retain original mounting components or acquire appropriate fasteners separately. After installation, reset the air bag system and check for warning lights to confirm proper operation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance for Ford F-250 Super Duty and F-350 Super Duty vehicles. The CSP233 clockspring undergoes rigorous testing to ensure durability and electrical integrity. Please refer to Standard Ignition's warranty policy for coverage details.
