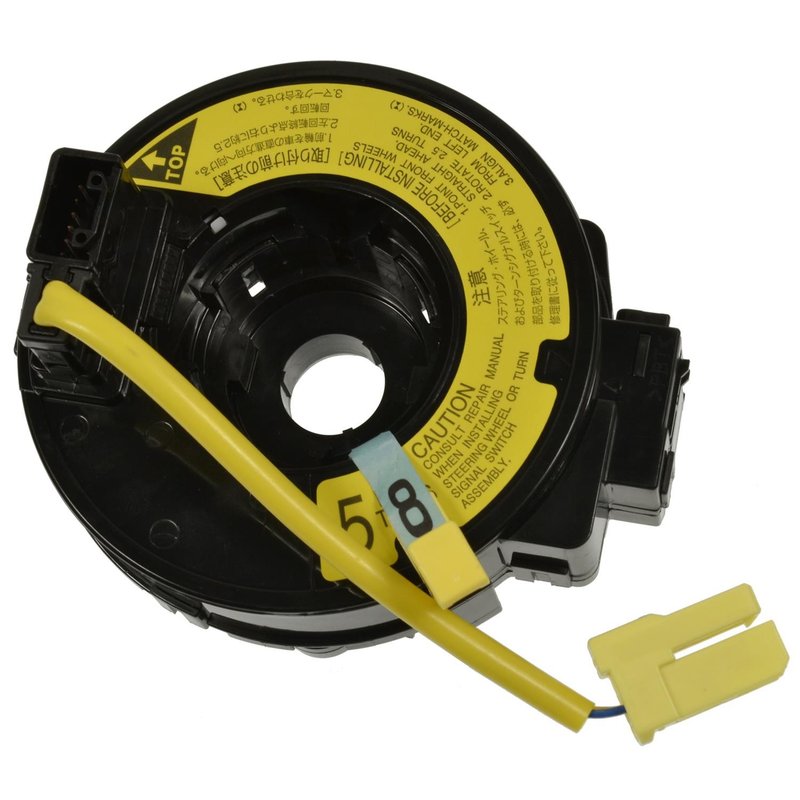

Standard Ignition CSP235 Air Bag Clockspring

Reliable Air Bag Clockspring for Toyota Vehicles

The Standard Ignition CSP235 air bag clockspring is designed to maintain electrical connections for the airbag system in select Toyota models. Engineered for precise fitment, this clockspring ensures consistent communication between the steering wheel and vehicle safety systems.

• Compatible with Toyota Celica, Highlander, MR2 Spyder, and RAV4 models
• Black finish for durability and corrosion resistance
• Features 4 rectangular connectors with both female and male genders
• Includes 16 pin-type terminals (female and male) for secure electrical contact
• Operates on 12-volt electrical systems
• Wire length of 4.5 inches (114.3 mm) with 2 wires included
• Hardware not included, designed for direct replacement

Product Details and Specifications

The Standard Ignition CSP235 clockspring is a critical component in the air bag system, providing a continuous electrical connection while allowing the steering wheel to turn. Its black color finish offers resistance to wear and environmental factors. The clockspring includes four rectangular connectors, each with both female and male genders, facilitating compatibility with the vehicle’s wiring harness. With 16 pin-type terminals, this clockspring ensures reliable signal transmission for airbag deployment and other steering wheel controls. The 12-volt rating matches the electrical system of Toyota Celica, Highlander, MR2 Spyder, and RAV4 models, making it a suitable replacement part for these vehicles.

Common Applications and Issues Addressed

• Restores airbag electrical connectivity after steering wheel repairs or replacements
• Resolves airbag warning light issues caused by faulty clockspring connections
• Fixes intermittent or non-functional steering wheel controls linked to wiring faults
• Prevents loss of communication between the airbag module and vehicle system
• Addresses electrical shorts or open circuits within the clockspring assembly

Installation Notes and Tips

Installation of the Standard Ignition CSP235 clockspring should be performed by a qualified technician familiar with airbag systems. Before installation, disconnect the vehicle battery and wait several minutes to prevent accidental airbag deployment. Align the clockspring properly to the neutral steering position to avoid damage during steering wheel rotation. Since hardware is not included, retain original mounting components or source compatible fasteners. Verify all connector terminals are securely engaged to ensure proper electrical function.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The CSP235 clockspring undergoes rigorous quality control to ensure reliable performance in Toyota Celica, Highlander, MR2 Spyder, and RAV4 vehicles. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in material and workmanship. Consult product documentation or the supplier for exact warranty terms.
