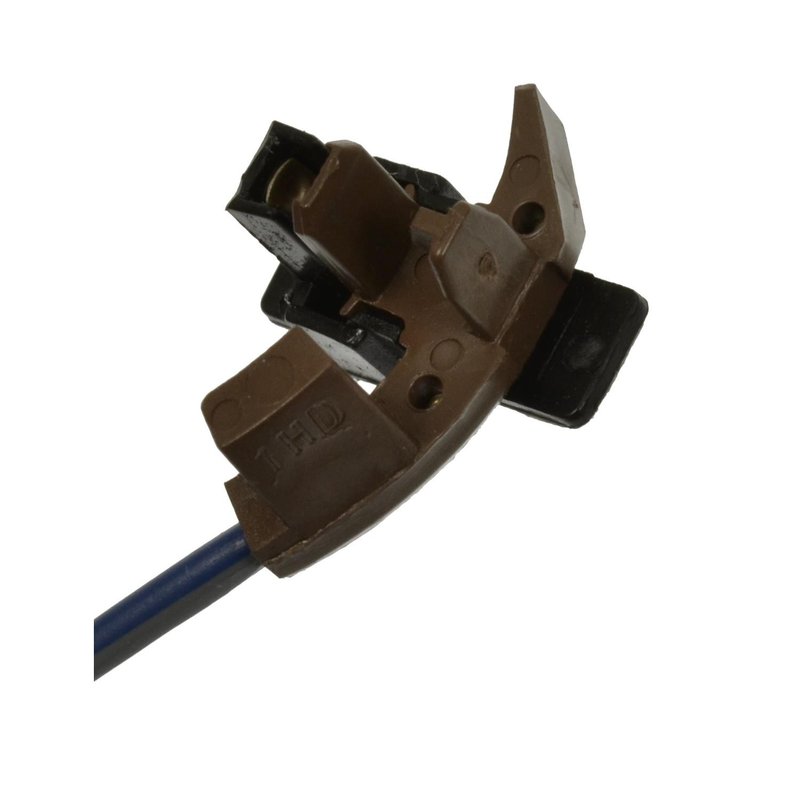

Standard Ignition CSP236 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford E-Series Vans

The Standard Ignition CSP236 air bag clockspring is designed specifically for Ford E-150, E-250, and E-350 Super Duty models. This essential electrical component ensures proper communication between the steering wheel and the vehicle’s air bag system, maintaining safety and functionality.

• Compatible with Ford E-150, E-250, and E-350 Super Duty
• Part number CSP236 for precise identification
• Black color with rectangular connector shape
• Includes 5 connectors with female and male genders
• Features 21 pin-type terminals (female and male)
• Operates on 12-volt electrical systems
• Wire length of 12.5 inches (317.5 mm) with 13 wires

Product Details and Specifications

The Standard Ignition CSP236 clockspring is engineered to maintain continuous electrical connections for the air bag system while allowing the steering wheel to turn freely. Its black housing and rectangular connectors provide a secure fit within the steering column assembly. The clockspring includes five connectors with both female and male genders, accommodating various wiring configurations. With 21 pin-type terminals, this clockspring supports reliable signal transmission for air bag deployment and other steering wheel controls. Designed for 12-volt systems, it features 13 wires with a length of 12.5 inches (317.5 mm), ensuring compatibility with the Ford E-Series electrical setup.

Common Applications and Problem Resolution

• Restores air bag system communication after steering column repairs
• Resolves air bag warning lights caused by faulty clockspring
• Fixes non-responsive steering wheel controls linked to wiring issues
• Prevents intermittent air bag deployment failures
• Addresses electrical connection problems within the steering column

Installation Notes and Tips

When installing the Standard Ignition CSP236 clockspring, ensure the steering wheel is centered and the wheels are pointed straight ahead to avoid damaging the clockspring ribbon cable. Handle the unit carefully to prevent pin or connector damage. Verify connector orientation matches the vehicle’s wiring harness for proper fitment. This clockspring is designed for direct replacement in Ford E-150, E-250, and E-350 Super Duty models, so no modifications should be necessary.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The CSP236 clockspring undergoes rigorous testing to ensure proper electrical continuity and mechanical function. While specific warranty details are not provided here, Standard Ignition typically offers coverage against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
