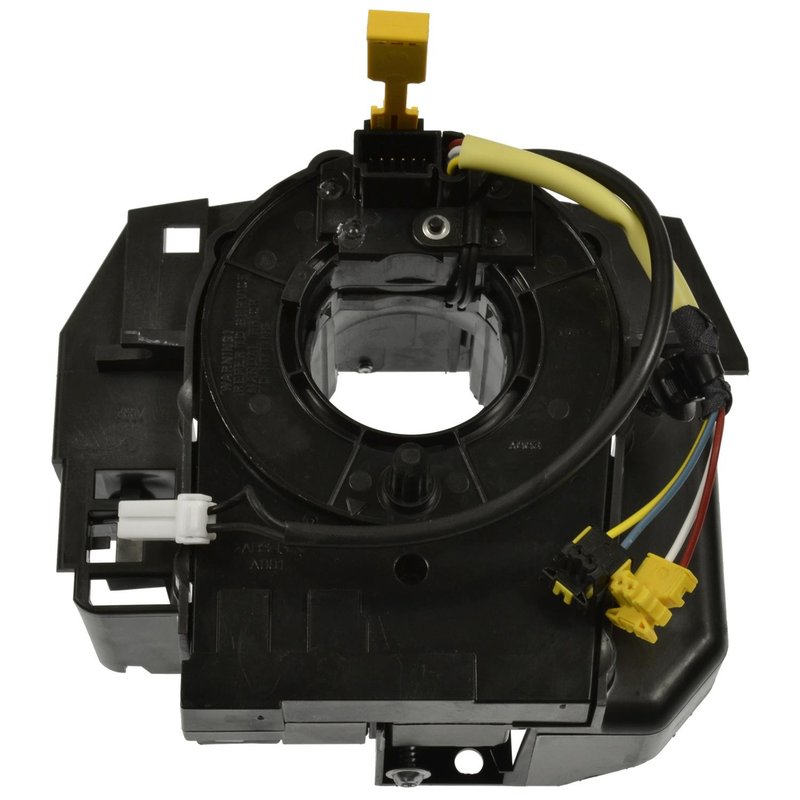

Standard Ignition CSP244 Air Bag Clockspring

Reliable Air Bag Clockspring for Dodge Ram Trucks

The Standard Ignition CSP244 air bag clockspring is designed to maintain a secure electrical connection between the steering wheel and the vehicle’s airbag system. Engineered for Dodge Ram 1500, 2500, and 3500 models, this clockspring ensures consistent performance and safety in your vehicle’s air bag system.

• Compatible with Dodge Ram 1500, 2500, and 3500 models
• Black color for easy identification and installation
• Features 6 rectangular connectors with both female and male genders
• Includes 28 pin-type terminals (female and male) for reliable electrical contact
• 12-volt voltage rating suitable for standard vehicle electrical systems
• Wire length of 8 inches (203.2 mm) with 6 wires for optimal connectivity

Product Details and Specifications

The Standard Ignition CSP244 clockspring is a critical component in the air bag system, providing a continuous electrical connection while allowing the steering wheel to turn. It features six rectangular connectors with both female and male genders, accommodating various wiring configurations. The clockspring contains 28 pin-type terminals, ensuring secure and stable electrical contacts. Designed for 12-volt systems, it includes six wires each measuring 8 inches in length, facilitating proper integration with the vehicle’s wiring harness. The black color housing aids in easy identification during installation or maintenance.

Applications and Common Issues Addressed

• Restores air bag system electrical continuity after steering wheel repairs or replacements
• Resolves air bag warning lights caused by faulty or damaged clocksprings
• Eliminates intermittent horn or steering wheel control malfunctions
• Prevents loss of electrical connection to steering wheel-mounted controls
• Ensures proper deployment signals for air bag safety systems

Installation Notes and Tips

When installing the Standard Ignition CSP244 clockspring, ensure the steering wheel is centered and the wheels are aligned straight ahead. Handle the clockspring carefully to avoid damaging the internal ribbon cable. Verify connector orientations—female and male connectors must match the vehicle’s wiring harness. Do not rotate the clockspring excessively before installation to prevent internal damage. Professional installation is recommended to maintain air bag system integrity and safety compliance.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The CSP244 clockspring undergoes rigorous quality control testing to maintain safety and functionality standards. Please refer to Standard Ignition’s warranty policy for specific coverage details.
