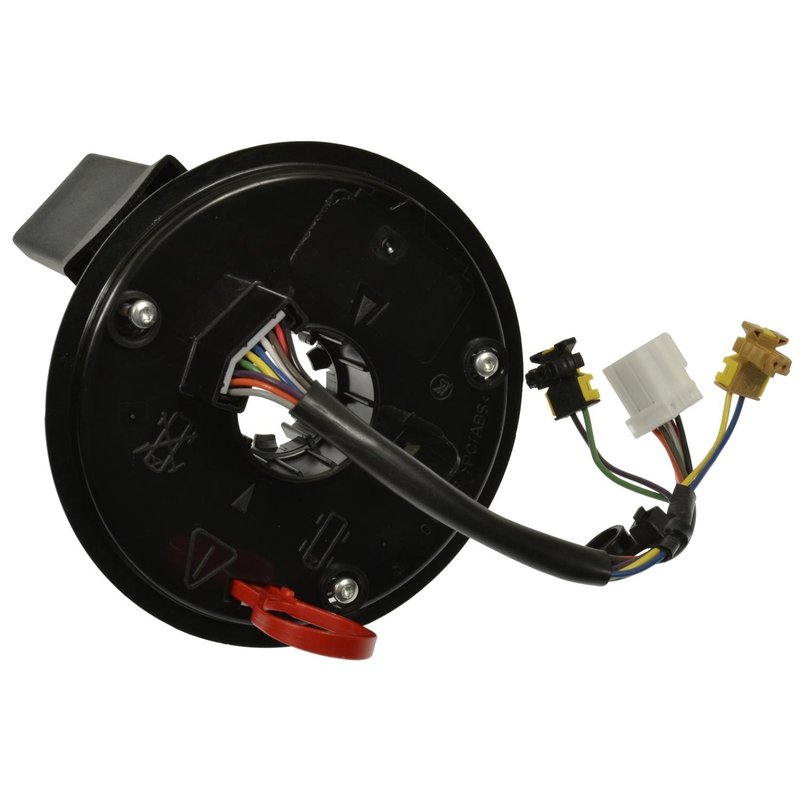

Standard Ignition CSP256 Air Bag Clockspring

Reliable Air Bag Clockspring for Chrysler and Dodge Vehicles

The Standard Ignition CSP256 air bag clockspring is designed to maintain a secure electrical connection between the steering wheel and the vehicle’s airbag system. Engineered for Chrysler 300, Dodge Challenger, Charger, and Magnum models, this clockspring ensures consistent performance and safety.

Key Features of Standard Ignition CSP256 Air Bag Clockspring

• Compatible with Chrysler 300, Dodge Challenger, Charger, and Magnum
• Black color housing for durability and corrosion resistance
• Three rectangular connectors with both female and male genders
• Contains 10 wires with a length of 7 inches (177.8 mm)
• Operates at 12 volts, suitable for standard vehicle electrical systems
• Includes 19 pin-type terminals with female and male terminal genders

Detailed Description of the CSP256 Air Bag Clockspring

The Standard Ignition CSP256 clockspring is a critical component in the air bag system, providing a continuous electrical connection while allowing the steering wheel to turn. Its black housing is designed for durability, and the three rectangular connectors with mixed female and male genders ensure proper fitment and secure connections. With 10 wires measuring 7 inches in length, this clockspring supports the necessary electrical pathways for airbag deployment and steering wheel controls. The 19 pin terminals, both female and male, facilitate reliable signal transmission within the 12-volt vehicle electrical system.

Common Issues Addressed by This Air Bag Clockspring

• Intermittent or non-functioning airbag warning lights
• Loss of steering wheel control button functionality
• Faulty horn operation due to broken electrical contacts
• Airbag system faults caused by damaged or worn clockspring wiring
• Electrical connection failures during steering wheel rotation

Installation Notes and Tips

When installing the Standard Ignition CSP256 clockspring, ensure the steering wheel is centered and the wheels are aligned straight. Handle the clockspring carefully to avoid damaging the internal ribbon cable. Do not rotate the clockspring excessively before installation to prevent internal damage. Verify connector orientation and secure all connections firmly to maintain proper electrical continuity.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and safety. The CSP256 clockspring undergoes rigorous quality control testing to guarantee durability and functionality. Please refer to Standard Ignition’s warranty policy for specific coverage details.
