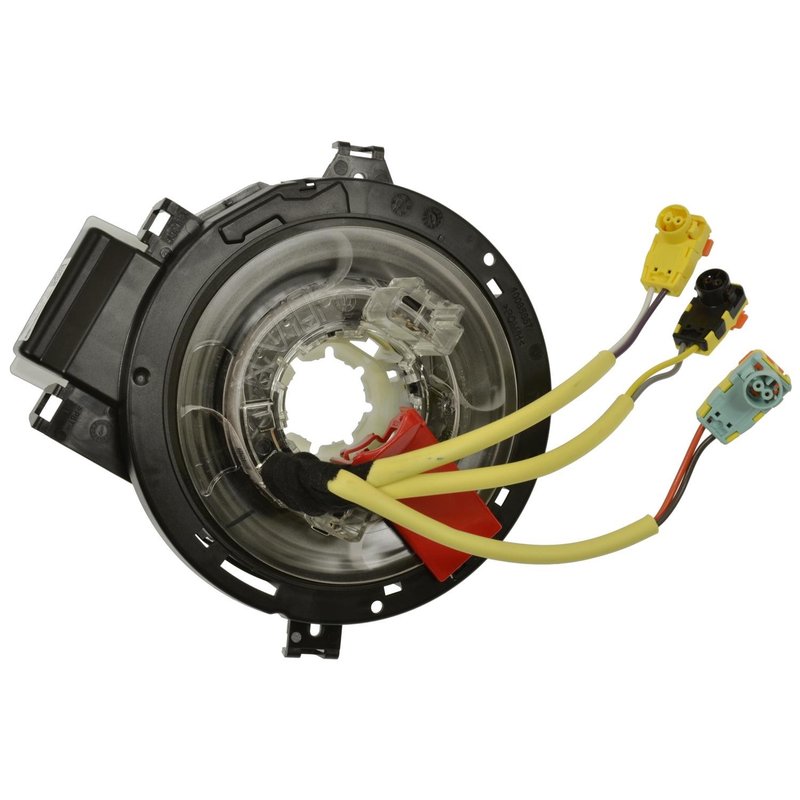

Standard Ignition CSP272 Air Bag Clockspring

Overview of Standard Ignition Air Bag Clockspring CSP272

The Standard Ignition Air Bag Clockspring CSP272 is designed specifically for Dodge Dart models, ensuring reliable electrical connectivity within the air bag system. This black clockspring features a 12-volt rating and precise connector and terminal configurations to maintain proper airbag function and steering wheel controls.

• Compatible with Dodge Dart vehicles
• Black color for standard OEM appearance
• Five female rectangular connectors for secure connections
• Eighteen male blade terminals for reliable electrical contact
• Six wires with 5.75-inch (146.05 mm) length for optimal routing
• 12-volt electrical rating suitable for air bag systems

Detailed Product Description

The CSP272 clockspring by Standard Ignition is an essential component in the air bag system of Dodge Dart vehicles. It provides continuous electrical connection between the steering wheel and the vehicle’s electrical system while allowing the wheel to turn freely. The clockspring includes five female rectangular connectors and eighteen male blade terminals, ensuring compatibility with the vehicle’s wiring harness. The six wires, each measuring approximately 5.75 inches, are designed to maintain signal integrity and durability under normal driving conditions. The black housing matches OEM specifications, supporting a seamless replacement process.

Common Applications and Issues Addressed

• Restores air bag system electrical continuity after clockspring failure
• Resolves non-functioning steering wheel controls related to wiring faults
• Eliminates air bag warning lights caused by damaged or worn clocksprings
• Prevents intermittent electrical disconnections during steering wheel rotation
• Supports safe deployment of driver-side air bags by maintaining circuit integrity

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent accidental air bag deployment
• Align the clockspring properly to the neutral steering position before securing
• Verify connector and terminal compatibility with Dodge Dart wiring harness
• Handle the clockspring carefully to avoid damaging the internal ribbon cable
• Consult vehicle service manual for torque specifications and safety procedures

Quality Assurance and Warranty

Standard Ignition manufactures the CSP272 clockspring to meet or exceed OEM standards for fit, form, and function. This part undergoes rigorous quality control to ensure reliable performance in Dodge Dart air bag systems. While specific warranty details are not provided here, Standard Ignition products typically include a limited warranty against defects in materials and workmanship. Refer to the product packaging or manufacturer documentation for exact warranty terms.
