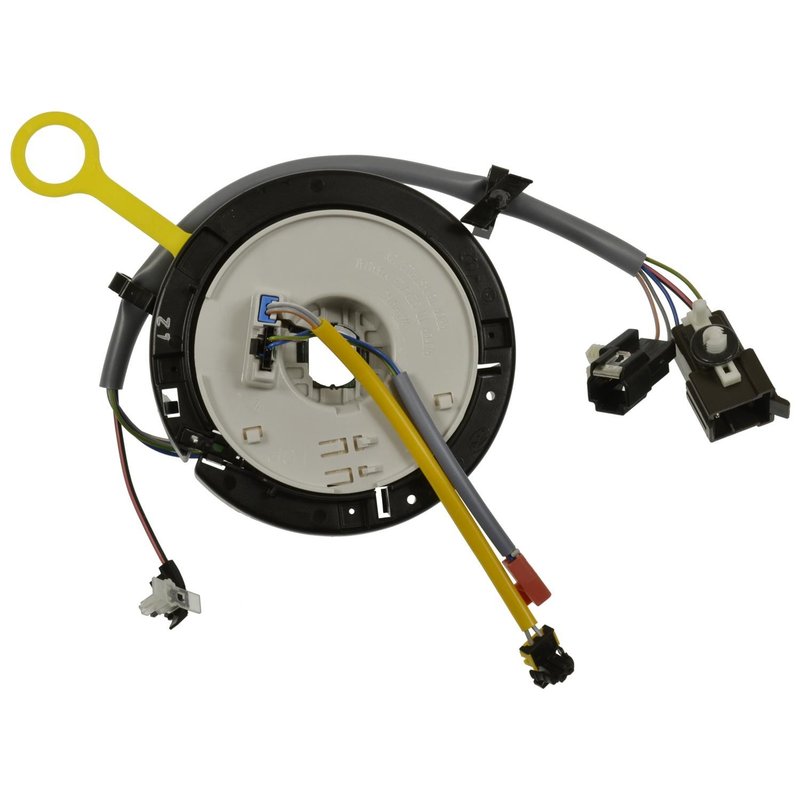

Standard Ignition CSP274 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford E-Series Vehicles

The Standard Ignition CSP274 air bag clockspring is designed to maintain a secure electrical connection between the steering wheel and the vehicle’s airbag system. Engineered for Ford E-150, E-250, and E-350 Super Duty models, this clockspring ensures consistent performance and safety in critical airbag deployment functions.

• Compatible with Ford E-150, E-250, and E-350 Super Duty models
• Part number CSP274 for precise identification
• Black and gray color housing for easy visual verification
• Five rectangular connectors with both female and male genders
• Eleven blade and pin terminals, female and male, for secure electrical contacts
• 12.5-inch (317.5 mm) wire length with nine wires for comprehensive connectivity
• Operates at 12 volts, matching vehicle electrical systems

Product Details and Specifications

The Standard Ignition CSP274 clockspring is a critical component in the air bag system, providing a continuous electrical path to the driver’s airbag and steering wheel controls while allowing the wheel to turn freely. The unit features a combination of female and male connectors and terminals, including blade and pin types, ensuring compatibility with the vehicle’s wiring harness. Its rectangular connector shape and color-coded black and gray housing facilitate proper installation and maintenance. The clockspring contains nine wires, each 12.5 inches long, designed to handle 12-volt electrical systems typical in Ford E-Series vans.

Common Applications and Problem Resolution

• Restores airbag system communication after steering wheel removal or repair
• Eliminates intermittent airbag warning lights caused by faulty clockspring connections
• Resolves non-functional steering wheel controls linked to wiring issues
• Prevents loss of horn functionality related to clockspring failure
• Ensures proper deployment signals for driver-side airbags

Installation Notes and Tips

When installing the Standard Ignition CSP274 clockspring, ensure the steering wheel is centered and the clockspring is aligned according to manufacturer specifications to avoid damage. Disconnect the vehicle battery before beginning installation to prevent accidental airbag deployment. Verify connector orientation and terminal engagement carefully, as the unit includes multiple female and male connectors and terminals. No additional hardware is included, so retain original mounting components for reassembly.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The CSP274 clockspring undergoes rigorous quality control to ensure reliable performance in Ford E-150, E-250, and E-350 Super Duty vehicles. Warranty coverage details should be confirmed with the product documentation or supplier, as it may vary by region and distributor.
