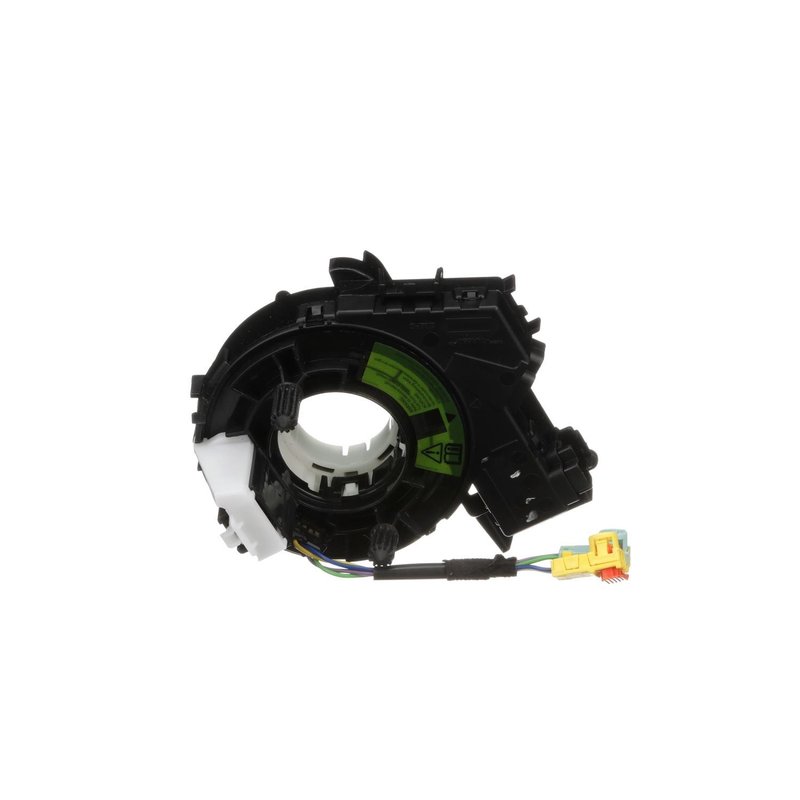

Standard Ignition CSP278 Air Bag Clockspring

Overview of Standard Ignition Air Bag Clockspring CSP278

The Standard Ignition Air Bag Clockspring CSP278 is designed for reliable electrical connectivity in Ford vehicles. This clockspring ensures proper communication between the steering wheel and the airbag system, maintaining safety and functionality in your Ford C-Max, Escape, Focus, or Transit Connect.

• Compatible with Ford C-Max, Escape, Focus, and Transit Connect models
• Connector gender: Female and male for secure connections
• Four rectangular connectors for efficient wiring
• Includes 22 terminals with blade and pin types
• 12-volt electrical system compatibility
• Wire length of 3.5 inches (88.9 mm) with four wires
• Color: Black for standard OEM appearance

Detailed Product Description

The Standard Ignition CSP278 air bag clockspring is a critical component in the airbag system, providing a continuous electrical connection between the vehicle’s steering wheel and the airbag module. Featuring four rectangular connectors with both female and male genders, this clockspring supports 22 blade and pin terminals, ensuring reliable signal transmission. The 12-volt design matches the electrical system of Ford vehicles, and the 3.5-inch wire length allows for proper fitment and flexibility during installation. Its black color aligns with OEM standards, maintaining the original look and feel of your vehicle’s interior.

Common Applications and Issues Resolved

• Restores airbag system communication in Ford C-Max, Escape, Focus, and Transit Connect
• Resolves steering wheel electrical faults affecting airbag deployment
• Fixes intermittent or broken connections in the clockspring assembly
• Addresses warning lights related to airbag system malfunctions
• Eliminates steering wheel control failures linked to clockspring issues

Installation Notes and Tips

When installing the Standard Ignition CSP278 clockspring, ensure the steering wheel is centered and the wheels are straight to prevent damage. Handle the clockspring carefully to avoid twisting or over-rotating the internal ribbon cable. Verify connector orientation and secure all four connectors firmly to maintain proper electrical contact. It is recommended to disconnect the vehicle battery before installation to prevent accidental airbag deployment.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring dependable performance and safety. The CSP278 clockspring undergoes rigorous testing for electrical continuity and durability. While specific warranty details are not provided here, Standard Ignition typically offers coverage against defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
