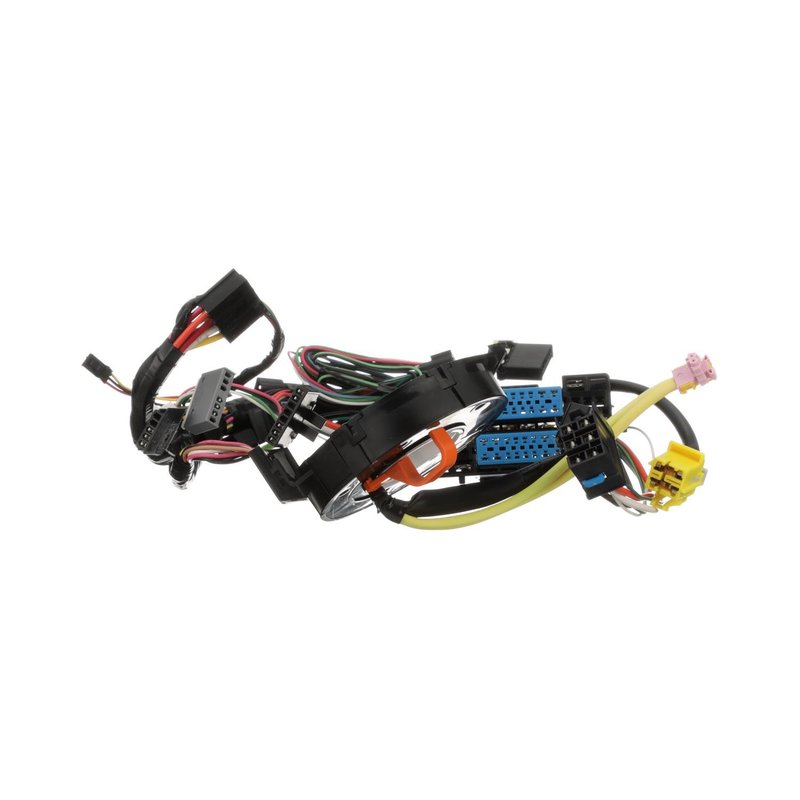

Standard Ignition CSP281 Air Bag Clockspring

Reliable Air Bag Clockspring for GM Trucks and SUVs

The Standard Ignition CSP281 air bag clockspring is designed to maintain electrical connections for the airbag system in select Cadillac, Chevrolet, and GMC vehicles. This essential component ensures proper communication between the steering wheel and the vehicle’s safety systems.

• Compatible with Cadillac Escalade, Escalade ESV, Escalade EXT
• Fits Chevrolet Avalanche 1500/2500, Silverado 1500/2500 HD/3500, Tahoe
• Suitable for GMC Sierra 1500/2500 HD/3500, Yukon, Yukon XL 1500/2500
• Black clockspring with 17 rectangular connectors (female + male)
• Includes 88 blade and pin terminals (female and male) with 16.25-inch wire length
• Operates at 12 volts, designed for air bag system electrical continuity

Product Details and Specifications

The Standard Ignition CSP281 clockspring is a critical component in the air bag system, providing a continuous electrical connection while allowing the steering wheel to turn. It features a black housing with 17 rectangular connectors that include both female and male genders, ensuring compatibility with the vehicle’s wiring harness. The clockspring contains 88 blade and pin terminals, also female and male, which facilitate secure and reliable electrical contacts. With a wire length of 16.25 inches (412.75 mm), this clockspring supports the necessary wiring configuration for proper airbag deployment signals. Operating at 12 volts, it is engineered to meet the electrical requirements of the air bag system in various GM trucks and SUVs.

Compatible Vehicles and Applications

This air bag clockspring is compatible with a range of General Motors vehicles, including:

• Cadillac Escalade, Escalade ESV, Escalade EXT
• Chevrolet Avalanche 1500 and 2500, Silverado 1500, 2500 HD, 3500, Tahoe
• GMC Sierra 1500, 2500 HD, 3500, Yukon, Yukon XL 1500, Yukon XL 2500
• Chevrolet Express 2500, 3500 and GMC Savana 2500, 3500

Common Issues Addressed by the CSP281 Clockspring

• Intermittent or non-functioning airbag warning light
• Loss of horn or steering wheel controls functionality
• Faulty electrical connection in the air bag system
• Steering wheel electrical component failures during rotation
• Airbag system communication errors or faults

Installation Notes and Tips

When installing the Standard Ignition CSP281 clockspring, ensure the steering wheel is centered and the wheels are pointed straight ahead. Handle the clockspring carefully to avoid damaging the internal ribbon cable. Do not rotate the clockspring excessively before installation to prevent internal damage. It is recommended to follow the vehicle manufacturer’s service manual for proper removal and installation procedures. Verify all electrical connectors are securely attached and test the airbag system after installation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The CSP281 clockspring undergoes rigorous quality control to ensure reliable performance in the air bag system. While specific warranty details are not provided here, Standard Ignition typically offers a limited warranty covering defects in material and workmanship. Consult the product packaging or Standard Ignition’s official resources for exact warranty terms.
