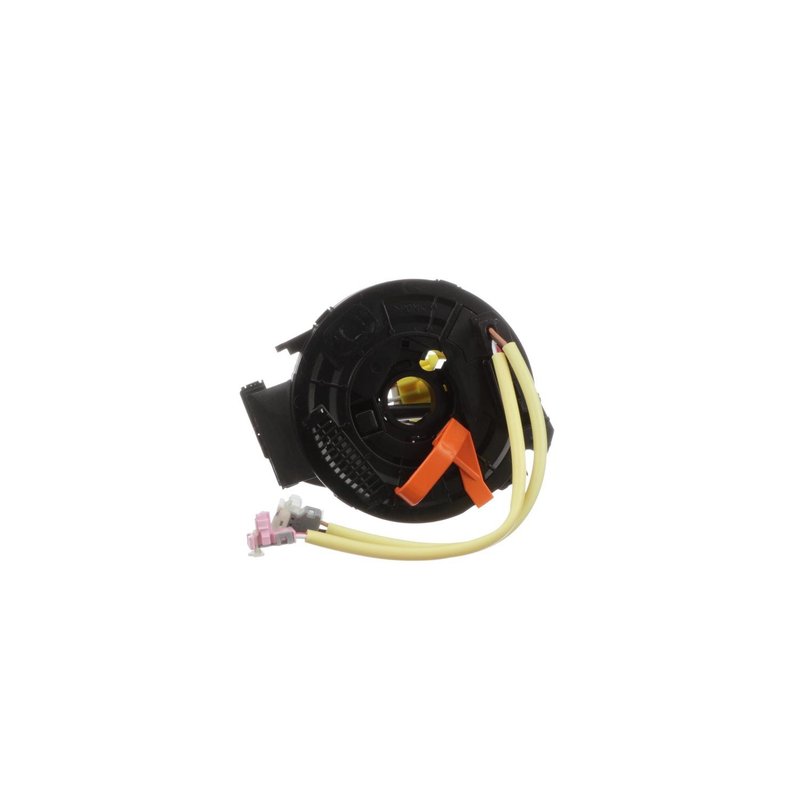

Standard Ignition CSP313 Air Bag Clockspring

Reliable Air Bag Clockspring for GM Trucks and SUVs

The Standard Ignition CSP313 air bag clockspring is designed to maintain electrical connections for the airbag system in select Cadillac, Chevrolet, and GMC vehicles. This essential component ensures proper communication between the steering wheel and the vehicle’s safety systems.

• Compatible with Cadillac Escalade, Escalade ESV, Escalade EXT, Chevrolet Avalanche, Silverado 1500/2500 HD/3500 HD, Suburban 1500/2500, Tahoe, and GMC Sierra 1500/2500 HD/3500 HD, Yukon, Yukon XL 1500/2500
• Connector gender: Female and male for secure connections
• Five connectors with rectangular and square shapes for precise fitment
• 28 terminals including pin and female plug types for reliable signal transmission
• 29-inch (736.6 mm) wire length with three wires for optimal routing
• Durable black plastic finish for long-lasting performance

Product Features and Specifications

The CSP313 clockspring from Standard Ignition features a robust plastic housing finished in black, designed to withstand the rigors of automotive environments. It includes both female and male connectors, totaling five in number, shaped rectangular and square to match factory wiring harnesses. The clockspring contains 28 terminals, combining pin and female plug types, ensuring consistent electrical contact for airbag deployment signals and steering wheel controls. With a wire length of 29 inches (736.6 mm) and three wires, it provides sufficient reach and flexibility for installation in the steering column assembly.

Compatible Vehicles and Applications

This air bag clockspring is compatible with a range of General Motors trucks and SUVs, including:

• Cadillac Escalade, Escalade ESV, Escalade EXT
• Chevrolet Avalanche, Silverado 1500, Silverado 2500 HD, Silverado 3500 HD, Suburban 1500, Suburban 2500, Tahoe
• GMC Sierra 1500, Sierra 2500 HD, Sierra 3500 HD, Yukon, Yukon XL 1500, Yukon XL 2500

It is specifically designed to replace the original clockspring in these models, ensuring proper airbag system function and steering wheel control connectivity.

Common Issues Addressed by the CSP313 Clockspring

• Intermittent or non-functioning airbag warning lights
• Loss of steering wheel controls such as horn or audio buttons
• Faulty electrical connections within the steering column
• Airbag system faults caused by damaged or worn clockspring
• Steering wheel wiring harness failures

Installation Notes and Tips

When installing the Standard Ignition CSP313 clockspring, ensure the steering wheel is centered and the wheels are pointed straight ahead to avoid damage. Disconnect the vehicle battery and wait several minutes before beginning work to prevent accidental airbag deployment. Carefully align the clockspring connectors and terminals to match factory wiring harnesses. Avoid twisting or stretching wires during installation to maintain integrity.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications. The CSP313 clockspring undergoes rigorous quality control to ensure reliable performance in critical airbag systems. While specific warranty details are not provided here, Standard Ignition typically offers coverage against defects in materials and workmanship. Refer to the product packaging or manufacturer documentation for exact warranty terms.
