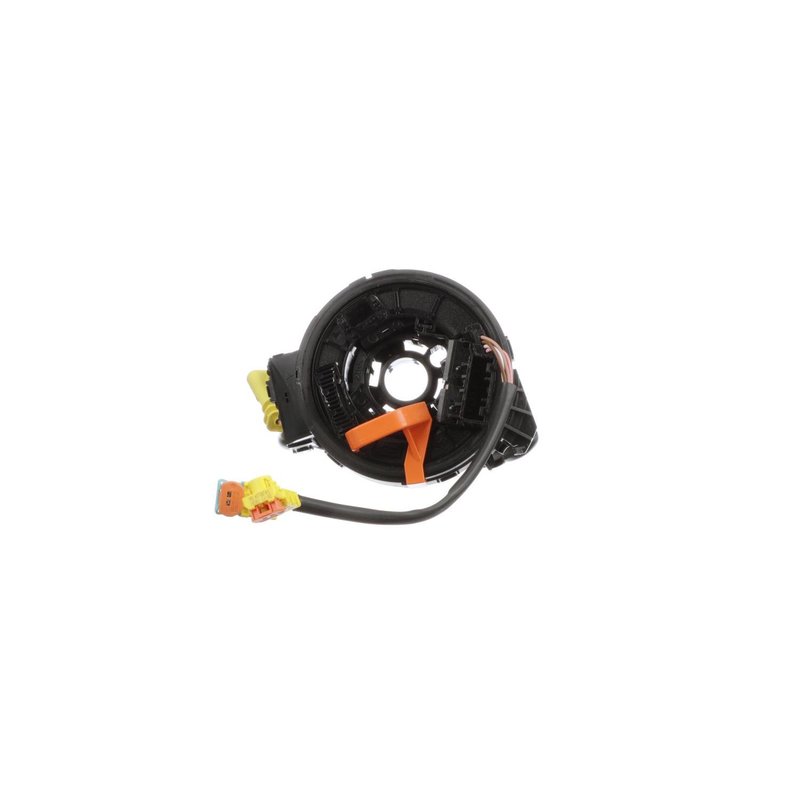

Standard Ignition CSP314 Air Bag Clockspring

Reliable Air Bag Clockspring for Cadillac, Chevrolet, and GMC Vehicles

The Standard Ignition CSP314 air bag clockspring is designed to maintain a secure electrical connection between the steering wheel and the vehicle’s airbag system. Engineered for select Cadillac Escalade, Chevrolet Silverado 1500, and GMC Yukon models, this clockspring ensures consistent sensor communication and safety system functionality.

• Compatible with Cadillac Escalade, Escalade ESV, Chevrolet Silverado 1500, Suburban 3500 HD, Tahoe, and GMC Sierra 1500, Yukon, Yukon XL
• Part number CSP314 for precise identification and fitment
• Black plastic finish with durable construction
• Includes 5 connectors with both female and male genders
• Connector shapes include round and rectangular for secure connections
• Equipped with 24 terminals featuring blade and pin types
• Two wires with a length of 30.75 inches (781.05 mm) for optimal routing
• Contains integrated sensor for airbag system communication

Product Details and Specifications

The Standard Ignition CSP314 clockspring is a critical component in the air bag system, providing a continuous electrical path to the driver’s airbag and steering wheel controls. Its black plastic finish offers durability and resistance to wear. The clockspring features a combination of female and male connectors, totaling five, with both round and rectangular shapes to ensure compatibility with factory wiring harnesses. The 24 terminals include blade and pin types, supporting reliable electrical contact. Two wires measuring over 30 inches in length allow for proper installation without strain or damage.

Common Applications and Problem Resolution

• Restores airbag warning light functionality by reestablishing circuit continuity
• Eliminates intermittent steering wheel control failures
• Prevents loss of horn operation linked to clockspring faults
• Resolves issues with airbag sensor communication errors
• Addresses steering wheel electrical connection problems in specified GM trucks and SUVs

Installation Notes and Tips

When installing the CSP314 clockspring, ensure the steering wheel is centered and the wheels are aligned straight ahead to avoid damage. Handle the clockspring carefully to prevent wire or terminal damage. Verify connector orientation by matching the round and rectangular shapes to the vehicle’s wiring harness. No additional hardware is included, so retain original mounting components. After installation, perform a diagnostic scan to confirm airbag system readiness.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The CSP314 clockspring undergoes rigorous quality control to ensure reliable performance in airbag systems. While specific warranty details are not provided here, Standard Ignition typically offers limited warranties covering defects in material and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
