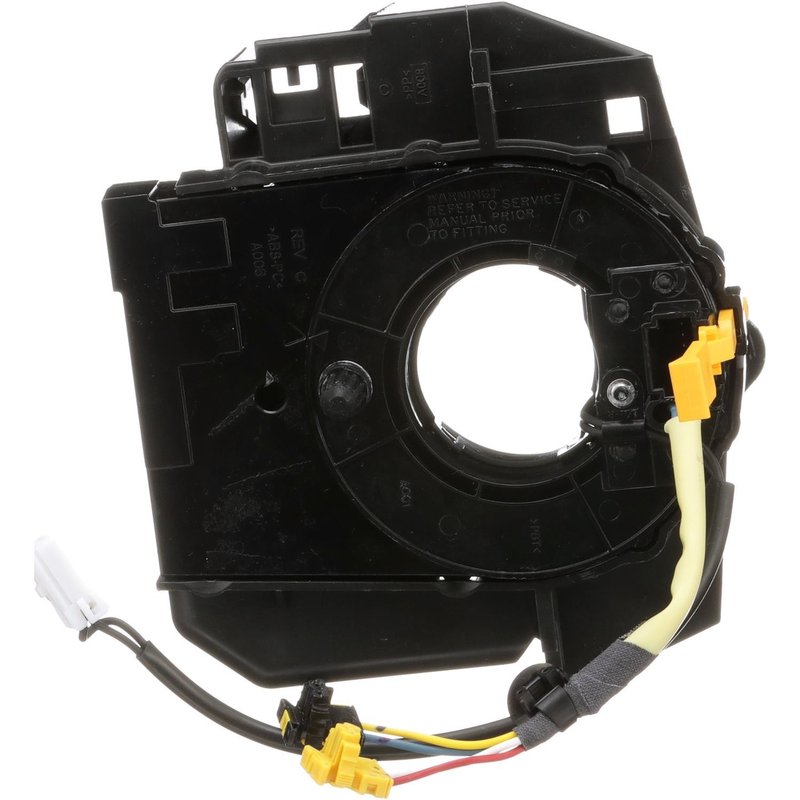

Standard Ignition CSP323 Air Bag Clockspring

Reliable Air Bag Clockspring for Ram 1500, 1500 Classic, 2500, and 3500

The Standard Ignition CSP323 air bag clockspring is designed to maintain a secure electrical connection between the steering wheel and vehicle systems. Engineered for select Ram models, this clockspring ensures consistent communication for air bag deployment and steering wheel controls.

Key Features of Standard Ignition CSP323 Air Bag Clockspring

• Compatible with Ram 1500, 1500 Classic, 2500, and 3500 models
• Connector type: Plug in with 8 rectangular connectors
• Connector gender includes both female and male terminals
• 34 blade and bullet type terminals for reliable electrical contact
• Constructed with durable black and white plastic finish
• Includes 6 wires to support multiple steering wheel functions

Detailed Product Description

The Standard Ignition CSP323 clockspring is a critical component in the air bag system, providing a continuous electrical path while allowing the steering wheel to rotate. Featuring a plastic finish in black and white, this clockspring incorporates 8 rectangular plug-in connectors with both male and female genders to ensure proper fitment and connection. The 34 blade and bullet terminals facilitate secure and stable electrical contacts, supporting the vehicle’s air bag and steering wheel control systems. With 6 wires integrated, this clockspring supports multiple functions, maintaining safety and operational integrity for Ram 1500, 1500 Classic, 2500, and 3500 models.

Common Issues Addressed by This Air Bag Clockspring

• Intermittent or non-functioning air bag warning lights
• Loss of steering wheel control button functionality
• Faulty horn operation due to broken electrical connections
• Steering wheel electrical system faults caused by damaged clockspring
• Air bag system communication errors during steering wheel rotation

Installation Notes and Tips

When installing the Standard Ignition CSP323 clockspring, ensure the steering wheel is centered and the wheels are aligned straight ahead. Carefully disconnect the battery before beginning to avoid accidental air bag deployment. Handle the clockspring carefully to prevent damage to the internal wiring and connectors. Verify connector orientation and terminal alignment to ensure proper electrical contact. After installation, reset the air bag system and test all steering wheel functions for proper operation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and safety compliance. The CSP323 clockspring undergoes rigorous quality control to maintain durability and electrical integrity. Please refer to Standard Ignition’s warranty policy for specific coverage details.
