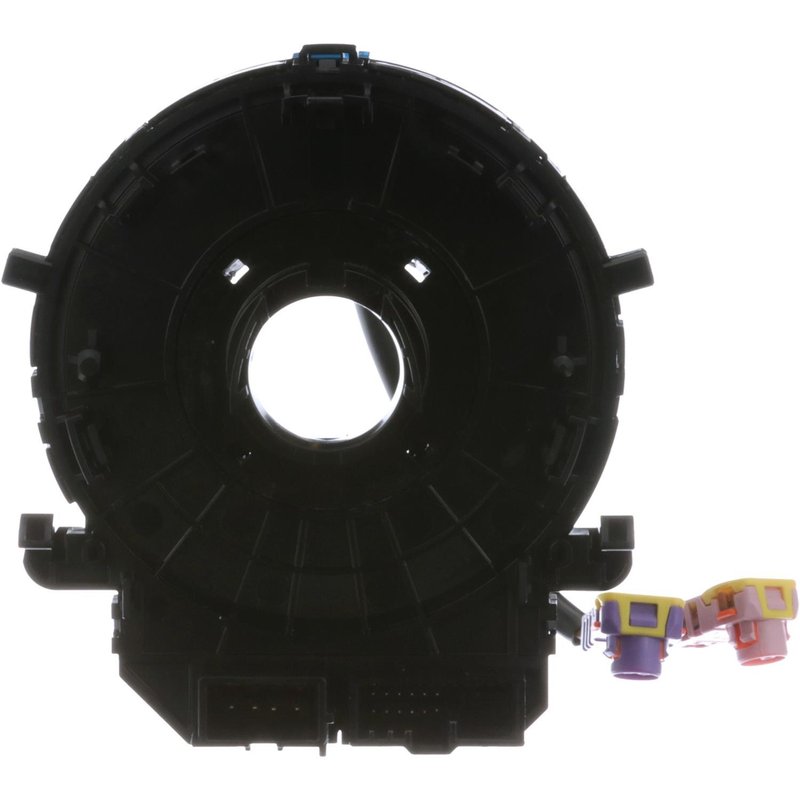

Standard Ignition CSP336 Air Bag Clockspring
| Brand | Standard Ignition CSP336 |
|---|---|
| Color/Finish | Black |
| Connector Gender | Female; male |
| Connector Quantity | 5 |
| Connector Shape | Round, rectangle |
| Connector Type | Plug; socket |
| Contents | Clockspring |
| Finish | Plastic |
| Hardware Included | No |
| Terminal Gender | Female; male |
| Terminal Quantity | 32 |
| Terminal Type | Blade, pin |
| Wire Length (in) | 6 |
| Wire Length (mm) | 152.4 |
| Wire Quantity | 1 |
| Fits | Kia · 7 vehicles |
Direct replacement. Clockspring with plug-and-socket connections for straightforward installation.
Black plastic finish. Durable construction with 5 connectors and 32 terminals.
Air bag clockspring. Restores electrical continuity in the air bag system.
Cross-references Standard Ignition CSP336, 93490H8220 and CLS437 for the same application. See all 4.
Air Bag Clockspring for Kia Rio
Standard Ignition CSP336 is an air bag clockspring for 2017-2023 Kia Rio models. It maintains the electrical connection between the steering wheel and vehicle systems while allowing the wheel to turn normally.
Key Features
- Black plastic clockspring assembly
- Female and male connectors with round and rectangle shapes
- 5 connectors and 32 terminals for steering wheel circuit routing
- Blade and pin terminal design
- 6 in. (152.4 mm) wire length
- Direct replacement for Kia Rio air bag system service
Detailed Description
Standard Ignition CSP336 is built for 2017-2023 Kia Rio applications and is listed for N/A position use. This clockspring helps preserve continuity for air bag, horn, and steering wheel control circuits as the steering wheel rotates. The unit features a black plastic finish, mixed female and male connector genders, and a combination of plug and socket connector types for OE-style electrical routing. If you are servicing a Kia Rio steering wheel electrical fault, CSP336 provides the correct replacement format for the listed model years. This part cross-references Hyundai/Kia OE-style reference 93490H8220 for the same application.
What It Helps Fix
- Air bag warning light caused by a failed steering wheel ribbon circuit
- Horn or steering wheel button loss from an open clockspring
- Intermittent electrical contact in the steering column
- Broken internal wiring from repeated steering wheel rotation
- Steering wheel control signal interruption on Kia Rio models
Installation Notes and Tips
Before replacement, center the steering wheel and follow the vehicle service procedure for disabling the supplemental restraint system. Verify connector style, terminal layout, and clock spring alignment before installation. After installation, confirm steering wheel operation and clear any stored air bag fault codes with the proper scan tool.
Quality Assurance
Standard Ignition replacement electrical components are built to match the listed application requirements for fit and function. Confirm vehicle year and model before ordering CSP336 for 2017-2023 Kia Rio service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Kia | Rio | N/A | — |
| 2022 | Kia | Rio | N/A | — |
| 2021 | Kia | Rio | N/A | — |
| 2020 | Kia | Rio | N/A | — |
| 2019 | Kia | Rio | N/A | — |
| 2018 | Kia | Rio | N/A | — |
| 2017 | Kia | Rio | N/A | — |
