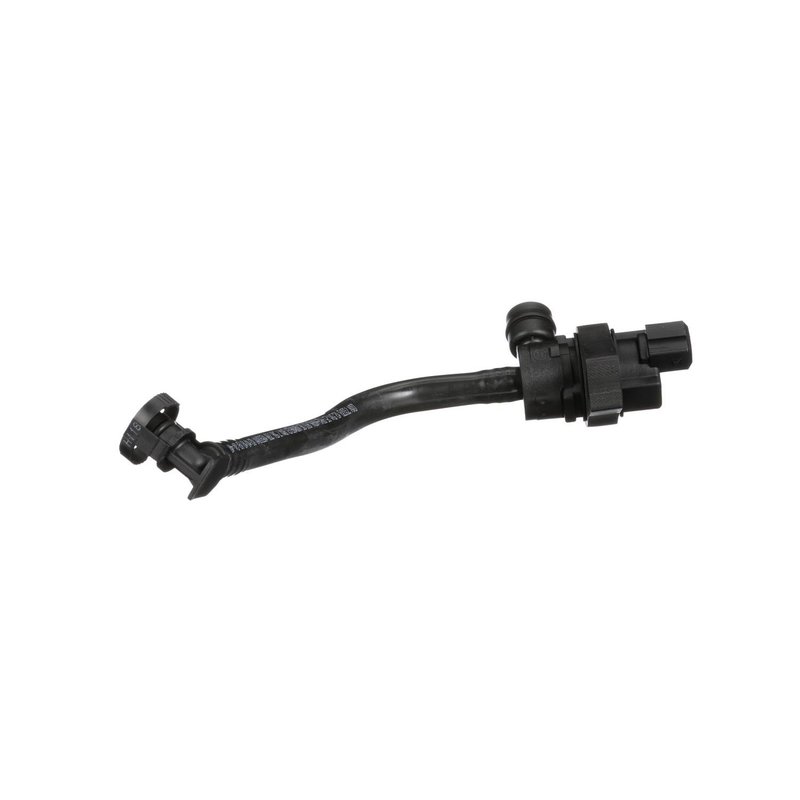

Standard Ignition CVS61 Vapor Canister Purge Solenoid

Vapor Canister Purge Solenoid for BMW Emissions Control

Standard Ignition CVS61 is a vapor canister purge solenoid for emission control systems. It is built with a female rectangular connector, a single port, and male blade terminals to support the purge circuit on select BMW applications.

Compatible With 2002-2006 BMW X5, 2004-2005 BMW 545i, 2004-2005 BMW 645Ci, 2002-2005 BMW 745i, and 2002-2005 BMW 745Li. This Standard Ignition CVS61 replacement is a direct-fit emissions component for vehicles that use 1/2" and 3/4" hose connections.

Key Features

• Vapor canister purge solenoid for the EVAP/emission control system
• Female connector with rectangular shape for a secure electrical interface
• Male blade terminals with 2-terminal configuration
• Single-port design with 1/2" and 3/4" hose size compatibility
• Contents: solenoid
• Standard Ignition CVS61 part number for catalog matching and service lookup

Detailed Description

The CVS61 purge solenoid regulates vapor flow from the charcoal canister into the engine intake under commanded conditions. On BMW X5, 545i, 645Ci, 745i, and 745Li applications, a properly functioning purge solenoid helps maintain EVAP system operation and supports stable emissions performance. Standard Ignition CVS61 is specified with one connector, one port, and blade-style terminals to match the listed vehicle applications.

This part cross-references Genuine 13907506739 for the same application. When replacing a purge solenoid, verify hose routing, connector style, and mounting location against the original unit before installation.

Common Issues This Part May Resolve

• EVAP system fault codes related to purge flow
• Fuel vapor odor around the vehicle
• Rough idle caused by purge valve leakage
• Check engine light triggered by purge circuit or emissions faults
• Hard starting after refueling on affected BMW models

Installation Notes and Tips

Confirm the connector gender, terminal style, and hose sizes before installation. Inspect the EVAP hoses for cracks, soft spots, or loose fittings, and replace damaged lines as needed to maintain a proper seal. Clear diagnostic trouble codes after installation and verify that the purge system operates normally.

Quality Assurance

Standard Ignition supplies emission control components for service replacement applications. CVS61 is cataloged for the listed BMW fitments and built to match the specified connector, terminal, and hose configuration.
