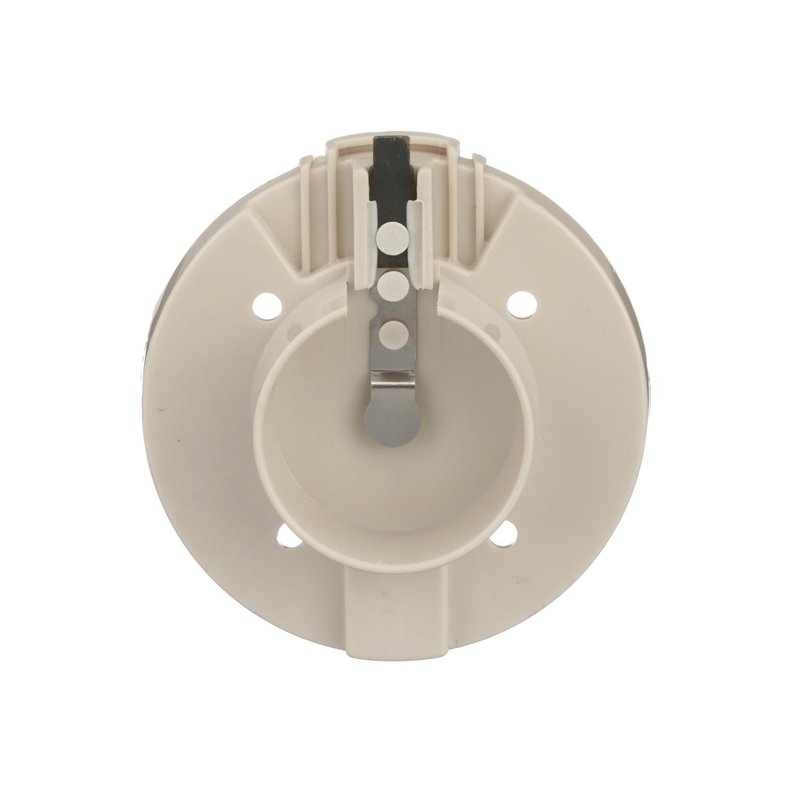

Standard Ignition DR-330 Distributor Rotor

Distributor Rotor for Reliable Ignition Transfer

Standard Ignition DR-330 is a distributor rotor built for stable spark transfer in distributor and magneto ignition systems. It uses a high dielectric-strength polymer body to help prevent arcing, along with a solid brass segment for consistent contact performance.

Key Features

• High dielectric-strength engineering polymer helps resist breakdown and arcing
• Solid brass segment resists pitting and erosion for longer service life
• Shaft retention clips support proper distributor shaft fit
• Stainless steel spring maintains positive contact with the distributor cap brush
• White finish with aluminum contact terminal material

Detailed Description

This Standard Ignition distributor rotor, part number DR-330, is made for ignition systems that rely on precise rotor-to-cap contact. The polymer housing helps isolate electrical energy, while the brass contact segment and stainless steel spring support steady current transfer and corrosion resistance. For buyers searching for a distributor rotor for Standard Ignition DR-330, or a replacement rotor for ignition service on Chevrolet and GMC applications, this part addresses wear at a critical point in the ignition path.

This part cross-references 2-3223 and DR911 for the same application.

What It Helps Address

• Misfire caused by worn rotor contact surfaces
• Arcing inside the distributor cap area
• Corrosion at the rotor spring contact
• Rotor wear from pitting or erosion
• Poor spark transfer through the distributor assembly

Installation Notes and Tips

Inspect the distributor cap, cap brush, and shaft condition before installation. Confirm the rotor seats correctly on the distributor shaft and that the retention clips engage as intended. Match the rotor to the existing distributor design and verify application details before service. Standard Ignition DR-330 is commonly searched as a distributor rotor replacement for Chevrolet and GMC ignition repair.

Quality Assurance

Standard Ignition builds this rotor with materials selected for electrical insulation, contact durability, and corrosion resistance to support dependable ignition performance.
