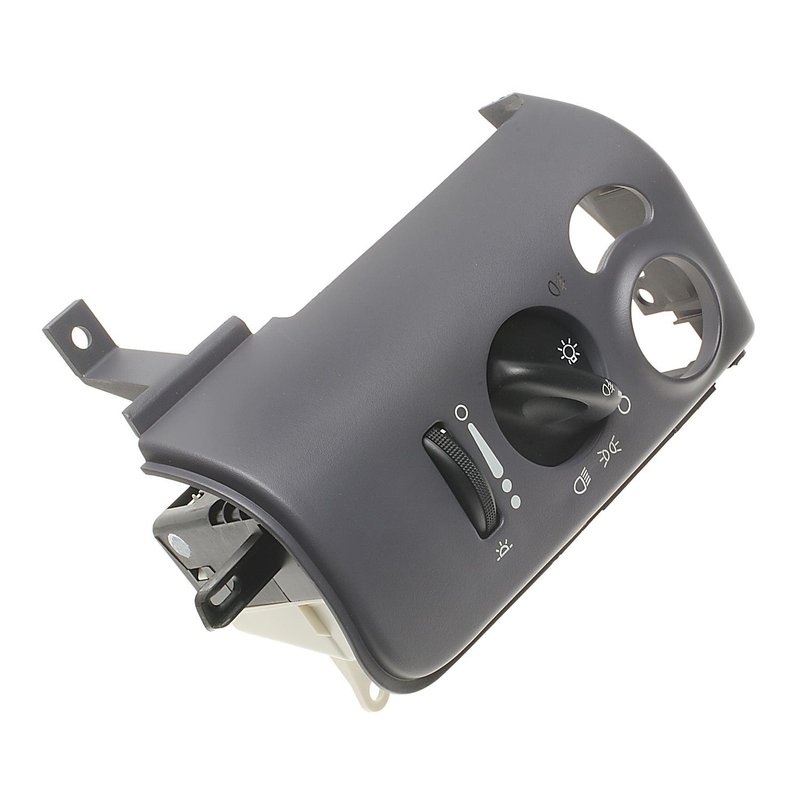

Standard Ignition DS-1146 Headlight Switch

Overview of Standard Ignition Headlight Switch DS-1146

The Standard Ignition DS-1146 headlight switch is designed for reliable operation in select Chrysler, Dodge, and Plymouth vehicles. This combination switch offers precise control over your vehicle's lighting system, ensuring consistent performance for models like the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager.

• Direct snap fit attachment method for secure installation
• Female rectangular connectors with two connection points
• Eighteen male terminals featuring blade and pin types
• Operates on standard 12-volt electrical systems
• Combination switch functionality for integrated lighting control

Technical Details and Features

The DS-1146 headlight switch from Standard Ignition is engineered with a direct snap fit attachment method, allowing for straightforward replacement without additional mounting hardware. It includes two female rectangular connectors that interface with the vehicle's wiring harness, providing a stable and secure electrical connection. The switch features eighteen male terminals, combining blade and pin types to accommodate various circuit requirements within the lighting system. Operating at 12 volts, this switch is compatible with the electrical specifications of Chrysler, Dodge, and Plymouth minivans and wagons, including the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager models.

Compatible Vehicles and Applications

This headlight switch is specifically compatible with the following vehicles:

• Chrysler Caravan
• Chrysler Grand Caravan
• Chrysler Grand Voyager
• Dodge Town & Country
• Plymouth Voyager

It serves as a combination switch, managing multiple lighting functions to maintain proper headlight operation and related controls.

Common Issues Addressed by DS-1146 Headlight Switch

• Intermittent or non-functioning headlights
• Failure of headlight dimmer or high beam controls
• Loose or faulty electrical connections in the lighting circuit
• Malfunctioning combination switch affecting multiple lighting functions
• Wear and tear from extended use causing switch failure

Installation Notes and Tips

Installation of the DS-1146 headlight switch requires disconnecting the vehicle battery to prevent electrical shorts. The direct snap fit design allows for removal of the old switch without additional tools, but care should be taken to avoid damaging the connector terminals. Ensure the female rectangular connectors are fully seated and the eighteen male terminals align correctly with the vehicle wiring harness. After installation, test all lighting functions to confirm proper operation before completing the process.

Quality Assurance and Warranty

Standard Ignition manufactures the DS-1146 headlight switch to meet OEM specifications for fit, form, and function. The switch undergoes rigorous quality control to ensure durability and reliable performance in compatible Chrysler, Dodge, and Plymouth vehicles. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor.
