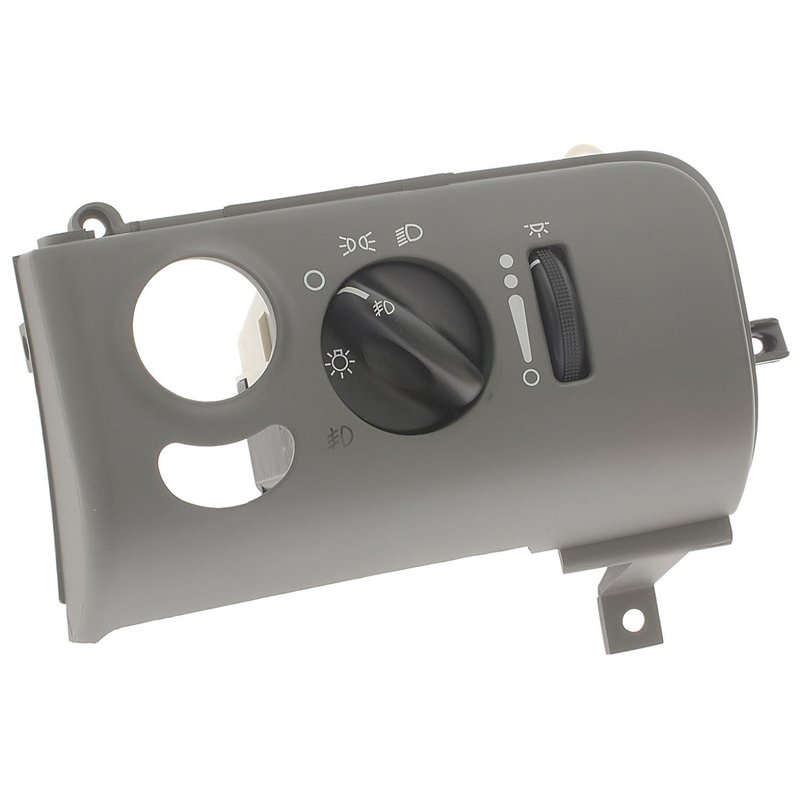

Standard Ignition DS-1147 Headlight Switch

Headlight Switch for Chrysler and Dodge Applications

Standard Ignition DS-1147 is a 12-volt headlight switch built with direct, snap-fit attachment and a rectangular dual-connector layout for service replacement. It is engineered for Chrysler, Dodge, and Plymouth vehicles that use a silver switch design with fog light function and no auto headlights.

Key Features

• Direct, snap-fit attachment method for straightforward replacement
• 12-volt headlight switch with 18 blade and pin terminals
• Female and male rectangular connectors with 2 connector locations
• Functions for headlight control in supported vehicles
• Copper alloy conductors for strong electrical conductivity and reduced resistive loss
• 100% tested for mechanical and electrical switching performance

Detailed Product Overview

Standard Ignition DS-1147 is built for dependable headlight circuit control in select Chrysler Grand Voyager, Town & Country, Voyager, Dodge Caravan, Grand Caravan, and Plymouth Voyager models. The robust construction and high-grade materials are intended for the demands of professional repair work, while the copper alloy conductor design supports efficient current flow through the switch. This part number, DS-1147, also cross-references Standard Ignition S2328 for the same application.

Compatible vehicle coverage includes Fits 2000 Chrysler Grand Voyager, N/A; Fits 1997-2000 Chrysler Town & Country, N/A; Fits 2000 Chrysler Voyager, N/A; Fits 1996-2000 Dodge Caravan, N/A; Fits 1996-2000 Dodge Grand Caravan, N/A; Fits 1997-2000 Plymouth Grand Voyager, N/A; and Fits 1997-2000 Plymouth Voyager, N/A. If you are replacing a worn headlight switch on a Chrysler Town & Country, Dodge Caravan, or Plymouth Voyager, DS-1147 provides the correct electrical and connector configuration for the listed applications.

Common Problems This Part Can Address

• Headlights that do not turn on or respond inconsistently
• Intermittent switch operation at the dash control
• Electrical wear at the headlight switch terminals
• Loss of fog light control in supported vehicles
• Replacement needs after connector or internal switch failure

Installation Notes and Tips

Verify the vehicle uses the listed silver switch style, without auto headlights and with fog lights, before ordering. Match the connector shape, terminal count, and 12-volt electrical specification to the original part. Confirm fitment by year, make, and model for Chrysler Grand Voyager, Town & Country, Voyager, Dodge Caravan, Grand Caravan, and Plymouth Voyager applications. The DS-1147 part number should be compared against the original switch before installation.

Quality Assurance

Standard Ignition states that this switch is 100% tested for both mechanical and electrical switching performance. The design uses copper alloy conductors and durable materials to meet service-repair requirements.
