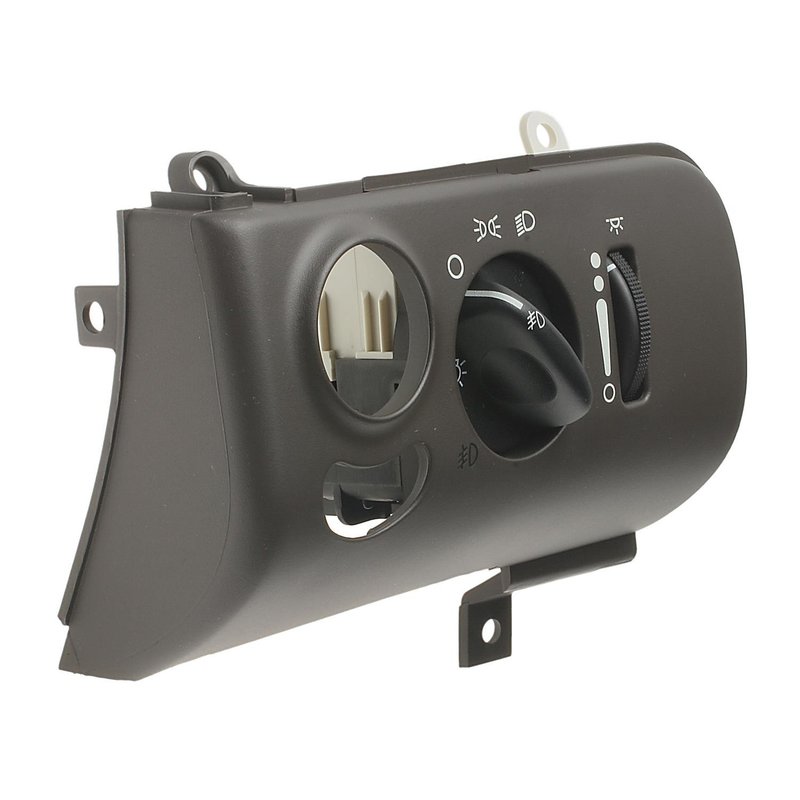

Standard Ignition DS-1148 Headlight Switch

Reliable Headlight Switch for Chrysler, Dodge, and Plymouth Vehicles

The Standard Ignition DS-1148 headlight switch is designed to provide consistent and precise control of your vehicle's lighting system. Engineered for compatibility with Chrysler, Dodge, and Plymouth models, this switch ensures proper functionality and ease of use.

• Direct snap fit attachment method for secure installation
• Female rectangular connectors with two connection points
• Combination switch functionality with four switch positions
• Eighteen male terminals featuring blade and pin types
• Operates on standard 12-volt electrical systems

Technical Details and Compatibility

This headlight switch (part number DS-1148) is specifically designed for use in Chrysler, Dodge, and Plymouth vehicles including Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager models. The switch features a direct snap fit attachment method, allowing for straightforward replacement without the need for additional mounting hardware. It includes two female rectangular connectors that interface with the vehicle wiring harness, supporting a combination switch function with four distinct positions to control various lighting modes.

The switch terminals are male blade and pin types, totaling eighteen in number, ensuring reliable electrical connections within the 12-volt system. This configuration supports multiple lighting functions, making it suitable for vehicles requiring a combination switch setup.

Common Applications and Problem Resolution

• Restores headlight control functionality in Chrysler Caravan and Dodge Grand Caravan
• Replaces faulty or worn headlight switches causing intermittent lighting issues
• Addresses problems with switch positions not engaging properly in Plymouth Voyager
• Solves electrical connection failures due to damaged terminals or connectors
• Improves safety by ensuring consistent operation of vehicle lighting systems

Installation Notes and Tips

Installation of the Standard Ignition DS-1148 headlight switch requires removal of the existing switch from the dashboard or steering column area. The direct snap fit attachment method allows for a secure and straightforward fit without additional tools. Ensure the female rectangular connectors are properly aligned and fully seated to avoid loose connections. Verify all eighteen male terminals are intact and free of corrosion before installation. It is recommended to disconnect the vehicle battery prior to installation to prevent electrical shorts.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The DS-1148 headlight switch undergoes rigorous quality control testing to verify electrical and mechanical integrity. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
