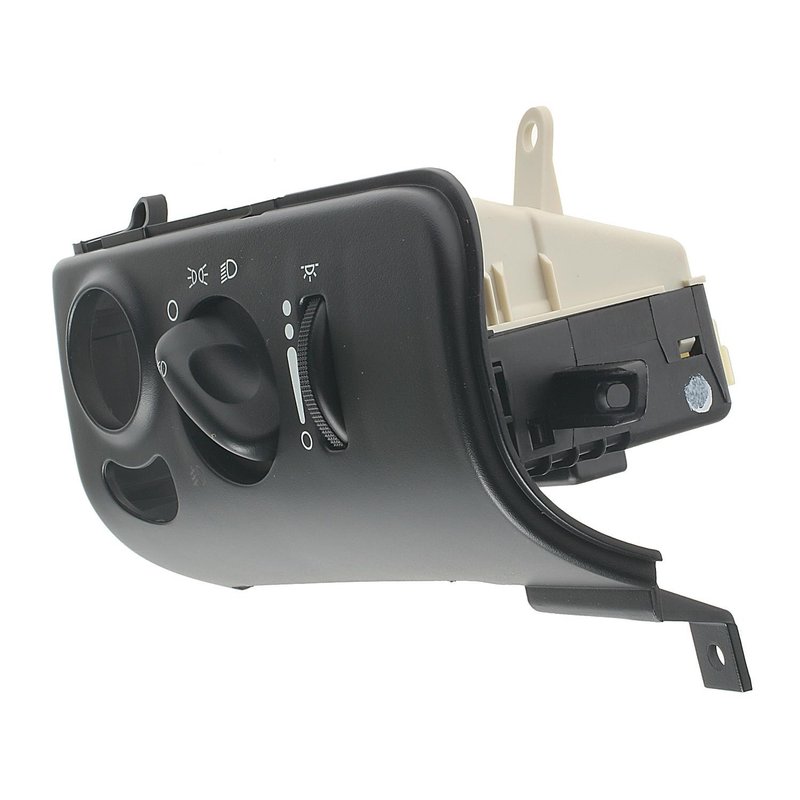

Standard Ignition DS-1149 Headlight Switch

Overview of Standard Ignition DS-1149 Headlight Switch

The Standard Ignition DS-1149 headlight switch is designed for reliable operation in select Chrysler, Dodge, and Plymouth vehicles. This direct snap fit switch ensures seamless integration with your vehicle's electrical system, providing consistent control over your headlights.

• Direct, snap fit attachment method for easy installation
• Female rectangular connectors with two connection points
• Eighteen male terminals featuring blade and pin types
• Operates on standard 12-volt electrical systems
• Compatible with Chrysler Caravan, Dodge Grand Caravan, Plymouth Grand Voyager, Town & Country, and Voyager models

Detailed Product Description

The DS-1149 headlight switch from Standard Ignition is engineered to meet the electrical and lighting needs of various Chrysler, Dodge, and Plymouth minivans. Its direct snap fit attachment method allows for a secure and straightforward replacement process without the need for additional mounting hardware. The switch features two female rectangular connectors, designed to interface with the vehicle’s wiring harness efficiently. With eighteen male terminals combining blade and pin types, this switch supports multiple electrical pathways necessary for headlight operation. Operating at 12 volts, it matches the standard voltage requirements of the specified vehicle models, ensuring compatibility and reliable performance.

Common Applications and Issues Addressed

• Restores headlight functionality in Chrysler Caravan and Dodge Grand Caravan models
• Resolves intermittent or non-responsive headlight switch problems in Plymouth Grand Voyager and Town & Country vehicles
• Eliminates electrical connection issues caused by worn or damaged switch terminals
• Replaces faulty switches that cause headlights to remain off or stuck in the on position
• Improves safety by ensuring proper headlight control in Voyager models

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before beginning installation to prevent electrical shorts
• Verify the connector gender and shape match the vehicle’s wiring harness for a proper fit
• Carefully align the snap fit attachment points to avoid damaging the switch or mounting area
• Check all terminal connections for secure engagement after installation
• Test headlight operation before completing reassembly

Quality Assurance and Warranty Information

Standard Ignition manufactures the DS-1149 headlight switch to meet OEM specifications for fit, form, and function. Each unit undergoes quality control testing to ensure reliable electrical performance and durability. While specific warranty terms may vary, Standard Ignition typically offers coverage against defects in materials and workmanship, providing confidence in the product’s longevity and dependability.
