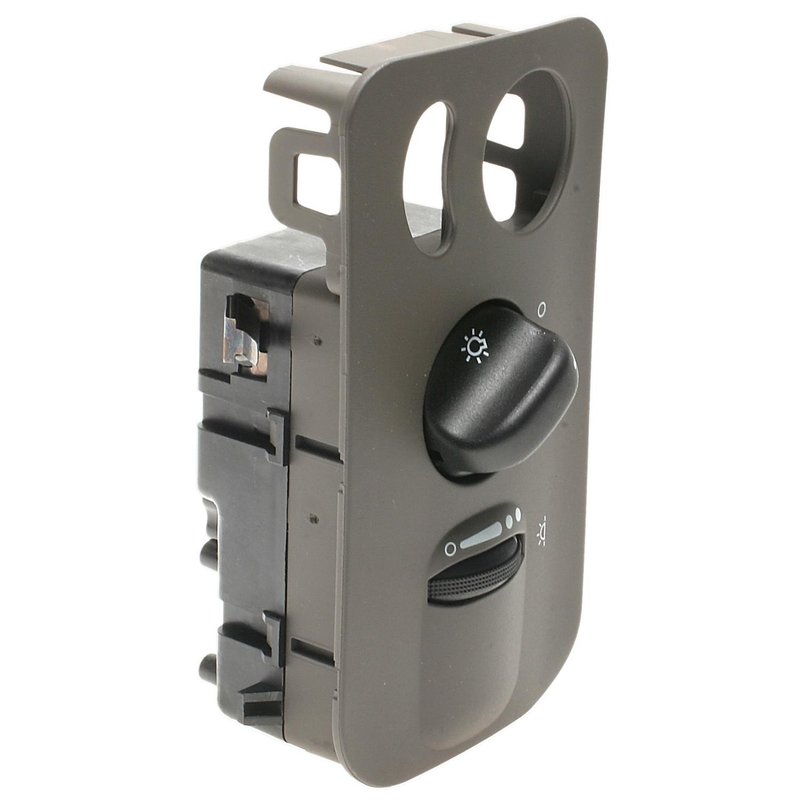

Standard Ignition DS-1151 Headlight Switch

Reliable Headlight Switch for Chrysler and Dodge Vehicles

The Standard Ignition DS-1151 headlight switch is designed to provide consistent and dependable control of your vehicle's headlights. Engineered for select Chrysler and Dodge models, this switch ensures proper electrical function and ease of installation.

• Direct snap fit attachment method for secure installation
• Female rectangular connector with one connection point
• Five male pin terminals for reliable electrical contact
• Operates at standard 12-volt vehicle electrical systems
• Specifically compatible with Chrysler Caravan, Grand Caravan, Town & Country, and Dodge Voyager

Technical Details and Compatibility

This headlight switch (part number DS-1151) features a direct snap fit attachment method, allowing for straightforward replacement without additional hardware. The connector is female with a rectangular shape and a single connection point, designed to mate precisely with the vehicle’s wiring harness. It includes five male pin terminals, ensuring stable electrical connections for headlight operation. Operating at 12 volts, this switch matches the electrical requirements of the Chrysler Caravan, Grand Caravan, Town & Country, and Dodge Voyager models, providing a reliable interface for headlight control.

Common Applications and Problem Resolution

• Restores headlight functionality when the original switch fails or becomes intermittent
• Eliminates issues with flickering or non-responsive headlights
• Replaces worn or damaged switches to maintain vehicle safety compliance
• Addresses electrical connection problems caused by corroded or bent terminals
• Supports proper operation of headlight circuits in Chrysler and Dodge minivans

Installation Notes and Tips

Installation of the Standard Ignition DS-1151 headlight switch is straightforward due to its direct snap fit design. Before installation, disconnect the vehicle battery to prevent electrical shorts. Carefully remove the faulty switch by releasing the snap fit clips, then align the new switch’s rectangular female connector with the vehicle harness and press firmly until it snaps into place. Verify that all five male pin terminals are fully engaged to ensure proper electrical contact. After installation, test the headlights to confirm correct operation.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The DS-1151 headlight switch undergoes rigorous quality control testing to maintain consistent electrical function. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms.
