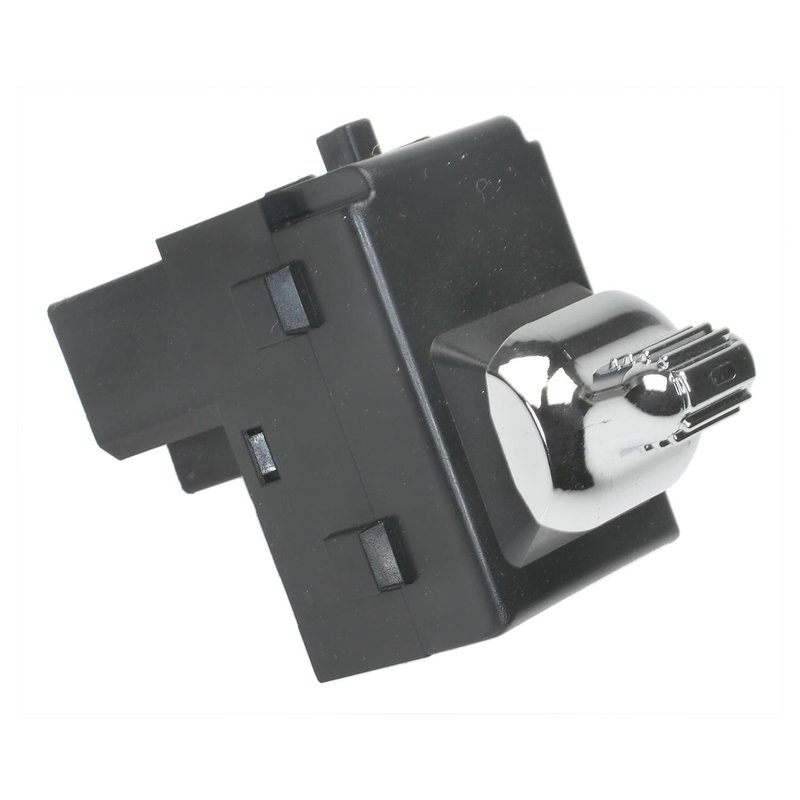

Standard Ignition DS-1178 Door Window Switch - Front Right or Rear

Overview of Standard Ignition DS-1178 Door Window Switch

The Standard Ignition DS-1178 is a reliable power window switch designed specifically for select Chrysler and Dodge models. Engineered to meet OEM specifications, this door window switch ensures consistent operation of your vehicle's power windows.

• Connector Gender: Female
• Functions: Power window switch
• Terminal Gender: Male
• Terminal Quantity: 3 + 2
• Terminal Type: 5 blade terminals
• Voltage: 12V

Technical Details and Compatibility

This DS-1178 door window switch features a female connector and male terminals with a total of five blade terminals arranged as 3 plus 2. It operates on a standard 12-volt electrical system, making it suitable for the power window circuits in compatible vehicles. The switch is designed for use in Chrysler 300M, Concorde, Intrepid, and LHS models, as well as Dodge vehicles with similar configurations. The part number DS-1178 ensures precise fitment and function for these applications.

Common Applications and Problem Resolution

This power window switch is used to control the raising and lowering of the door windows in compatible Chrysler and Dodge vehicles. It addresses several common issues including:

• Non-responsive or intermittent window operation
• Window stuck in one position
• Faulty or worn switch contacts causing erratic window movement
• Electrical connection problems due to damaged terminals
• Replacement of broken or cracked switch housings

Installation Notes and Tips

When installing the DS-1178 door window switch, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Carefully disconnect the existing switch by releasing the female connector and removing the switch from the door panel. Align the 5 blade terminals correctly and connect the new switch firmly to avoid loose connections. Test the window operation before reassembling the door panel to confirm proper installation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards, providing dependable performance and durability. The DS-1178 door window switch undergoes rigorous quality control to ensure reliable operation in Chrysler and Dodge vehicles. Warranty coverage details can be obtained from the product documentation or authorized distributors.
