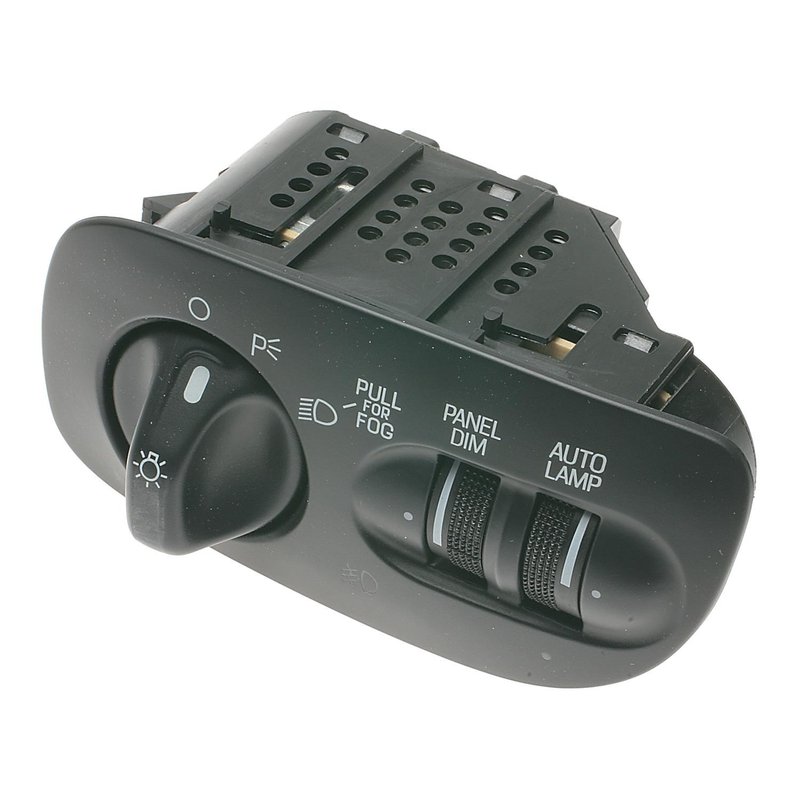

Standard Ignition DS-1294 Headlight Switch
| Brand | Standard Ignition DS-1294 |
|---|---|
| Attachment Method | Direct, Snap Fit |
| Color | Black |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Finish | Plastic |
| Functions | Combination Switch |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Voltage | 12 |
| Fits | Ford · 6 vehicles |
Direct, snap-fit design. Installs cleanly with a secure, no-fuss attachment.
Copper alloy conductors. Deliver strong conductivity with low resistive losses.
100% tested. Verified for mechanical and electrical switching performance.
Cross-references 1S3667, 53-22665 and 89056963 for the same application. See all 9.
Headlight Switch for Ford Fog Light and Auto Headlight Applications
The Standard Ignition DS-1294 headlight switch is built for 12-volt electrical systems and direct, snap-fit replacement needs. It is a combination switch with a black plastic finish, two rectangular female connectors, and 12 male blade terminals for a secure electrical interface.
Compatible With 1997-1998 Ford Expedition, 1997-1998 Ford F-150, and 1997-1998 Ford F-250 equipped with fog lights and auto headlights. The DS-1294 is a practical choice when restoring headlamp control, fog lamp operation, or automatic lighting functions on these Ford trucks and SUVs.
Key Features
- Standard Ignition DS-1294 headlight switch for 12-volt systems
- Direct, snap-fit attachment method for OE-style replacement
- Combination switch function for lighting control
- Black plastic housing with rectangular connector design
- Two female connectors and 12 male blade terminals
- Copper alloy conductors for strong electrical conductivity and low resistive loss
- 100% tested for mechanical and electrical switching performance
Detailed Description
Standard Ignition DS-1294 is engineered for service replacement in Ford lighting circuits that use fog lights and auto headlights. Its robust construction and copper alloy conductors support consistent current flow, while the tested switching design helps ensure dependable operation of the headlight control circuit. For technicians and owners searching for a Ford Expedition headlight switch or a Ford F-150 headlight switch, this part number provides a direct-fit solution for the specified applications.
This part cross-references 1S3667 and HL110 for the same application.
What It Helps Fix
- Headlights that do not turn on or off correctly
- Fog lights that fail to respond through the switch
- Intermittent lighting control caused by worn internal contacts
- Automatic headlight function issues tied to the switch assembly
- Loose, damaged, or heat-worn switch terminals
Installation Notes and Tips
Verify connector shape, terminal count, and vehicle equipment before installation. This DS-1294 headlight switch uses a direct, snap-fit attachment method and is intended for 12-volt Ford applications with fog lights and auto headlights. Compare the original switch layout to confirm the rectangular connectors and blade-terminal configuration match your vehicle.
Quality Assurance
Standard Ignition builds this switch with service-focused materials and tests each unit for mechanical and electrical switching performance. The design reflects long-term development aimed at meeting technician requirements in routine electrical repair.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1998 | Ford | Expedition | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 1998 | Ford | F-150 | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 1998 | Ford | F-250 | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 1997 | Ford | Expedition | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 1997 | Ford | F-150 | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 1997 | Ford | F-250 | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
