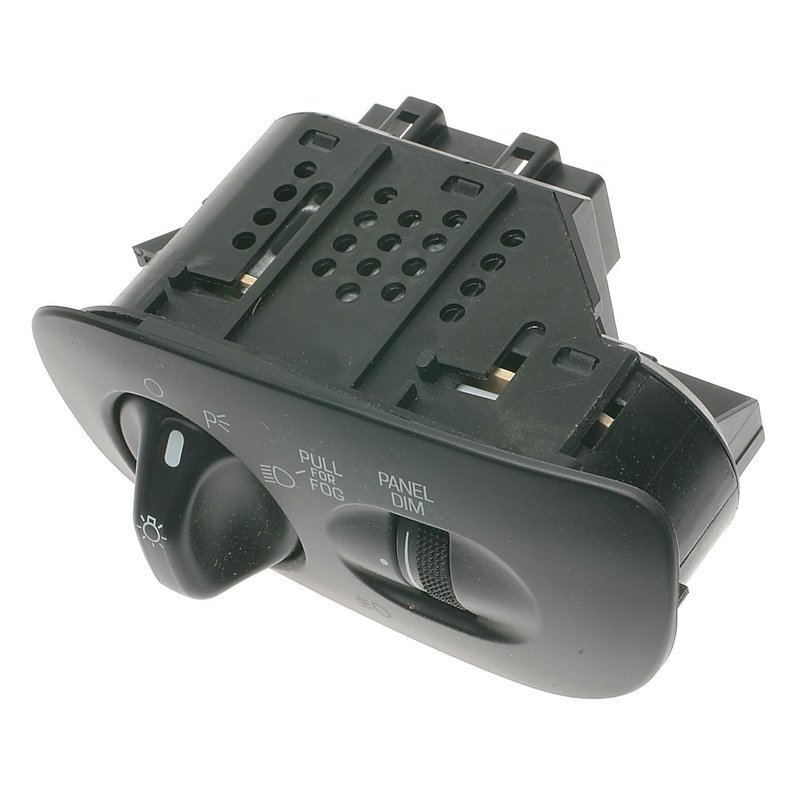

Standard Ignition DS-1377 Headlight Switch

Overview of Standard Ignition Headlight Switch DS-1377

The Standard Ignition DS-1377 headlight switch is designed for reliable operation in Ford vehicles, including the Expedition, F-150, and F-250 models. This combination switch offers a direct snap fit attachment method, ensuring a secure and straightforward installation process.

• Direct, snap fit attachment method for easy installation
• Female rectangular connector with one connector quantity
• 12 male blade terminals for secure electrical connections
• Operates at 12 volts, compatible with standard vehicle electrical systems
• Combination switch functionality for multiple lighting controls

Technical Details and Features

The DS-1377 headlight switch from Standard Ignition features a female rectangular connector designed to interface with the vehicle's wiring harness. It includes a single connector and 12 male blade terminals, providing robust and reliable electrical contact. The direct snap fit attachment method allows the switch to be installed without additional hardware, reducing installation time and complexity. Operating at 12 volts, this switch is engineered to meet the electrical requirements of Ford Expedition, F-150, and F-250 models, ensuring compatibility and consistent performance.

Compatible Vehicles and Applications

This headlight switch is specifically compatible with Ford vehicles, including the Expedition, F-150, and F-250. It is intended for use as a combination switch, controlling multiple lighting functions within these models. The part number DS-1377 should be referenced when searching for replacement headlight switches for these Ford trucks and SUVs.

• Replaces faulty or worn headlight switches in Ford Expedition, F-150, and F-250
• Resolves issues with intermittent or non-functioning headlights
• Addresses problems with combination switch lighting controls
• Fixes electrical connection failures due to damaged terminals or connectors
• Restores proper operation of vehicle lighting systems

Installation Notes and Tips

Installation of the Standard Ignition DS-1377 headlight switch requires disconnecting the vehicle battery to ensure safety. The direct snap fit design allows the switch to be installed without additional fasteners. Ensure the female rectangular connector is properly aligned and fully seated to avoid electrical issues. Verify all 12 blade terminals are correctly connected to maintain full switch functionality. Consult the vehicle’s service manual for detailed removal and installation procedures specific to Ford Expedition, F-150, and F-250 models.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing dependable performance and durability. The DS-1377 headlight switch undergoes rigorous quality control to ensure reliable operation in demanding automotive environments. Please refer to Standard Ignition’s warranty policy for coverage details on this part number.
