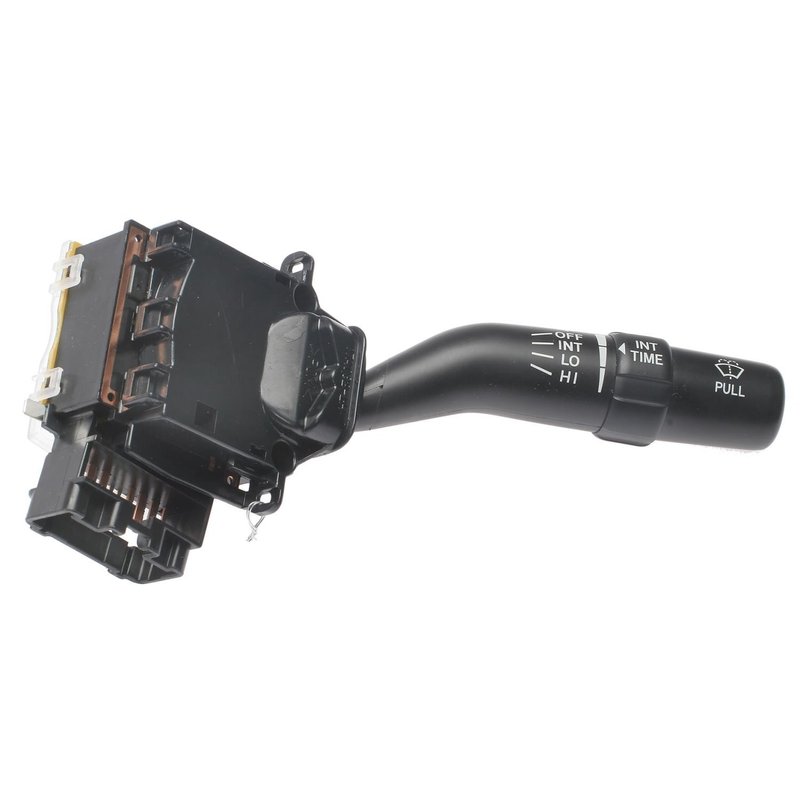

Standard Ignition DS-1970 Windshield Wiper Switch

Overview of Standard Ignition DS-1970 Wiper Switch for Toyota Avalon

The Standard Ignition DS-1970 wiper switch is designed specifically for Toyota Avalon models, providing reliable control over your vehicle's windshield wiper system. Engineered to meet OEM specifications, this 12-volt wiper switch ensures consistent performance and durability.

• Compatible with Toyota Avalon vehicles
• 12-volt electrical rating for standard automotive systems
• Female connector and 16 male blade terminals for secure connections
• Blade-type terminals designed for reliable electrical contact
• Part number DS-1970 for easy identification and replacement

Technical Details and Attributes

This wiper switch features a female connector gender paired with 16 male blade terminals, ensuring a secure and stable electrical connection within the vehicle's wiring harness. The blade terminal type is commonly used in automotive applications for its ease of installation and reliable conductivity. Operating at 12 volts, the DS-1970 is compatible with the electrical system of the Toyota Avalon, maintaining proper function of the windshield wiper controls.

Function and Application

The Standard Ignition DS-1970 wiper switch is used to control the windshield wiper motor and washer system in Toyota Avalon vehicles. It addresses several common issues, including:

• Intermittent or non-responsive windshield wiper operation
• Failure to activate washer fluid spray
• Inconsistent wiper speed settings
• Electrical connection problems due to worn or damaged switch terminals
• Complete switch failure resulting in loss of wiper control

Installation Notes and Tips

When installing the DS-1970 wiper switch, ensure the vehicle's battery is disconnected to prevent electrical shorts. Verify the connector gender and terminal type match the existing wiring harness. The 16 male blade terminals should align precisely with the female connector on the vehicle side. Properly seat the switch to avoid loose connections that could cause intermittent operation. Consult the Toyota Avalon service manual for detailed wiring diagrams and torque specifications.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards, ensuring reliable fit and function. The DS-1970 wiper switch undergoes rigorous quality control testing to maintain consistent performance. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
