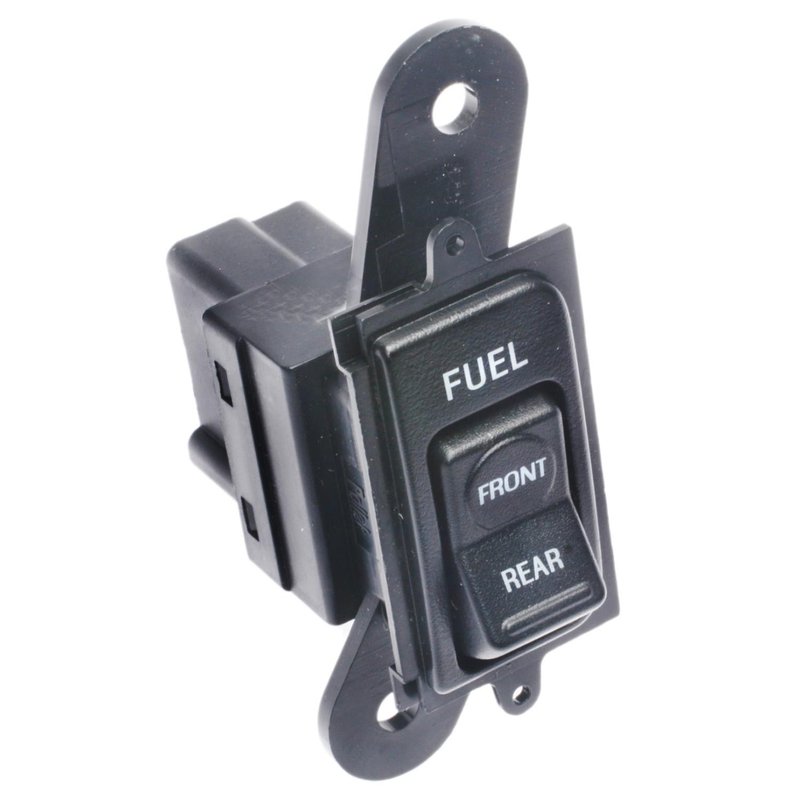

Standard Ignition DS-2268 Fuel Tank Selector Switch

Overview of Standard Ignition Fuel Tank Selector Switch DS-2268

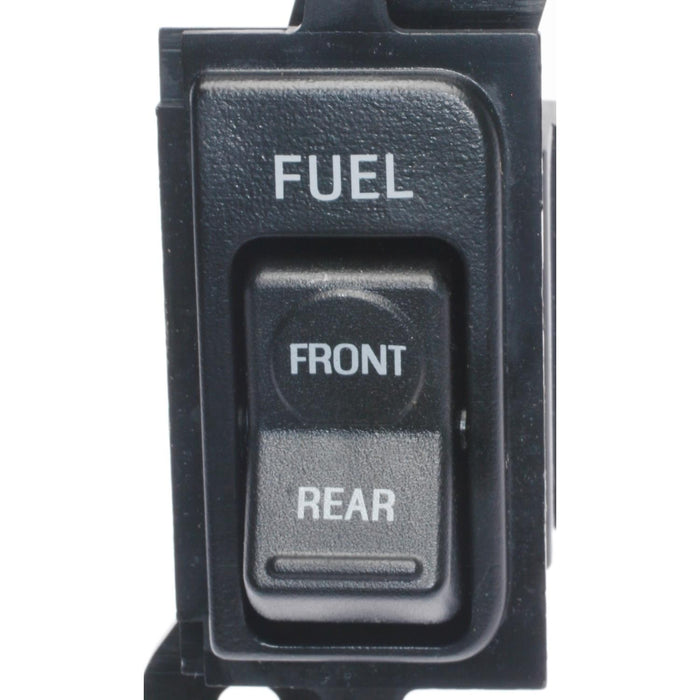

The Standard Ignition DS-2268 fuel tank selector switch is designed for reliable operation in Ford trucks, including the F-150, F-250, and F-350 models. This switch features a female connector and six male blade terminals, ensuring secure and efficient fuel tank selection.

• Compatible with Ford F-150, F-250, and F-350 models
• Connector gender: Female for easy connection
• Terminal gender: Male with six blade terminals
• Part number DS-2268 for precise identification
• Category: Air and Fuel Delivery > Switches, Solenoids and Actuators

Technical Details and Attributes

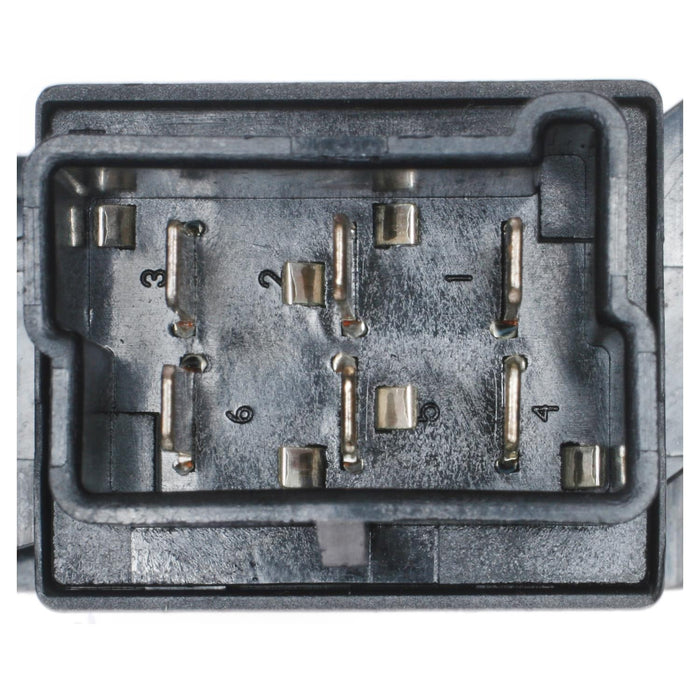

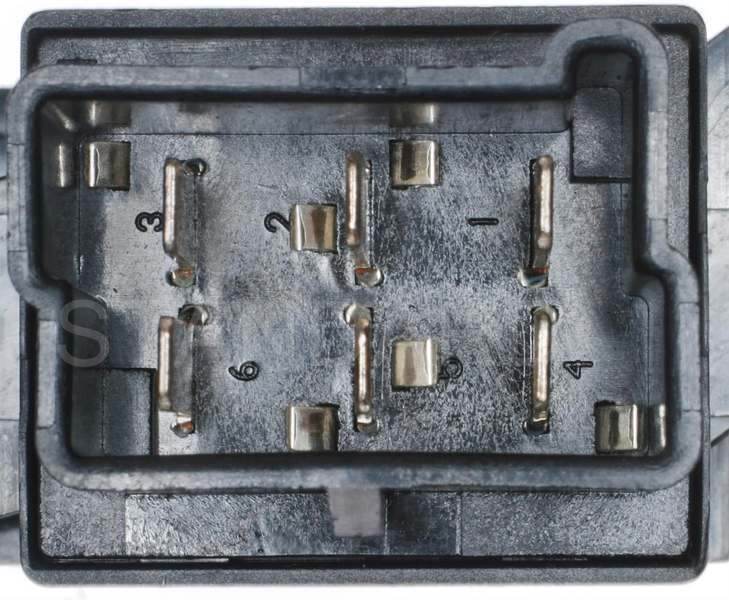

The DS-2268 fuel tank selector switch includes six male blade terminals that provide a stable electrical connection, minimizing the risk of disconnection or signal loss. The female connector design allows for straightforward installation and compatibility with existing wiring harnesses in Ford trucks. This switch is part of the air and fuel delivery system, specifically designed to control fuel tank selection in vehicles equipped with dual fuel tanks.

Applications and Problem Solving

This fuel tank selector switch is used to manage fuel flow between multiple tanks in Ford trucks, ensuring optimal fuel usage and vehicle operation. It addresses several common issues:

• Eliminates fuel delivery interruptions caused by faulty switches
• Prevents incorrect fuel tank selection that can lead to engine performance problems
• Resolves electrical connection failures with durable blade terminals
• Supports dual fuel tank systems in Ford F-150, F-250, and F-350 models

Installation Notes and Tips

When installing the DS-2268 switch, ensure the female connector aligns properly with the vehicle’s wiring harness. Verify that all six male blade terminals are securely connected to prevent electrical faults. It is recommended to disconnect the battery before installation to avoid electrical shorts. Follow vehicle-specific service manuals for detailed wiring diagrams and torque specifications.

Quality Assurance and Warranty

Standard Ignition parts undergo rigorous testing to meet OEM standards for durability and performance. The DS-2268 fuel tank selector switch is manufactured to provide consistent operation within Ford trucks’ fuel delivery systems. Warranty coverage details should be confirmed with the product documentation or supplier, ensuring peace of mind with your purchase.
