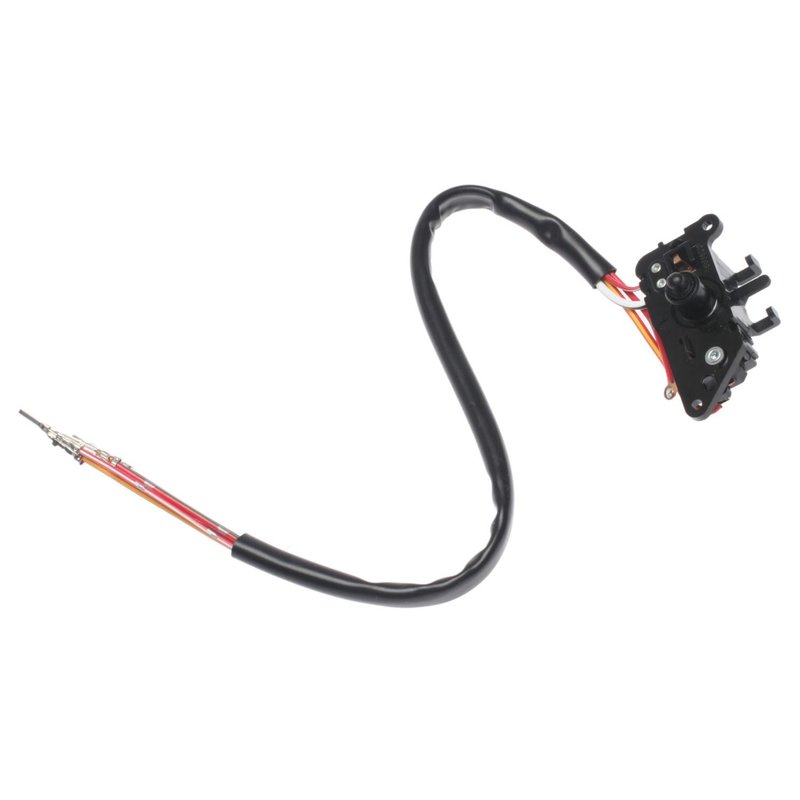

Standard Ignition DS-2284 Headlight Dimmer Switch
| Brand | Standard Ignition DS-2284 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black |
| Finish | Plastic |
| Mounting Location | Steering Column |
| Terminal Gender | Male |
| Terminal Type | Wire Lead, Blade |
| Voltage | 12 |
| Fits | Toyota · 5 vehicles |
Bolt-on design. Installs securely with a straightforward attachment method.
Black plastic finish. Provides a clean, durable look for the switch housing.
12-volt switch. Built for standard electrical systems with 4 terminals.
Cross-references Standard Ignition DS-2284, 8414012370 and PA1061 for the same application. See all 5.
Headlight Dimmer Switch for Toyota Corolla
Standard Ignition DS-2284 is a headlight dimmer switch for select Toyota Corolla applications with a steering column mount and 12-volt electrical systems. It uses a bolt-on attachment method and a black plastic housing with male terminals for a direct replacement-style repair.
Use this switch when the high/low beam control on a Toyota Corolla needs a dependable steering column-mounted replacement. Standard Ignition DS-2284 is built around the original connector style and terminal layout for the listed vehicles.
Key Features
- Headlight dimmer switch for steering column installation
- 12-volt electrical component
- Bolt-on attachment method
- Black plastic finish and housing
- Male terminals with wire lead and blade terminal types
- Direct-fit replacement for select Toyota Corolla models
Detailed Description
Standard Ignition DS-2284 is an electrical switch used to control headlight beam selection in the vehicle interior. It mounts on the steering column and is specified with 4 male terminals, wire lead and blade terminal types, and a black plastic finish. This part fits 1994-1996 Toyota Corolla, w/o intermittent wipers; switch only, and 1993 Toyota Corolla, w/o tilt wheel; Matsushita; built in Japan; dash mounted. For Toyota Corolla dimmer switch replacement work, DS-2284 provides the correct fitment details for the listed configurations.
This part cross-references 8414012370 and SW5227 for the same application.
What It Helps Fix
- Inoperative high/low beam switching
- Intermittent headlight beam selection
- Worn or damaged steering column switch contacts
- Electrical issues at the headlight dimmer control
- Replacement needs on select Toyota Corolla dimmer switch applications
Installation Notes and Tips
Verify the vehicle’s year, trim, steering column configuration, and listed notes before installation. This DS-2284 switch is specified for 1994-1996 Toyota Corolla without intermittent wipers and for 1993 Toyota Corolla without tilt wheel, Matsushita, built in Japan, dash mounted. Match the terminal style and mounting location to the original part before connecting the wiring.
Quality Assurance
Standard Ignition is a recognized aftermarket brand for electrical replacement parts. DS-2284 is built to match the listed application details for Toyota Corolla headlight dimmer switch service.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 1996 | Toyota | Corolla | Wagon | N/A | w/o Intermittent Wipers; Switch Only |
| 1995 | Toyota | Corolla | Wagon | N/A | w/o Intermittent Wipers; Switch Only |
| 1994 | Toyota | Corolla | Wagon | N/A | w/o Intermittent Wipers; Switch Only |
| 1993 | Toyota | Corolla | Sedan | N/A | w/o Tilt Wheel; Matsushita; Built In Japan; Dash Mounted |
| 1993 | Toyota | Corolla | Wagon | N/A | w/o Tilt Wheel; Matsushita; Built In Japan; Dash Mounted |
