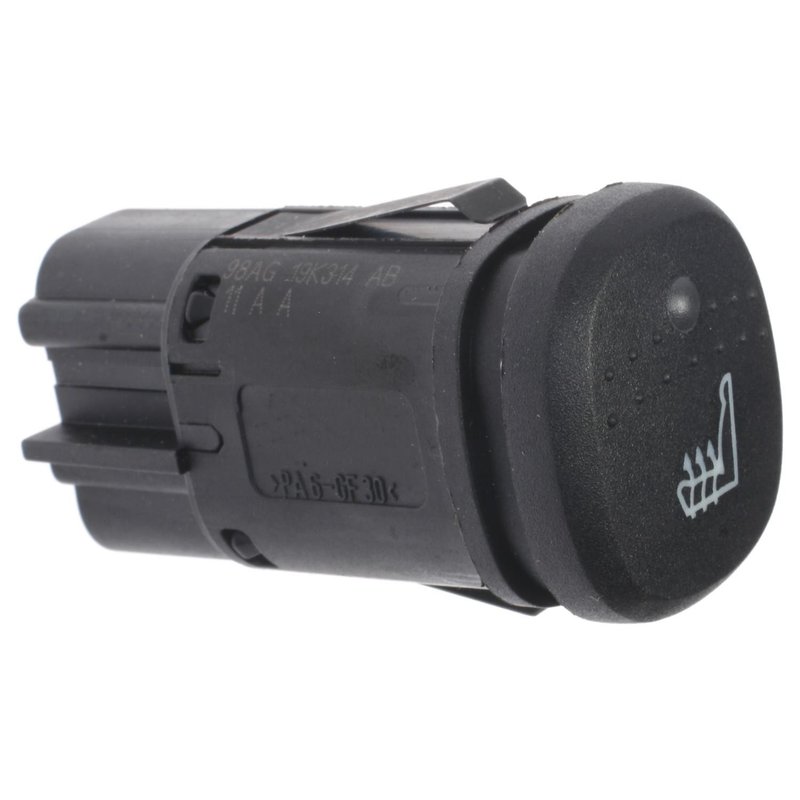

Standard Ignition DS-3004 Seat Heater Switch - Front

Overview of Standard Ignition DS-3004 Seat Heater Switch

The Standard Ignition DS-3004 seat heater switch is designed for reliable operation in select Ford and Mercury vehicles. This switch provides precise control for seat heating functions, ensuring comfort during colder conditions.

• Connector Gender: Female for secure connection
• Terminal Gender: Male terminals for compatibility
• Terminal Quantity: 5 terminals to support multiple circuits
• Terminal Type: 5 blade terminals for standard automotive connections
• Compatible with Ford and Mercury models including Escape, Explorer, F-250 Super Duty, and more

Detailed Product Description

The DS-3004 seat heater switch from Standard Ignition features a female connector and five male blade terminals, designed to integrate seamlessly with the vehicle’s electrical system. The five blade terminals provide a robust connection, supporting the necessary circuits for seat heating elements. This switch is engineered to meet the electrical and mechanical specifications required by Ford and Mercury vehicles such as the Escape, Explorer Sport Trac, F-350 Super Duty, and Mountaineer. Its design ensures consistent performance and durability under typical automotive conditions.

Applications and Problem Resolution

This seat heater switch is used to control the heating elements in vehicle seats, providing adjustable warmth for driver and passenger comfort. It addresses several common issues:

• Non-responsive or faulty seat heater controls
• Intermittent heating due to poor electrical connections
• Damaged or worn switch terminals causing heating failure
• Compatibility issues with original equipment seat heater switches
• Replacement for switches in Ford Escape, Explorer, and F-250 Super Duty models

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to prevent electrical shorts
• Verify connector gender and terminal type match the vehicle’s wiring harness
• Use appropriate tools to avoid damaging blade terminals during installation
• Test the switch operation before reassembling the dashboard or seat panel
• Consult the vehicle’s service manual for specific wiring diagrams and installation procedures

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The DS-3004 seat heater switch undergoes rigorous quality control to ensure reliable performance. Warranty coverage details should be confirmed with the product documentation or supplier, as they may vary by region or distributor.
