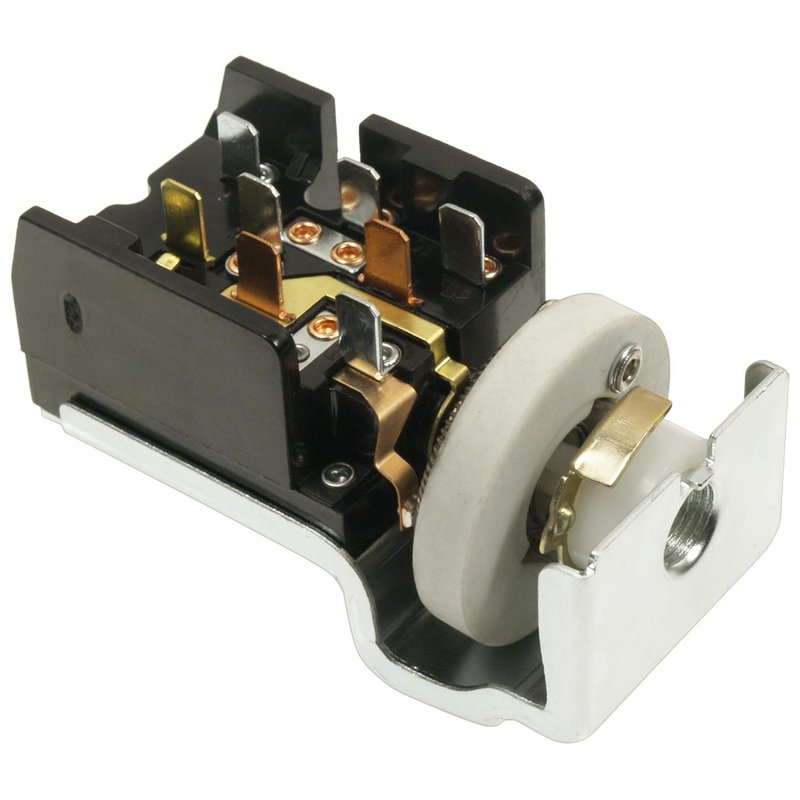

Standard Ignition DS-690 Headlight Switch

Headlight Switch for Ford and Mercury Applications

Restore reliable headlight control with Standard Ignition DS-690. This 12-volt headlight switch is built with copper alloy conductors for strong electrical conductivity and low resistive loss, helping maintain consistent switching performance in daily service use. It is a direct, snap-fit replacement for select Ford and Mercury vehicles, including 1984-1985 Ford E-150 Econoline, E-250 Econoline, E-350 Econoline, and 1980 Ford Pinto and Mercury Bobcat applications.

Key Features

• Direct, snap-fit attachment method for straightforward replacement
• Female connector with one rectangular connector interface
• 8 blade terminals with male terminal design
• 12-volt headlight switch function
• Copper alloy conductors for improved electrical conductivity
• 100% tested for mechanical and electrical switching performance
• Standard Ignition DS-690 replacement part number for service identification

Detailed Description

Standard Ignition DS-690 is a headlight switch engineered for dependable operation in older Ford and Mercury platforms. It is built with durable materials and tested to verify both mechanical actuation and electrical switching performance. For technicians servicing a Ford E-150 Econoline headlight switch, Ford E-250 Econoline headlight switch, Ford E-350 Econoline headlight switch, or a 1980 Ford Pinto or Mercury Bobcat lighting circuit, this part provides the correct electrical layout and connector style for the listed applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Headlights that do not turn on or respond inconsistently
• Intermittent lighting operation caused by worn internal switch contacts
• Electrical resistance issues at the headlight switch circuit
• Loose or damaged switch connection points
• Dim or unreliable headlight control from a failing dash switch

Installation Notes and Tips

Verify connector shape, terminal count, and voltage before installation. Confirm vehicle fitment by year and model, especially for 1984 Ford Econoline and Club Wagon applications built from 3/84 onward. Match the existing dash switch configuration and inspect the harness connector for heat damage or corrosion before connecting the replacement. Standard Ignition DS-690 is intended for direct replacement in the listed vehicles, including 1985 Ford E-150 Econoline and related Econoline Club Wagon models.

Quality Assurance

Standard Ignition uses robust construction, copper alloy conductors, and full mechanical and electrical testing to support consistent service performance. The DS-690 reflects the brand’s long-term focus on technician-oriented electrical parts and dependable switching operation.
