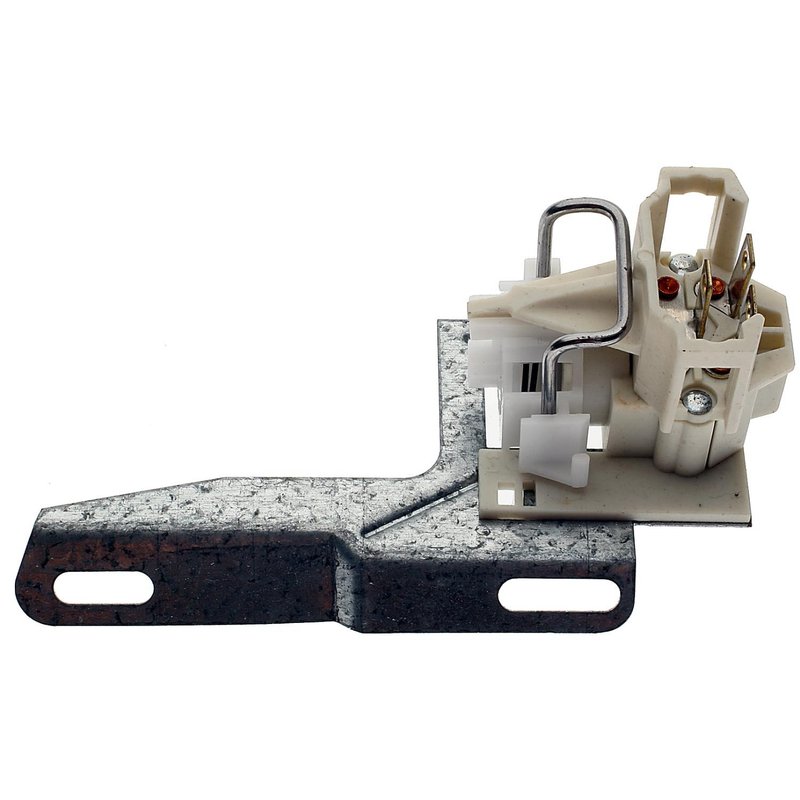

Standard Ignition DS-697 Headlight Dimmer Switch

Overview of Standard Ignition Headlight Dimmer Switch DS-697

The Standard Ignition DS-697 headlight dimmer switch is designed for reliable operation in Chevrolet and GMC vehicles, including G10, G20, G30, P30, and P3500 models. This switch provides consistent control over your vehicle's headlight dimming function with a durable bolt-on attachment method.

• Bolt-on attachment for secure mounting
• Silver and white color finish with aluminum and plastic materials
• Female rectangular connector with one connector
• Three male blade terminals for electrical connection
• Designed for 12-volt electrical systems
• Dashboard mounting location for easy access

Detailed Product Description

The DS-697 headlight dimmer switch from Standard Ignition is engineered to meet the electrical and lighting needs of Chevrolet and GMC vans and trucks, specifically the G10, G20, G30, P30, and P3500 models. Featuring a bolt-on attachment method, this switch ensures a secure and stable installation on the dashboard. The switch's housing combines aluminum and plastic for durability and corrosion resistance, finished in silver and white to match the vehicle's interior components.

Electrical connectivity is facilitated through a single female rectangular connector and three male blade terminals, designed to fit seamlessly with the vehicle's wiring harness. Operating at 12 volts, this switch is compatible with the standard electrical system of the specified Chevrolet and GMC models. The design supports reliable headlight dimming control, contributing to safe driving conditions.

Common Applications and Issues Addressed

• Replacement for faulty or worn headlight dimmer switches in Chevrolet G10, G20, G30, P30, and P3500 vehicles
• Restores proper headlight dimming functionality
• Eliminates intermittent or non-responsive headlight dimmer operation
• Resolves dashboard mounting issues due to damaged switch attachment
• Addresses electrical connection problems caused by worn terminals or connectors

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical shorts
• Use appropriate tools to remove the old switch and bolt on the DS-697 securely to the dashboard
• Verify the female rectangular connector aligns correctly with the vehicle wiring harness
• Check that all three male blade terminals are properly seated for optimal electrical contact
• Test headlight dimmer functionality before reassembling dashboard components

Quality Assurance and Warranty

Standard Ignition manufactures the DS-697 headlight dimmer switch to meet OEM specifications for Chevrolet and GMC vehicles. The combination of aluminum and plastic materials ensures durability and resistance to wear. This part is backed by Standard Ignition's quality standards, providing confidence in fit and function. Please refer to Standard Ignition's warranty policy for specific coverage details.
