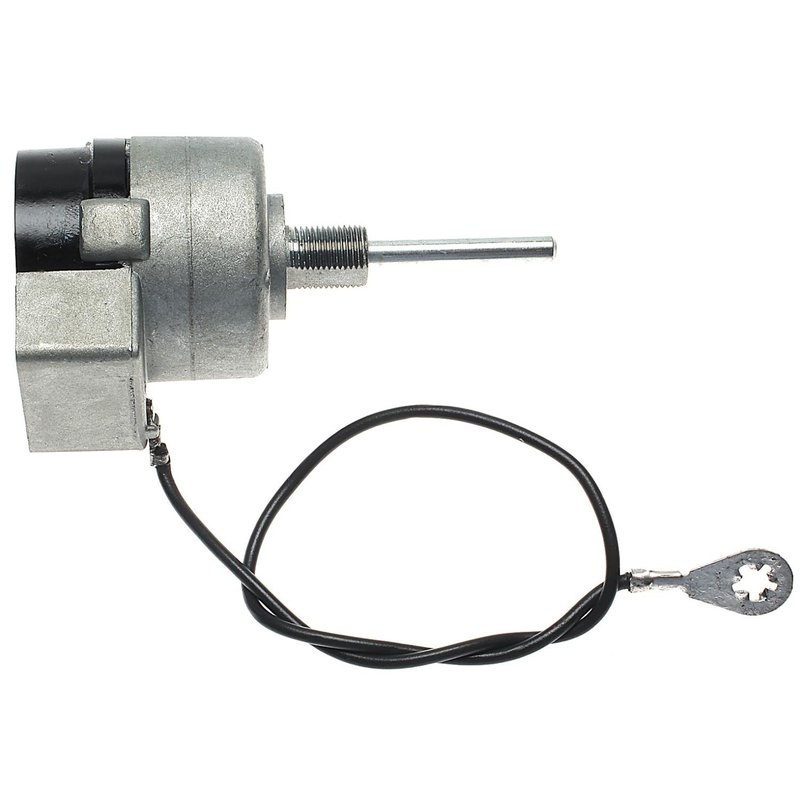

Standard Ignition DS-700 Windshield Wiper Switch

Reliable Wiper Switch for Ford and Mercury Vehicles

The Standard Ignition DS-700 wiper switch is designed to provide consistent and precise control of your vehicle's windshield wipers. Engineered for select Ford and Mercury models, this switch ensures proper functionality and durability for your Bronco, F-100, F-150, F-250, F-350, and Montego.

• Connector Gender: Female for secure connection
• Terminal Gender: Male terminals for reliable contact
• Terminal Quantity: 7 terminals to support multiple functions
• Terminal Type: Combination of blade and eye ring terminals for versatile installation
• Compatible with Ford and Mercury trucks and SUVs

Technical Details and Compatibility

The DS-700 wiper switch from Standard Ignition features a female connector and seven male terminals, combining blade and eye ring types to accommodate various wiring configurations. This design supports the electrical requirements of your vehicle’s wiper system, ensuring smooth operation and responsiveness. The switch is specifically compatible with Ford Bronco, F-100, F-150, F-250, F-350, and Mercury Montego models, making it a suitable replacement part for these vehicles.

Common Applications and Problem Resolution

This wiper switch is used to control the windshield wiper motor and washer functions. It addresses several common issues, including:

• Intermittent or non-functioning windshield wipers
• Failure of wiper speed control
• Inoperative washer pump activation
• Loose or faulty electrical connections in the wiper control circuit
• Wear and tear from extended use causing switch failure

Installation Notes and Tips

When installing the DS-700 wiper switch, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Verify the connector gender and terminal types match your vehicle’s wiring harness. The seven terminals include both blade and eye ring types, so confirm proper terminal seating and secure connections. Refer to the vehicle’s service manual for detailed wiring diagrams and switch removal procedures to avoid damage to the steering column or dashboard components.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and fitment. The DS-700 wiper switch undergoes rigorous quality control to ensure durability and consistent operation. Warranty coverage details are available through Standard Ignition and typically include protection against defects in materials and workmanship for a specified period.
