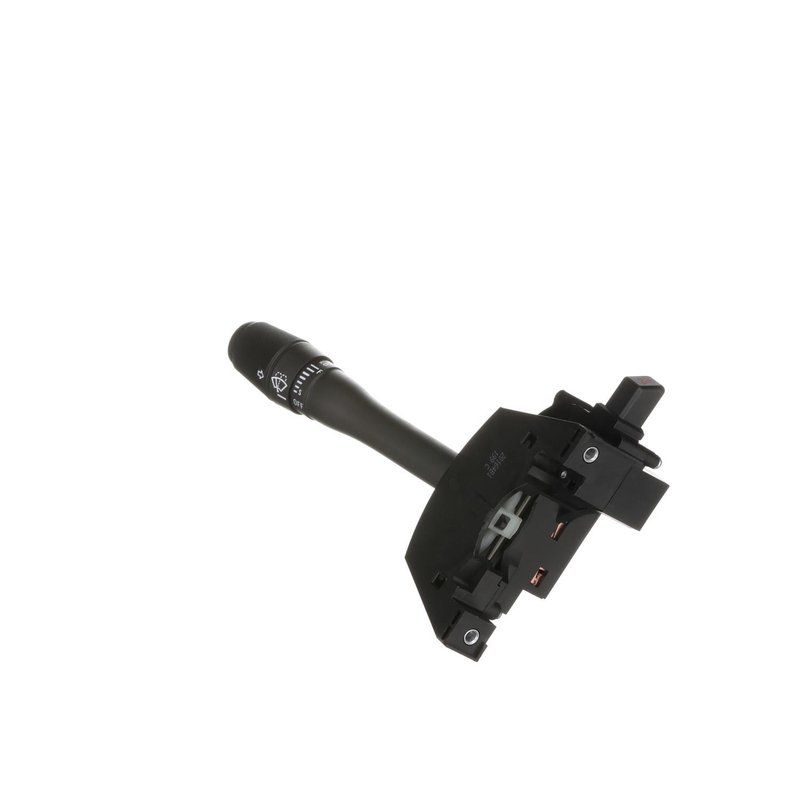

Standard Ignition DS-743 Headlight Dimmer Switch

Overview of Standard Ignition Headlight Dimmer Switch DS-743

The Standard Ignition DS-743 headlight dimmer switch is designed specifically for Ford Mustang models, providing reliable control over your vehicle's lighting functions. This new combination switch offers essential features such as turn signal control and high beam operation in a durable, bolt-on design.

• Compatible with Ford Mustang vehicles
• Combination switch with turn signal and high beam functions
• Bolt-on attachment method for secure installation
• Black plastic finish with rectangular female connector
• Includes indicator markings and latching high beam operator
• 14 male blade terminals with 2 connector cavities
• Momentary high beam flasher included
• 7 wiper delay and 3 wiper speed settings integrated

Detailed Product Description

The Standard Ignition DS-743 headlight dimmer switch is engineered to meet the electrical and lighting control needs of Ford Mustang vehicles. Featuring a combination switch design, it integrates turn signal control, latching high beam operation, and a momentary high beam flasher for enhanced driver convenience. The switch is finished in black plastic and mounts securely using a bolt-on method. It connects via a single rectangular female connector with two cavities, supporting 14 male blade terminals to ensure reliable electrical contact. Additionally, the switch includes indicator markings for clear visibility and supports multiple wiper speed and delay settings, although it does not include cruise control or fog light operators.

Common Applications and Issues Addressed

• Replacement for faulty or worn headlight dimmer switches on Ford Mustang
• Restores proper turn signal and high beam functionality
• Resolves intermittent or non-responsive headlight dimming issues
• Fixes problems with wiper speed and delay controls integrated in the switch
• Eliminates electrical connection failures due to damaged terminals or connectors

Installation Notes and Tips

• Ensure vehicle ignition is off before beginning installation
• Use appropriate tools to remove the old switch and bolt on the new DS-743 securely
• Verify connector orientation matches the rectangular female connector on the switch
• Check all 14 blade terminals for proper seating to avoid electrical faults
• Test all functions including turn signals, high beams, and wiper settings after installation

Quality Assurance and Warranty

The Standard Ignition DS-743 headlight dimmer switch is a new replacement part manufactured to meet OEM specifications for Ford Mustang vehicles. It undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship to provide confidence in your purchase.
