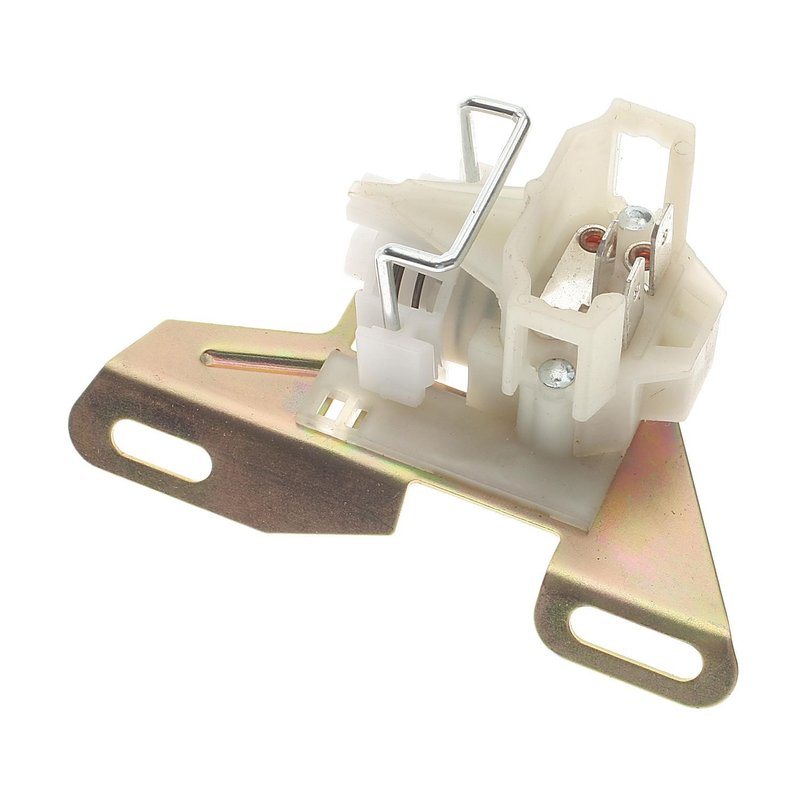

Standard Ignition DS-77 Headlight Dimmer Switch

Headlight Dimmer Switch for GM and Jeep Applications

Standard Ignition DS-77 is a 12-volt headlight dimmer switch built for dashboard-mounted applications with a bolt-on attachment method. It uses copper alloy conductors for strong electrical conductivity and low resistive loss, and each unit is tested for mechanical and electrical switching performance.

Compatible With vehicles such as Chevrolet C1500, GMC K2500, Buick Roadmaster, and Jeep Cherokee applications that use the listed connector and terminal configuration. The DS-77 is a direct-fit style replacement for many GM trucks, cars, and select Jeep and Toyota models.

Key Features

• 12-volt headlight dimmer switch for dashboard mounting
• Bolt-on attachment method with one rectangular female connector
• 3 male blade terminals for the specified electrical interface
• Copper alloy conductors for efficient current transfer
• 100% tested for mechanical and electrical switching performance
• Standard Ignition DS-77 cross-references OE-style replacement applications

Detailed Description

The Standard Ignition DS-77 is engineered for vehicles that route headlight dimmer control through a dashboard-mounted switch assembly. Its robust construction and copper alloy conductor design support consistent electrical switching in daily service use. This part number, DS-77, is used across a wide range of Chevrolet, GMC, Buick, Pontiac, Oldsmobile, Cadillac, Jeep, and Toyota applications, including Chevrolet Corvette, Chevrolet Caprice, GMC Yukon, and Pontiac Firebird fitments listed below.

This part cross-references 1S4840 and DS6 for the same application.

What It Helps Fix

• Headlights that will not switch between high and low beam
• Intermittent dimmer operation from worn internal contacts
• Electrical switching issues caused by heat or contact wear
• Dashboard dimmer control failure on column- or dash-mounted systems
• Loss of reliable beam selection in older GM and Jeep vehicles

Installation Notes and Fitment

Fits 1993-1997 Chevrolet P30, w/o Cab; 1993-1997 GMC P3500, w/o Cab; 1994-1996 Buick Roadmaster; 1991-1996 Chevrolet Caprice, excludes floor console; 1991-1996 Chevrolet Corsica; 1984-1996 Chevrolet Corvette; 1979-1982 Chevrolet Corvette; 1994-1996 Chevrolet Impala; 1992-1994 Chevrolet Blazer; 1988-1994 Chevrolet C1500; 1992-1994 Chevrolet C1500 Suburban; 1988-1994 Chevrolet C2500; 1992-1994 Chevrolet C2500 Suburban; 1988-1994 Chevrolet C3500; 1992-1994 Chevrolet Commercial Chassis, w/o Floor Console; 1988-1994 Chevrolet K1500; 1992-1994 Chevrolet K1500 Suburban; 1988-1994 Chevrolet K2500; 1992-1994 Chevrolet K2500 Suburban; 1988-1994 Chevrolet K3500; 1988-1994 GMC C1500; 1992-1994 GMC C1500 Suburban; 1988-1994 GMC C2500; 1992-1994 GMC C2500 Suburban; 1988-1994 GMC C3500; 1988-1994 GMC K1500; 1992-1994 GMC K1500 Suburban; 1988-1994 GMC K2500; 1992-1994 GMC K2500 Suburban; 1988-1994 GMC K3500; 1992-1994 GMC Yukon; 1986-1994 Pontiac Sunbird; 1993 Buick Roadmaster, Straight Socket; 1991-1992 Chevrolet P30; 1991-1992 GMC P3500; 1992 Oldsmobile Toronado; 1990 Oldsmobile Toronado; 1985-1992 Pontiac Grand Am; 1986-1991 Buick Skylark; 1988-1991 Oldsmobile Cutlass Calais; 1991 Oldsmobile Toronado, compatible with vehicles with tilt steering wheel; 1991 Pontiac Tempest; 1982-1990 Chevrolet Cavalier; 1982-1989 Buick Skyhawk; 1989 Oldsmobile Toronado, w/ Sport Steering Wheel; 1982-1988 Cadillac Cimarron, w/ Auto. Dimmer; 1982-1988 Oldsmobile Firenza; 1986-1988 Oldsmobile Toronado, w/o Console; 1984-1988 Pontiac Fiero; 1980-1987 Chevrolet Chevette; 1985-1987 Oldsmobile Calais; 1982-1987 Pontiac Acadian; 1981-1987 Pontiac T1000; 1984-1986 Jeep Cherokee, column mounted - fits vehicles with headlight dimmer switch located on the steering column; 1984-1985 Pontiac J2000 Sunbird; 1982-1983 Pontiac J2000; 1979-1981 Pontiac Firebird; 1979 Chevrolet Chevette, compatible with vehicles with tilt steering wheel; and 1977 Toyota Land Cruiser.

Before ordering, verify the connector shape, terminal count, mounting location, and any steering wheel or console notes against the original switch. The DS-77 is a direct replacement style part for vehicles using a female rectangular connector, 3 blade terminals, and 12-volt electrical architecture.

Quality Assurance

Standard Ignition builds this switch with durable materials and tests each unit for both mechanical action and electrical performance before release. The DS-77 is backed by the brand’s focus on service-grade electrical components for repair work.
