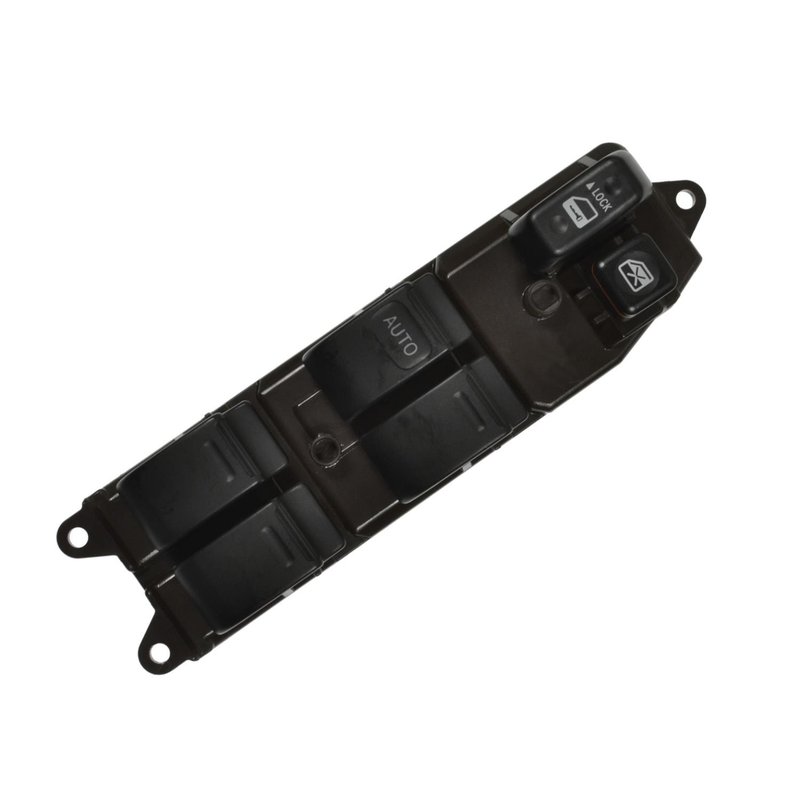

Standard Ignition DWS-1455 Door Window Switch - Front Left
| Brand | Standard Ignition 150.65237 |
|---|---|
| Banjo Bolt [cntrc] | No |
| Bracket Included | Yes |
| Bracket Material | Steel |
| Bracket Quantity | 1 |
| Clip Qty [cntrc] | 1 |
| Clip [cntrc] | Yes |
| Color | Black |
| DOT Approved | Yes |
| End 1 Fitting Material | Metal |
| End 1 Fitting Type | Banjo |
| End 1 Thread Size | 9.6mm |
| End 2 Fitting Material | Metal |
| End 2 Fitting Type | Female |
| End 2 Flare Type | Inverted |
| End 2 Thread Size | 3/8"-24 |
| Gasket Or Seal Included | Yes |
| Grommets Included | No |
| Mounting Hardware Included | No |
| Outer Sleeve Material | EPDM Rubber |
| Overall Length | 32.598 |
| Overall Length | 828.00 |
| Shield Included | No |
| Teflon Lined | No |
| Washer Part # [cntrc] | 117.99000 |
| Fits | —50 vehicles |
Bolt-on installation. Direct-fit switch with no modifications needed.
Illuminated design. Makes power window controls easy to see.
Master switch. Includes lock and unlock controls.
Cross-references Rostra Powertrain Controls 66-0074, SKP SK901705 and Standard Ignition DWS-1455 for the same application. See all 17.
Door Window Switch for Toyota, Scion, and Pontiac
Standard Ignition DWS-1455 is a driver-side power window switch built for select Toyota, Scion, and Pontiac applications. It combines window control, window lock, and lock/unlock functions in a single illuminated master switch for the front left door.
Key Features
- Fits front left driver positions on select 2002-2010 Toyota, Scion, and Pontiac models
- Master switch with 6 switch functions for power window control
- Illuminated design for easier operation in low-light conditions
- Includes lock/unlock and window lock controls
- 14-terminal, female connector with blade terminals
- 12V electrical design with bolt-on attachment method
- Plastic and metal construction with black and white finish
- Compatible with Toyota Camry, Corolla, Matrix, Sienna, Scion xA, Scion xB, Pontiac Vibe
Detailed Description
Standard Ignition DWS-1455 is a direct replacement door window switch for vehicles that use a front left master switch assembly. It is built with a rectangular female connector, 14 terminals, and a 12V electrical layout to match the original control setup on supported applications. This part number, DWS-1455, is commonly searched for Toyota Camry, Toyota Corolla, Toyota Matrix, Toyota Sienna, Scion xA, Scion xB, and Pontiac Vibe driver door repairs.
This switch controls the driver window and includes integrated lock/unlock and window lock functions. It is a practical replacement when the original switch has worn contacts, intermittent operation, or failed illumination. This part cross-references SKP SK901705 for the same application.
Common Uses
- Restores driver window operation when the original switch no longer responds
- Replaces a broken or sticking master switch on the front left door
- Fixes inoperative window lock or door lock/unlock switch functions
- Addresses intermittent electrical contact in the power window control panel
- Restores illuminated switch visibility at night
Installation Notes
Fits 2004-2010 Toyota Sienna, front left; 2006-2008 Pontiac Vibe, front left; 2003-2004 Pontiac Vibe, front left; 2006-2008 Toyota Corolla, front left; 2006-2008 Toyota Matrix, front left; 2005-2006 Scion xA, front left; 2005-2006 Scion xB, front left; 2005-2006 Toyota Camry, front left; 2005 Pontiac Vibe, front left; 2003-2005 Toyota Corolla, front left; 2005 Toyota Matrix, front left; 2004 Scion xA, front left; 2004 Scion xB, front left; 2002-2004 Toyota Camry, front left; 2002 Toyota Corolla, front left.
Verify connector style, terminal count, and vehicle build details before installation, especially for models with alternate-number or market-specific notes. Wiring harness and mounting hardware are not included.
Quality Assurance
Standard Ignition supplies this switch as an OE-style electrical replacement for supported applications. The DWS-1455 is built to match the original function and connector layout used on the listed vehicles.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Toyota | Sienna | — | Front Left | 14 Term.; Alternate Number |
| 2009 | Toyota | Sienna | — | Front Left | 14 Term.; Alternate Number |
| 2008 | Pontiac | Vibe | — | Front Left | — |
| 2008 | Toyota | Corolla | — | Front Left | Made in Japan |
| 2008 | Toyota | Corolla | — | Front Left | Built In U.S.; Alternate Number |
| 2008 | Toyota | Matrix | — | Front Left | Prior to purchase, ensure compatibility with vehicle's alternator for proper fit. |
| 2008 | Toyota | Sienna | — | Front Left | 14 Term.; Alternate Number |
| 2007 | Pontiac | Vibe | — | Front Left | — |
| 2007 | Toyota | Corolla | — | Front Left | Made in Japan |
| 2007 | Toyota | Corolla | — | Front Left | Built In U.S.; Alternate Number |
| 2007 | Toyota | Matrix | — | Front Left | Prior to purchase, ensure compatibility with vehicle's alternator for proper fit. |
| 2007 | Toyota | Sienna | — | Front Left | 14 Term.; Alternate Number |
| 2006 | Pontiac | Vibe | — | Front Left | — |
| 2006 | Scion | xA | — | Front Left | — |
| 2006 | Scion | xB | — | Front Left | — |
| 2006 | Toyota | Camry | — | Front Left | Made in Japan |
| 2006 | Toyota | Camry | — | Front Left | Built In U.S.; Alternate Number |
| 2006 | Toyota | Corolla | — | Front Left | Made in Japan |
| 2006 | Toyota | Corolla | — | Front Left | Built In U.S.; Alternate Number |
| 2006 | Toyota | Matrix | — | Front Left | Prior to purchase, ensure compatibility with vehicle's alternator for proper fit. |
| 2006 | Toyota | Sienna | — | Front Left | 14 Term.; Alternate Number |
| 2005 | Pontiac | Vibe | — | N/A | From VIN 5Z430718; Left |
| 2005 | Pontiac | Vibe | — | N/A | To VIN 5Z430717; Left |
| 2005 | Pontiac | Vibe | — | Front Left | From VIN 5Z430718 |
| 2005 | Pontiac | Vibe | — | Front Left | To VIN 5Z430717 |
| 2005 | Scion | xA | — | Front Left | — |
| 2005 | Scion | xB | — | Front Left | — |
| 2005 | Toyota | Camry | SE | Front Left | Made in Japan |
| 2005 | Toyota | Camry | LE | Front Left | Made in Japan |
| 2005 | Toyota | Camry | SE | Front Left | Built In U.S.; Alternate Number |
| 2005 | Toyota | Camry | LE | Front Left | Built In U.S.; Alternate Number |
| 2005 | Toyota | Corolla | — | Front Left | — |
| 2005 | Toyota | Matrix | — | Front Left | — |
| 2005 | Toyota | Sienna | — | Front Left | 14 Term.; Alternate Number |
| 2004 | Pontiac | Vibe | — | N/A | Fits left side door for controlling lock mechanism. |
| 2004 | Pontiac | Vibe | — | Front Left | — |
| 2004 | Scion | xA | — | Front Left | Prior to purchase, ensure compatibility with vehicle's alternator for proper fit. |
| 2004 | Scion | xB | — | Front Left | Prior to purchase, ensure compatibility with vehicle's alternator for proper fit. |
| 2004 | Toyota | Camry | SE | Front Left | Prior to purchase, ensure compatibility with vehicle's alternator for proper fit. |
| 2004 | Toyota | Camry | LE | Front Left | Prior to purchase, ensure compatibility with vehicle's alternator for proper fit. |
| 2004 | Toyota | Corolla | — | Front Left | — |
| 2004 | Toyota | Sienna | — | Front Left | 14 Term.; Alternate Number |
| 2003 | Pontiac | Vibe | — | N/A | Fits left side door for controlling lock mechanism. |
| 2003 | Pontiac | Vibe | — | Front Left | — |
| 2003 | Toyota | Camry | LE | Front Left | Prior to purchase, ensure compatibility with vehicle's alternator for proper fit. |
| 2003 | Toyota | Camry | SE | Front Left | Prior to purchase, ensure compatibility with vehicle's alternator for proper fit. |
| 2003 | Toyota | Corolla | — | Front Left | — |
| 2002 | Toyota | Camry | SE | Front Left | Prior to purchase, ensure compatibility with vehicle's alternator for proper fit. |
| 2002 | Toyota | Camry | LE | Front Left | Prior to purchase, ensure compatibility with vehicle's alternator for proper fit. |
| 2002 | Toyota | Corolla | — | Front Left | From 5/02 |
