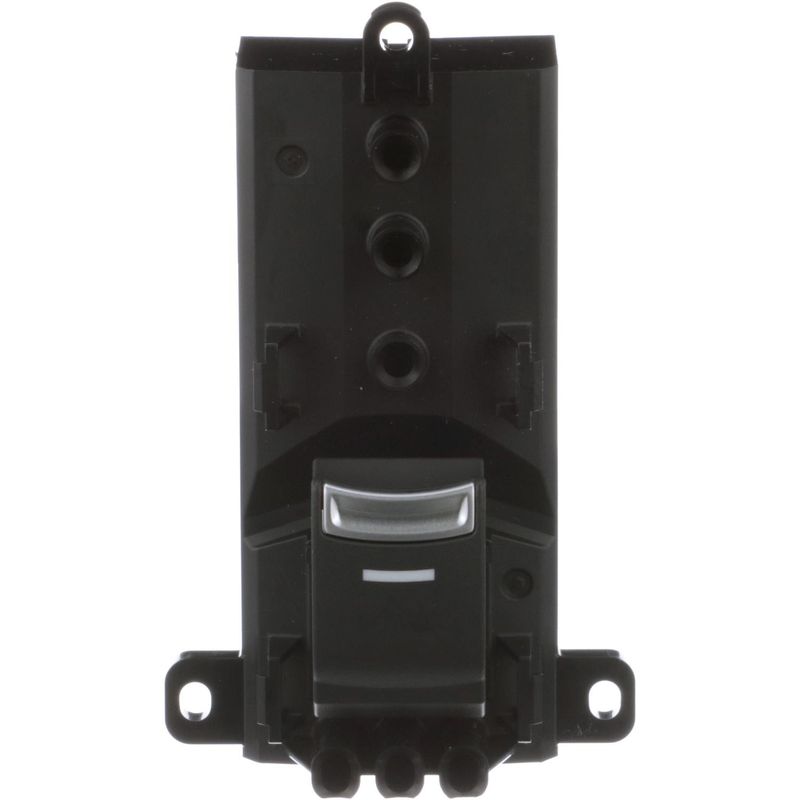

Standard Ignition DWS2253 Door Window Switch - Rear

Rear Window Switch for Acura RDX

Standard Ignition DWS2253 is a rear door window switch for the 2019-2023 Acura RDX. It is built with a rectangular 1-connector layout, 10 blade terminals, and a snap/bolt-in attachment method for a direct electrical control replacement.

Key Features

• Fits 2019-2023 Acura RDX, rear
• Standard Ignition DWS2253 door window switch
• 1 female connector with rectangular shape
• 10 male blade terminals
• Black, silver, and white plastic/metal finish
• Indicator markings included for switch identification
• Snap/bolt-in attachment method
• Wiring harness not included

Product Details

This Standard Ignition DWS2253 rear window switch is built for Acura RDX rear door applications from 2019 through 2023. It uses a female connector, male blade terminals, and a compact rectangular housing to match the electrical interface used in the vehicle. The switch functions as the control point for rear window operation and includes indicator markings for easier button identification. This part cross-references Honda OE 35770TJBA11 and aftermarket PA5146 for the same application.

Common Issues It Can Help Solve

• Rear window switch no longer responds when pressed
• Intermittent rear window operation
• Broken or worn switch contacts
• Damaged switch housing or failed button markings
• Electrical control loss at the rear door switch location

Installation Notes and Tips

Verify connector shape, terminal count, and rear-position fitment before installation. This DWS2253 uses a snap/bolt-in mounting style and does not include a wiring harness or mounting hardware. Confirm the vehicle is a 2019-2023 Acura RDX with rear door switch application before replacing the original unit.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for electrical and switch components. DWS2253 is built to match the listed connector and terminal configuration for the specified Acura RDX rear application.
