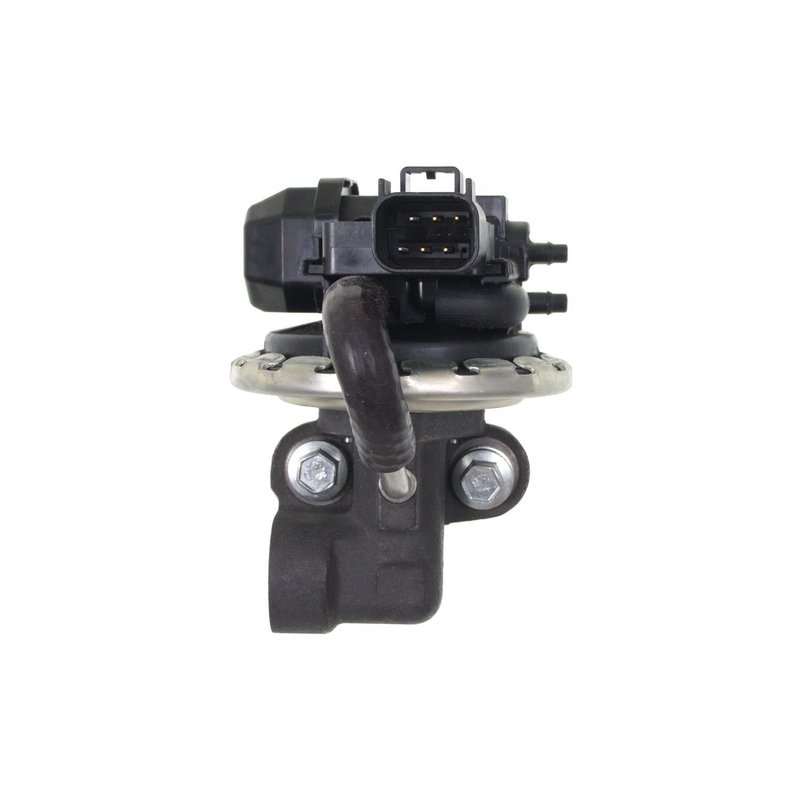

Standard Ignition EGV1059 EGR Valve

Overview of Standard Ignition EGR Valve for Ford Mustang

The Standard Ignition EGR Valve (Part Number EGV1059) is designed specifically for Ford Mustang models to help control exhaust gas recirculation efficiently. This electronic valve features a female rectangular connector and includes all necessary gaskets for a complete installation.

• Compatible with Ford Mustang vehicles
• Electronic exhaust gas recirculation (EGR) valve
• Female rectangular connector with 6 male blade terminals
• Includes 2 hose connectors and 2 bolt holes for secure mounting
• Gaskets included for proper sealing

Detailed Product Features and Specifications

The Standard Ignition EGR Valve EGV1059 is an electronically controlled component that regulates the flow of exhaust gases back into the intake manifold to reduce emissions. It features a female connector with a rectangular shape, housing six male blade terminals to ensure reliable electrical connections. The valve includes two hose connectors to accommodate the necessary vacuum or pressure lines and two bolt holes for secure attachment to the engine assembly. Gaskets are provided to maintain a proper seal and prevent leaks during operation.

Function and Common Applications

This EGR valve is used to manage exhaust gas recirculation in Ford Mustang engines, helping to reduce nitrogen oxide emissions and improve combustion efficiency. It addresses several common issues, including:

• Rough engine idle or stalling
• Increased emissions or failed emissions tests
• Check engine light related to EGR system faults
• Reduced fuel efficiency due to improper exhaust gas flow
• Engine knocking or pinging caused by excessive combustion temperatures

Installation Notes and Tips

When installing the Standard Ignition EGR Valve EGV1059 on a Ford Mustang, ensure the electrical connector is properly aligned with the female rectangular port and that all six blade terminals are securely connected. Use the included gaskets to prevent exhaust leaks and tighten the two mounting bolts to the manufacturer’s torque specifications. It is recommended to inspect related vacuum lines and clean the EGR passages before installation to ensure optimal performance.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The EGR Valve EGV1059 undergoes rigorous testing to ensure durability and reliable operation in Ford Mustang vehicles. This part includes a limited warranty covering defects in materials and workmanship under normal use conditions.
