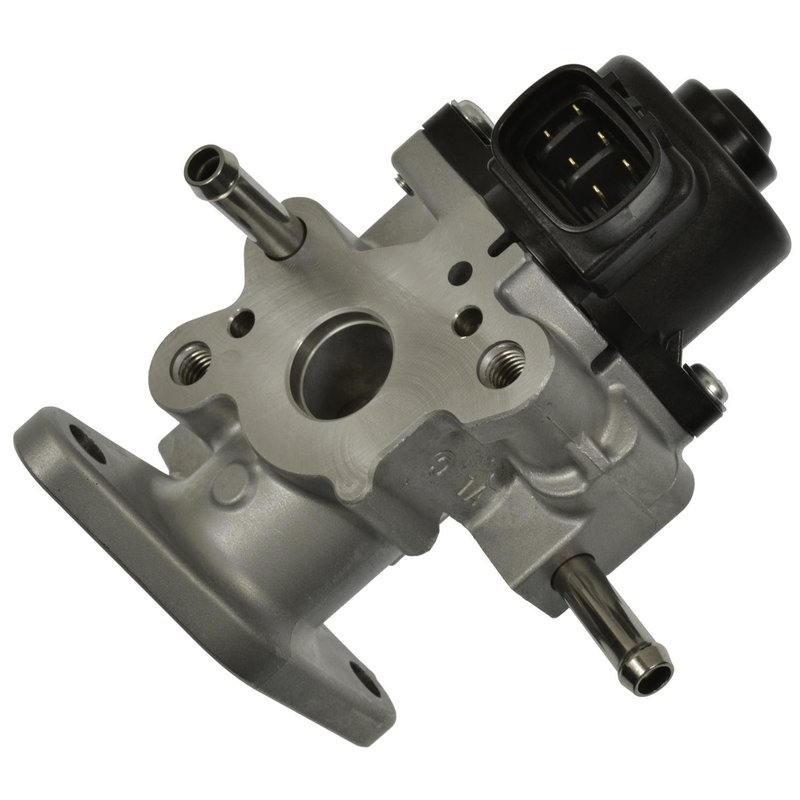

Standard Ignition EGV1253 EGR Valve

Standard Ignition EGR Valve for Prius C

The Standard Ignition EGV1253 is an electronic exhaust gas recirculation (EGR) valve built as an OEM replacement for select Toyota applications. It is engineered for 2012-2019 Toyota Prius C models and includes a gasket or seal for service replacement.

Key Features

• Electronic EGR valve for emission control service
• OEM replacement design for direct-fit replacement
• Bolt-mount installation with 4 bolt holes
• Male connector with square connector shape
• 6 blade terminals for the electrical connection
• 2 hose connectors and 2 vacuum ports
• Gasket or seal included

Detailed Description

The Standard Ignition EGV1253 is an exhaust gas recirculation valve used to regulate exhaust flow back into the intake system on select Toyota Prius C models. This electronic EGR valve is built for 2012-2019 Toyota Prius C applications and is a direct OEM replacement for emission control service. The EGV1253 cross-references Delphi EG10483 for the same application.

Common Issues It Can Address

• EGR-related fault codes
• Rough idle caused by restricted exhaust gas recirculation flow
• Emissions test failures tied to EGR system performance
• Driveability concerns related to a sticking or failing EGR valve
• Vacuum or electrical connection issues at the valve assembly

Installation Notes and Tips

Verify connector style, terminal count, bolt pattern, and hose/vacuum port layout before installation. The EGV1253 uses a male square connector, 6 blade terminals, 4 bolt holes, and 2 vacuum ports, so matching the original part configuration is important for proper fitment on your Toyota Prius C. A gasket or seal is included; mounting hardware is not included.

Quality Assurance

Standard Ignition supplies OEM replacement emission control components for service applications. The EGV1253 is built to match the original equipment style used on select Toyota Prius C models from 2012-2019.
