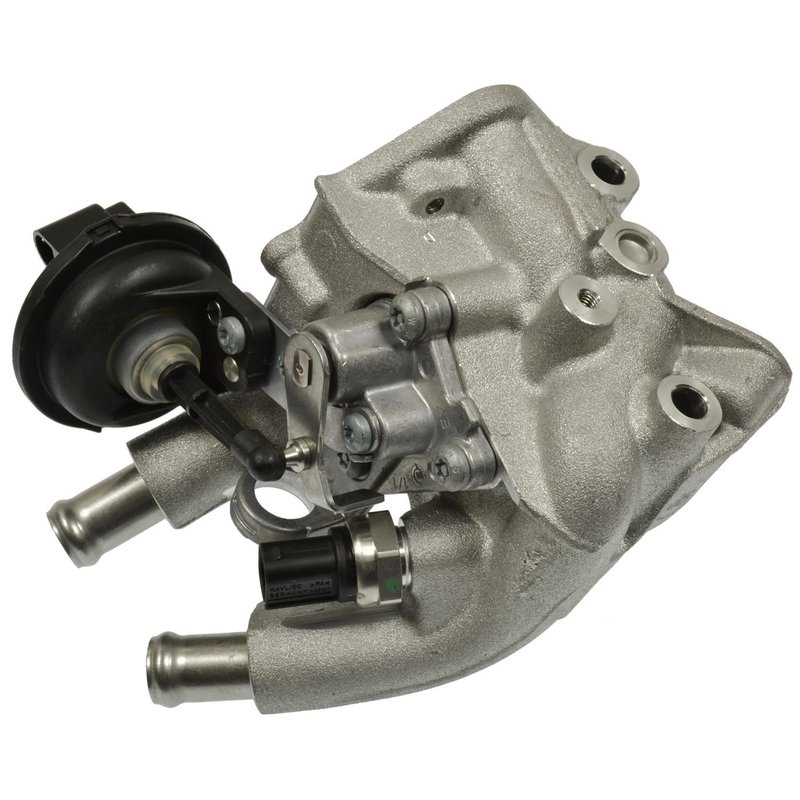

Standard Ignition EGV1255 EGR Valve

OE-Style EGR Valve for Sprinter Diesel Applications

Standard Ignition EGV1255 is a direct-fit exhaust gas recirculation valve for select Dodge Sprinter 2500 and Dodge Sprinter 3500 models. It is built to restore proper exhaust-gas routing into the intake stream, helping the engine manage combustion temperatures and emissions control performance.

With OE-matching mounting geometry and mechanical operation, this EGR valve supports a straightforward bolt-on replacement for the original unit. The Standard Ignition EGV1255 is a practical choice for 2007-2009 Dodge Sprinter 2500 and 2007-2009 Dodge Sprinter 3500 EGR-to-cooler service.

Key Features

• Direct-fit OE replacement for proper fit, form, and function
• Mechanical EGR valve design
• Stainless steel internal components for durability in harsh operating conditions
• Fully encapsulated copper windings for added protection
• Precision-machined OE-matching mounting slot for bolt-on installation
• Female rectangular connector with 1 connector interface
• 3 blade terminals and 2 hose connectors
• Bolt-mount design with 9 bolt holes

Detailed Description

Standard Ignition EGV1255 is engineered as an OE replacement EGR valve for emissions system repair on Dodge Sprinter diesel vans. It is designed to meter exhaust gases back into the inlet air charge, which helps reduce peak combustion temperature and maintain the intended operation of the EGR system. The mechanical design, OE-style connector layout, and mounting slot help the part align with the factory installation points on the vehicle.

This part cross-references Monroe Shocks & Struts (e.g., 4F2064, 70-6345) for the same application. Standard Ignition EGV1255 is a direct replacement option for technicians and owners servicing emissions-related drivability concerns on the Dodge Sprinter 2500 and Dodge Sprinter 3500.

What It Helps Address

• EGR flow faults related to a sticking or worn valve
• Emissions system warning lights tied to EGR performance
• Rough idle or drivability issues caused by improper exhaust-gas recirculation
• Excess combustion temperatures from incorrect EGR operation
• Fitment problems when replacing the original valve on Sprinter diesel applications

Installation Notes and Tips

Fits 2007-2009 Dodge Sprinter 2500, EGR to Cooler. Fits 2007-2009 Dodge Sprinter 3500, EGR to Cooler. Verify connector style, terminal layout, hose connections, and bolt-mount pattern before installation. This unit does not include gaskets, so reuse or replace sealing components as required by the service procedure.

Quality Assurance

Standard Ignition manufactures automotive aftermarket components with in-process quality control from production through final inspection. The EGV1255 uses stainless steel internal parts and encapsulated copper windings to help withstand demanding operating conditions and support long-term service life.
