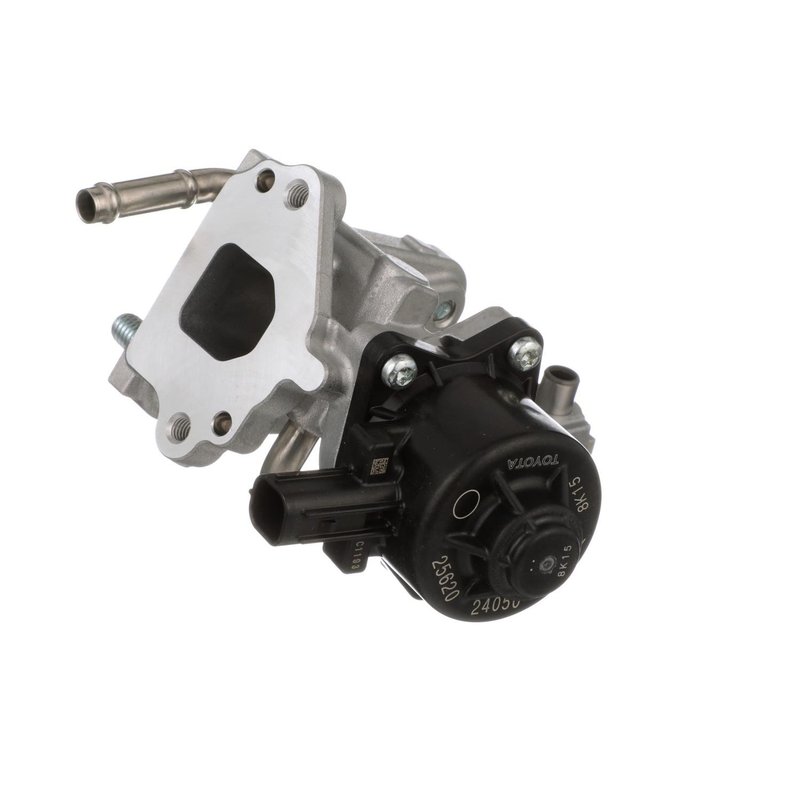

Standard Ignition EGV1302 Exhaust Gas Recirculation (EGR) Valve

Standard Ignition EGV1302 EGR Valve

The Standard Ignition EGV1302 is an exhaust gas recirculation valve for select Toyota applications. It is built with a square female connector, 4-pin male terminals, and a bolt-mount design with four bolt holes for a direct replacement-style fit.

Compatible with Toyota Camry, Corolla, Corolla Cross, Grand Highlander, Highlander, RAV4, and Sienna applications, this EGR valve supports emissions system service on a range of late-model Toyota vehicles. The EGV1302 is a practical choice when replacing a worn or malfunctioning EGR valve on a Toyota Camry or Toyota Corolla.

Key Features

• Exhaust Gas Recirculation (EGR) valve for emission control service
• Standard Ignition EGV1302 part number for identification and ordering
• Square female connector with 1 connector interface
• 4 male pin terminals for electrical connection
• Bolt-mount design with 4 bolt holes
• 2 hose connectors for system routing
• Gasket or seal not included
• Mounting hardware not included

Detailed Description

The Standard Ignition EGV1302 is an EGR valve used in emission control systems to regulate exhaust gas recirculation on supported Toyota vehicles. It features a bolt-mount configuration, a square female connector, and pin-style terminals for a factory-style electrical interface. This part cross-references Delphi EG10775 for the same application.

Fitment includes 2022-2025 Toyota Camry, 2024-2025 Toyota Grand Highlander, 2019-2024 Toyota Corolla, 2022-2024 Toyota Corolla Cross, 2023-2024 Toyota Highlander, 2023-2024 Toyota RAV4, 2022-2024 Toyota Sienna, and 2021 Toyota Camry from 10/2020. For Toyota Corolla and Toyota RAV4 service, the EGV1302 provides a direct replacement option for the listed applications.

What It Helps Address

• Check engine light related to EGR system faults
• Rough idle caused by improper exhaust gas recirculation
• Emissions test failure tied to EGR valve performance
• Driveability issues from restricted or sticking EGR operation
• Vacuum or electrical connection concerns at the EGR valve

Installation Notes

• Verify connector shape, terminal count, and hose connection layout before installation
• Inspect the mounting surface and replace any worn sealing components as needed, since gasket or seal is not included
• Confirm vehicle build date for the 2021 Toyota Camry application, which applies from 10/2020
• Match the part number EGV1302 to the vehicle’s emissions system requirements before service

Quality Assurance

Standard Ignition is a recognized aftermarket brand for replacement engine management and emissions components. The EGV1302 is cataloged for specific Toyota fitments to support accurate parts selection for emissions system repair.
