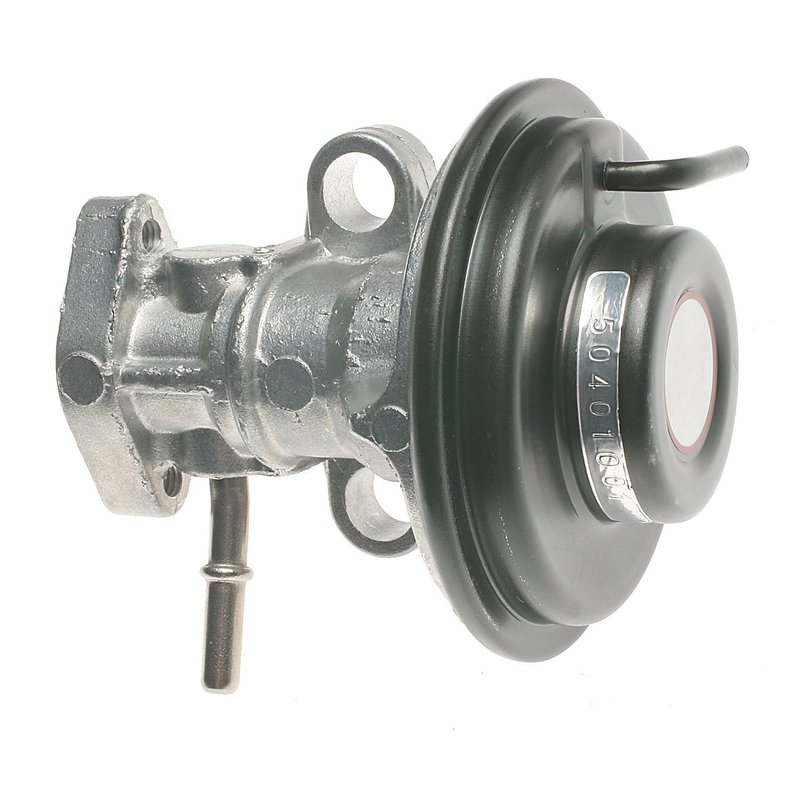

Standard Ignition EGV559 EGR Valve

Standard Ignition EGV559 EGR Valve

Standard Ignition EGV559 is a mechanical exhaust gas recirculation valve for select Toyota applications. It is built for direct replacement service on 1997-2001 Toyota Camry, 1999-2001 Toyota Solara, and 1998-2000 Toyota RAV4 models with the listed fitment.

Key Features

• Mechanical EGR valve design for vacuum-controlled exhaust gas recirculation systems
• Bolt-mount installation with 2 bolt holes
• 2 vacuum ports and 2 hose connectors
• Gasket or seal included for service replacement
• Standard Ignition EGV559 cross-references select aftermarket numbers for the same application

Detailed Description

This exhaust gas recirculation valve helps regulate exhaust flow back into the intake stream under the proper operating conditions. Standard Ignition EGV559 is specified for Toyota Camry, Toyota Solara, and Toyota RAV4 applications that use a mechanical, vacuum-operated EGR setup. The bolt-mount design, dual vacuum ports, and included gasket support a direct-fit replacement approach for emissions service work.

This part cross-references 2-26227 and 4F1625 for the same application. Standard Ignition EGV559 is a practical replacement choice when servicing an EGR system on a 1997-2001 Toyota Camry, 1999-2001 Toyota Solara, or 1998-2000 Toyota RAV4.

Common Issues It Can Address

• EGR-related diagnostic trouble codes
• Rough idle caused by improper exhaust gas recirculation flow
• Emissions test failure tied to EGR system malfunction
• Sticking or restricted valve operation
• Vacuum leak concerns at the EGR valve connection points

Installation Notes and Tips

Verify the vehicle uses a mechanical, vacuum-operated EGR valve with the same bolt-mount pattern, 2 bolt holes, 2 vacuum ports, and 2 hose connectors before installation. Inspect the mating surfaces and replace any damaged vacuum hoses during service. The included gasket or seal should be used to help ensure a proper seal at the mounting surface. Standard Ignition EGV559 is listed for 1997-2001 Toyota Camry, 1999-2001 Toyota Solara, and 1998-2000 Toyota RAV4 applications.

Quality Assurance

Standard Ignition is a recognized name in replacement ignition and emissions components, and EGV559 is cataloged with direct interchange references for application matching. Confirm fitment against the vehicle’s emissions configuration before ordering.
